Nukeproof - MTB Bicycle - Tracker 297 FS Sport Deore 1x12 TRF01As
Product is backordered and will ship as soon as it is back in stock.
Overview
Take on the trails with the Nukeproof Tracker FS, a full-suspension mountain bike built for confident handling, reliable performance, and offroad adventures. Featuring a durable aluminum frame, RockShox suspension, and a Shimano Deore 12-speed drivetrain, the Tracker FS delivers a capable riding experience across varied terrain.
Key Features
- Aluminum Frame: Built with a durable aluminum frame that provides strength, stability, and reliable performance for off-road riding.
- RockShox Suspension: Domain Gold R fork with 170mm travel and Deluxe Select rear shock.
- Shimano Deore 12-Speed: Wide-range 10-51T cassette for versatile trail riding.
- SRAM DB4 Brakes: Reliable braking control.
- Schwalbe Magic Mary Tires: 2.4" tires for off-road traction.
- Dropper Seatpost: X-Fusion Manic LC 150mm.
- Color: Black/Bronze with glossy finish.
Specifications
General
Brand: Nukeproof
Model: Tracker FS
Item Number: SBITRFNKP002
EAN: 5400928761734
Warranty: Lifetime transferable warranty after registration within 30 days of purchase, with required annual servicing at an authorized dealer.
Frame & Fork
Fork: RockShox Domain Gold R 29", 44mm Offset, 170mm
Rear Shock: RockShox Deluxe Select 230x62.5
Material: Aluminum
Size: M
Drivetrain
Groupset: Shimano Deore M6200 12-Speed
Cassette: Shimano Deore M6100 Hyperglide+ 12-Speed, 10-51T
Rear Derailleur: Shimano Deore M6100, 12-Speed, Max 51T
Pedals: Not Included
Brake Type: Post Mount
Front Brake: SRAM DB4 Brakeset
Rear Brake: SRAM DB4 Brakeset
Paint
Color: Black/Bronze
Design Code: trf01as
Paint Finish: Glossy
Wheels & Tyres
Tyres: Schwalbe Magic Mary 2.4" Standard Soft
Cockpit & Saddle
Handlebar: Nukeproof Electron Handlebar, 780mm Wide, 25mm Rise
Stem: Tracker Alloy, 40mm Length, 31.8mm Clamp, 7° Rise
Seatpost: X-Fusion Manic LC 150mm, 31.6mm
Warranty & Important Information
Lifetime transferable warranty upon registration within 30 days of purchase, subject to required annual servicing at an authorized dealer and manufacturer warranty terms.
Please Note: Pedals are not included. Product specifications may be subject to manufacturer updates.
Frame Geometry
Nukeproof Tracker FS – Frame Geometry
Frame geometry measurements are in millimeters unless otherwise indicated.
| Geometry | S 297 |
M 297 |
L 297 |
XL 297 |
XXL 297 |
|---|---|---|---|---|---|
| A – Reach | 430 | 455 | 475 | 495 | 515 |
| B – Stack | 639 | 639 | 639 | 648 | 657 |
| C – Effective Top Tube | 571.7 | 596.7 | 610.9 | 633 | 654.7 |
| D – Seat Tube Length | 380 | 410 | 440 | 460 | 480 |
| E – Effective Seat Tube Angle | 77.5° | 77.5° | 78° | 78° | 78° |
| F – Actual Seat Tube Angle | 71° | 71° | 71.5° | 71.5° | 71.5° |
| G – Saddle Height for Saddle Offset | 650 | 700 | 750 | 800 | 850 |
| H – Saddle Offset at Saddle Height | 142.22 | 158.59 | 166.66 | 181.58 | 196.49 |
| I – Head Tube Length | 120 | 120 | 120 | 130 | 140 |
| J – Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| K – Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| L – Front Centre | 757.7 | 792.7 | 812.7 | 837 | 861.2 |
| M – Wheelbase | 1192.7 | 1227.7 | 1247.7 | 1272 | 1296.2 |
| N – Bottom Bracket Drop | 30 / 10 | 30 / 10 | 30 / 10 | 30 / 10 | 30 / 10 |
| O – Bottom Bracket Height | 345 | 345 | 345 | 345 | 345 |
| P – Stand Over Height | 721.75 | 720.28 | 721.3 | 720.73 / 730.78 |
726.77 / 736.07 |
| Q – Fork Travel | 170 | 170 | 170 | 170 | 170 |
| R – Trail | 132.33 | 132.33 | 132.33 | 132.33 | 132.33 |
| S – Fork Offset | 44 | 44 | 44 | 44 | 44 |
| T – Axle to Crown | 582 | 582 | 582 | 582 | 582 |
| U – Maximum Seatpost Insert | 250 | 250 | 255 | 275 | 300 |
Geometry measurements are provided for reference. Actual fit may vary based on rider proportions and preferences.

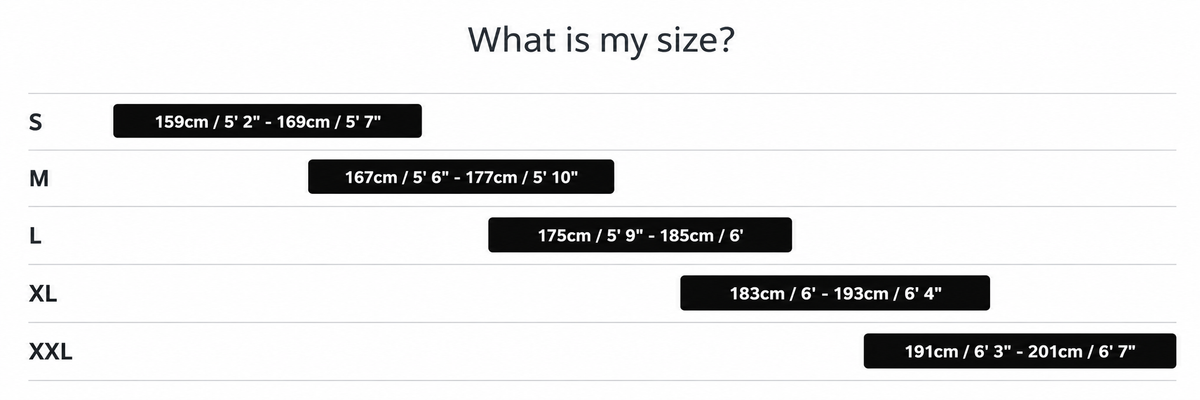

Size Guide
Rider Height Guide
Recommended rider height ranges by frame size.
