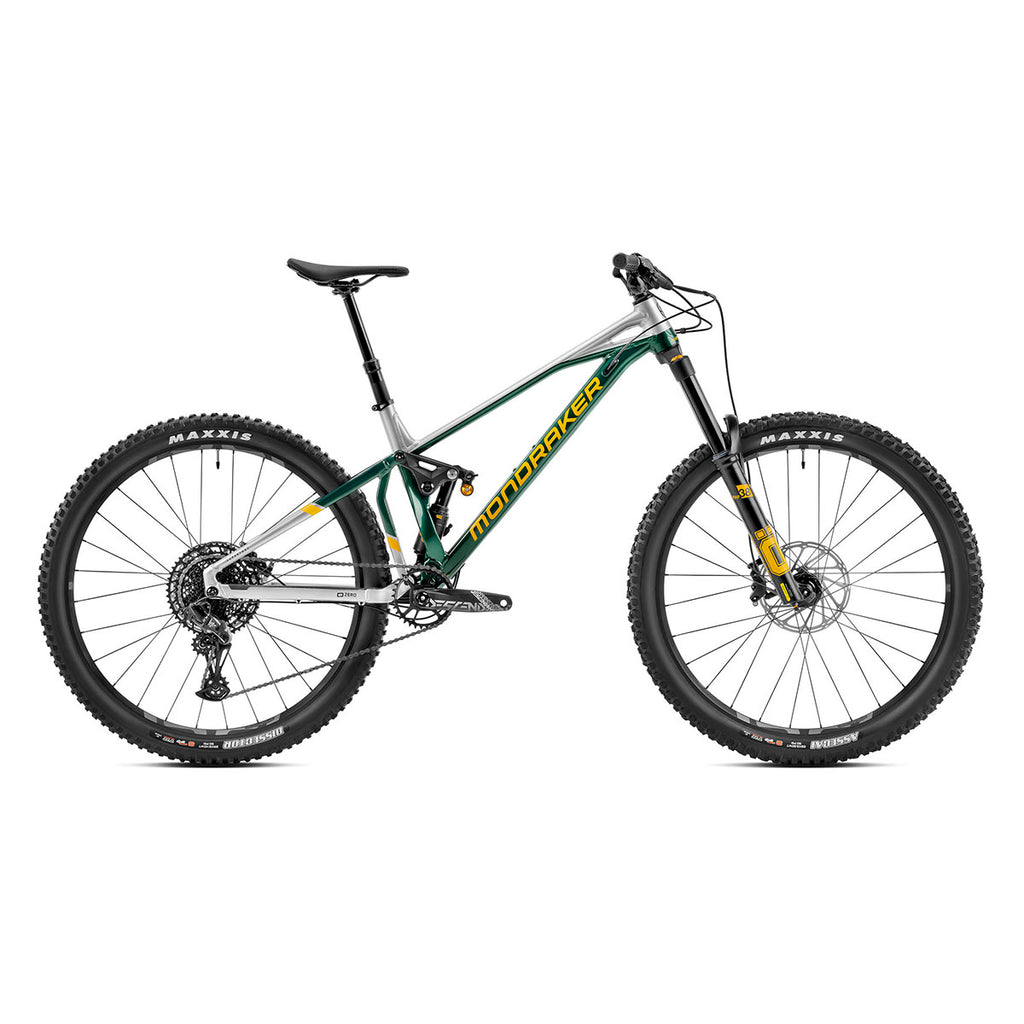

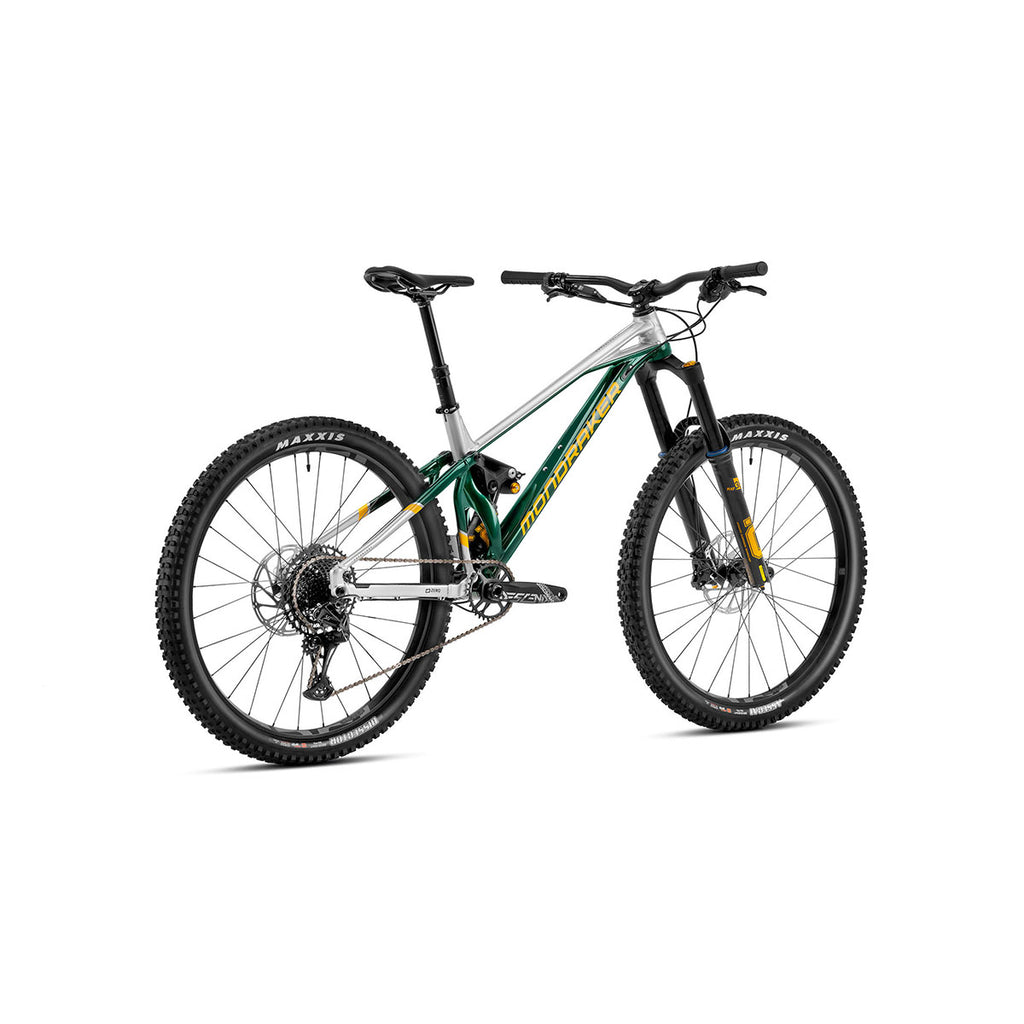

Mondraker - SUPERFOXY R Bike - Green/Silver/Yellow (SUPER ENDURO)

MOND-B-Sfoxy-R-Green23-M

  • Sale
  • Regular price $6,699.00
  • 1 available
ZEITBIKE means FREE SHIPPING on orders over $99 😁👍🏼




NOTE:
For inquiries, please call us at 805-850-3200.

DESCRIPTION

Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Colors: Gloss British Racing Green / Racing Silver / Yellow

Experience the Superfoxy R difference in enduro, trail, uphill, and downhill! This top-end mountain bike boasts more travel and a sleeky frame for the gnarliest, hardcore trails.

Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.

The durable stealth alloy frame helps with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.

Superfoxy R features telescopic Seatpost internal routing and enduro sealed bearings to withstand the rigors of demanding trails. Superfoxy R is loaded with features such as super-boost rear axle and dedicated 1X drivetrain for better traction and momentum.

Superfoxy goes above and beyond with more exclusive features like BSA bottom bracket for improved brake efficiency and noise control. One-piece monoblock upper link offers better lateral and torsional stiffness to reduce lateral stress on the shock action.

Superfoxy R sports high-performance rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME

SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05

SIZES

S: 380mm / M: 420mm / L: 470mm / XL: 510mm

REAR SHOCK

Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

SHOCK SETTINGS

C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)

FORK

Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

HEADSET

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°,bottom 51.9x40x8x45°x45°

STEM

Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore

HANDLEBAR

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep,31.8mm barbore

GRIPS

Onoff Twin, 1lock-on, 135mm

SEATPOST

Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size:425x150mm, XL size: 465x170mm

SADDLE

SDG BEL-AIR 3.0, LPU foam, steel rails

FRONT BRAKE

Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

REAR BRAKE

Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

BRAKE LEVER

Sram DB8, tool-free reach adjust

RIMS

e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

SPOKES

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

FRONT HUB

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

REAR HUB

e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub

FRONT TIRE

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

REAR TIRE

Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

CRANKSET

Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm

RINGS

32T, CNC-machined alloy, X-SYNC 2

BOTTOM BRACKET

Sram DUB BSA, sealed bearings, 73mm

PEDALS

-

CHAIN

Sram SX Eagle, 12s, Powerlock

FRONT DERAILLEUR

-

REAR DERAILLEUR

Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

SHIFT LEVERS

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

CASSETTE

Sram XG-1230, 11-50T, 12s

MOTOR

-

BATTERY

-

DISPLAY

-

DERAILLEUR HANGER

Mondraker M068

OTHERS

-

WEIGHT

17.1kg




GEOMETRY

MEASUREMENTS / GEOMETRY (Click on image to expand)

Mondraker Superfoxy 2021 Geometry

Size

S

M

L

XL

A

Seat Tube Length

380 mm

420 mm

470 mm

510 mm

B

Top Tube Length

605 mm

625 mm

650 mm

670 mm

C

Bottom Bracket Drop

-20 mm

-20 mm

-20 mm

-20

D

Bottom Bracket Height

350 mm

350 mm

350 mm

350 mm

E

Chainstay Length

445 mm

445 mm

445 mm

445 mm

F

Seat Tube Angle, Actual

71°

71°

71°

71°

G

Seat Tube Angle, Effective

76°

76°

76°

76°

H

Head Tube Angle

65°

65°

65°

65°

I

Fork Offset

44 mm

44 mm

44 mm

44 mm

J

Wheelbase

1224 mm

1245 mm

1273 mm

1293 mm

K

Head Tube Length

100 mm

110 mm

130 mm

130 mm

L

Reach

450 mm

470 mm

490 mm

510 mm

M

Stack

621 mm

621 mm

639 mm

639 mm
