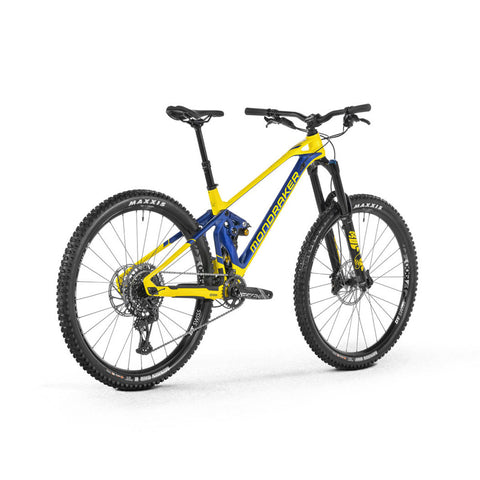

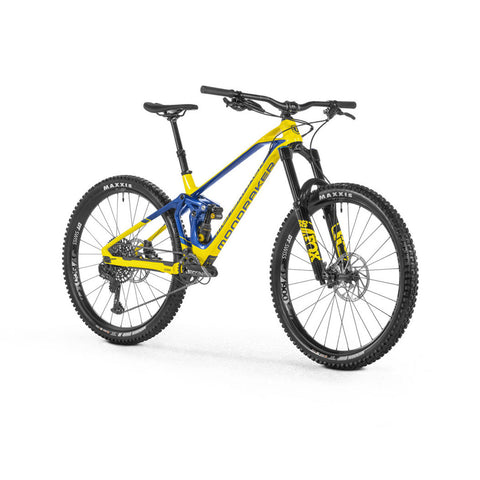

Mondraker - SUPERFOXY CARBON R Bike in Yellow / Blue (SUPER ENDURO | 2021)

MOND-B-Sfoxy-CarbR-Yellow21-S

  • Sale
  • Regular price $7,299.00
  • Will be in stock after


PLEASE CALL US AT 805-850-3200 TO PLACE YOUR ORDER


NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.

DESCRIPTION

Experience the Superfoxy Carbon R difference in enduro, trail, uphill, and downhill! This top-end mountain bike boasts more travel and ultralight carbon frame for the gnarliest, hardcore trails.

Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.

The proprietary stealth carbon airframe helps with resistance and mobility for better speed and performance. Stealth Air design delivers aero-style profile, maximum stiffness, lightest weight, and superior compliance ratio, extremely important for mtb riders. With the increased stiffness and improved pedaling efficiency, Superfoxy Carbon R becomes the bike of choice for technical climbs. Stealth air construction optimizes benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.

HHG Internal Cable Routing helps with a minimalistic, clean design with noise control features. Superfoxy 2021 features super-boost rear axle and enduro sealed bearings to withstand the rigors of demanding trails. Superfoxy Carbon R is loaded with features such as shock mudguards and dedicated 1X drivetrain for better traction and momentum.

Superfoxy goes above and beyond with more exclusive features like custom frame protectors to soak up vibrations and noise for quieter rides and BSA bottom bracket for improved brake efficiency and noise control. One-piece full-carbon upper link offers better lateral and torsional stiffness to reduce lateral stress on the shock action.

Superfoxy Carbon R sports high-performance rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.

Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Colors: Gloss Yellow / Gloss Deep Blue

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME

SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry,Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSAbottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealedbearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included

SIZES

S: 380mm / M: 420mm / L: 470mm / XL: 510mm

REAR SHOCK

Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speedcompression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

SHOCK SETTINGS

Medium compression, medium rebound, air volume

FORK

Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15x110mm axle,offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

HEADSET

Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°,bottom 51.9x40x8x45°x45°

STEM

Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore

HANDLEBAR

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep,31.8mm barbore

GRIPS

Onoff Desert, 1lock-on, 135mm, sizes: S/M L/XL

SEATPOST

Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size:425x150mm, XL size: 465x170mm

SADDLE

SDG BEL-AIR 3.0, LPU foam, steel rails

FRONT BRAKE

Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backedmetal sintered pads

REAR BRAKE

Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backedmetal sintered pads

BRAKE LEVER

Sram Code R, tool-free reach adjust

RIMS

DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes

SPOKES

DT Champion, straightpull

FRONT HUB

DT 370, Boost 15x110mm, IS 6 bolts

REAR HUB

DT 370, SuperBoost 12x157mm, 3 Pawl system, IS 6 bolts, XD freehub

FRONT TIRE

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI,folding bead

REAR TIRE

Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI,folding bead

CRANKSET

Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm

RINGS

32T, CNC-machined alloy, X-SYNC 2

BOTTOM BRACKET

Sram DUB BSA, sealed bearings, 73mm

PEDALS

-

CHAIN

Sram NX Eagle, 12s, Powerlock

FRONT DERAILLEUR

-

REAR DERAILLEUR

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

SHIFT LEVERS

Sram Trigger GX Eagle, 12s, X-Actuation 1:1

CASSETTE

Sram XG-1275, 10-52T, 12s

MOTOR

-

BATTERY

-

DISPLAY

-

DERAILLEUR HANGER

Mondraker M071

OTHERS

*Optional geometry kit: 0° headset cups and chainstay adaptor for 450mm CS length

WEIGHT

-



GEOMETRY

MEASUREMENTS / GEOMETRY (Click on image to expand)

Mondraker Superfoxy Carbon R 2021

Size

S

M

L

XL

A

Seat Tube Length

380 mm

420 mm

470 mm

510 mm

B

Top Tube Length

603 mm

626 mm

651 mm

675 mm

C

Bottom Bracket Drop

-14 mm

-14 mm

-14 mm

-14 mm

D

Bottom Bracket Height

357 mm

357 mm

357 mm

357 mm

E

Chainstay Length

440 - 450 mm

440 - 450 mm

440 - 450 mm

440 - 450 mm

F

Seat Tube Angle, Actual

70.5°

70.5°

70.5°

70.5°

G

Seat Tube Angle, Effective

75.5°

75.5°

75.5°

75.5°

H

Head Tube Angle

65°

65°

65°

65°

I

Fork Offset

44 mm

44 mm

44 mm

44 mm

J

Wheelbase

1197 mm

1220 mm

1245 mm

1272 mm

K

Head Tube Length

90 mm

100 mm

115 mm

130 mm

L

Reach

450 mm

470 mm

490 mm

510 mm

M

Stack

605 mm

614 mm

628 mm

642 mm
