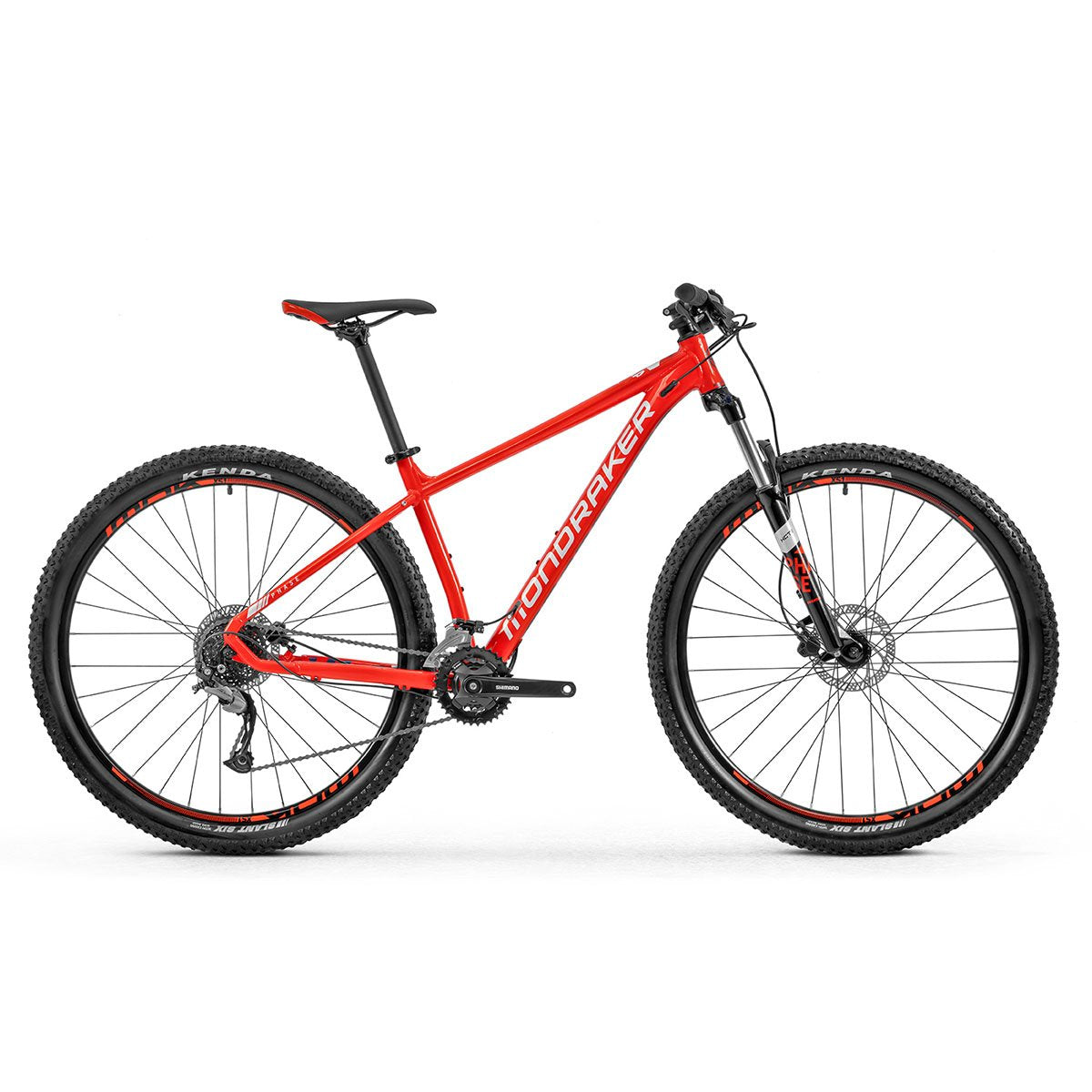

Mondraker - PHASE 29 (XC SPORT)

MOND-B-Phase-29-Red20-S

  • Sale
  • Regular price $999.00
  • Will be in stock after


PLEASE CALL US AT 805-850-3200 TO PLACE YOUR ORDER


DESCRIPTION

NOTE:

Pre-orders only. Subject approval to availability and delivery times.

Please call us for availability and all other information at 805-850-3400.


Experience the Phase 29 difference in Cross-country rides and marathons! These stylish and modern XC bikes with race geometry, are also great for urban city riders and for those aspiring to enter the world of mountain biking.


Durable custolite alloy frame and HHG internal routing help with resistance and mobility for better speed and performance. Phase 29 is smartly designed with an internal headset and replaceable hanger.


XC Racers will love the safety and confidence offered by Mondraker’s avant geometry design. This race geometry helps with improved overall control, safety on steep chutes, high-speed confidence, uphill precision, and stability in tough and technical terrains.


HHG Internal Cable Routing helps with a minimalistic, clean design. Phase 29 bikes are race-ready with enhanced traction and momentum. Phase 29 has a high-performance suspension system that helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails.


Phase 29 XC Bike sports high-performance front and rear derailleurs and wide 29” tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.


Sizes: S: 400mm / M: 440mm / L: 480mm / XL: 520mm

Colors: Flame Red / White / Deep Blue

TECH SPECS

DOWNLOAD USER MANUALS

COMPONENTS / TECHNICAL SPECIFICATIONS

Frame
Phase 29 6061 Custolite Alloy triple butted, Avant Geometry, internal headset, HHG internal cable routing, replaceable hanger, BSA bottom bracket, QR 9mm rear axle

Sizes
S: 400mm / M: 440mm / L: 480mm / XL: 520mm

Rear shock
/

Shock setting
/

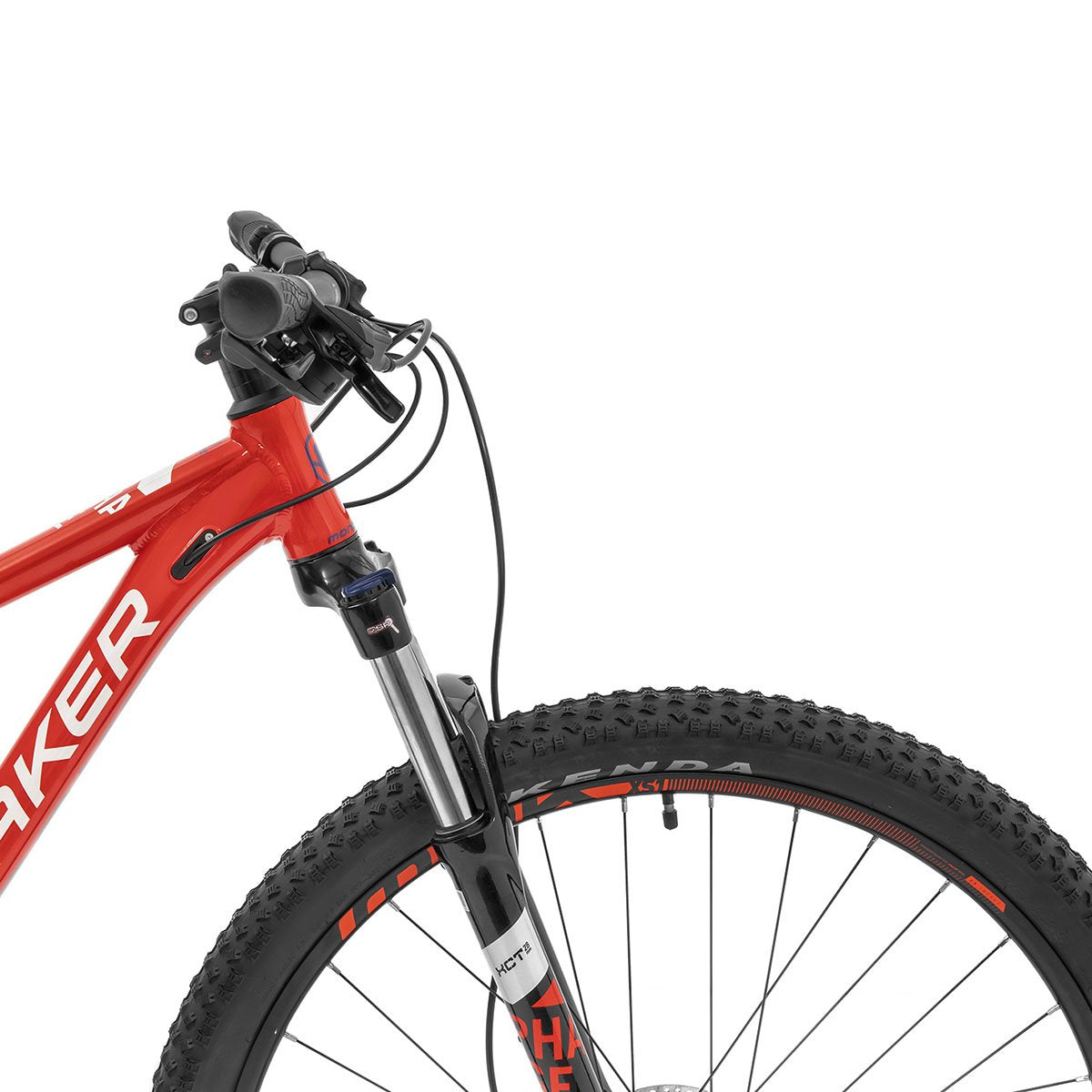

Fork
Suntour XCT ATB RL 29 100mm, 28mm steel stanchions, 1-1/8” steerer tube, 9mm QR axle. Settings: spring preload, lockout

Headset
CH-9280, Internal ZS, 44mm external diameter cup

Stem
MDK XC, alloy, 31.8mm barbore, rise: +/-7°, length: sizes S/M: 60mm, size L: 75mm, size XL: 90mm

Handlebar
MDK XC 0.2, 6061 alloy, rise: 4.8mm, width: 720mm, 9° backsweep, 0° upsweep, 31.8mm barbore

Grips
Onoff Diamond, 130mm

Seatpost
MDK XC, 6061 T6 alloy, diameter 27.2mm, length 350mm, offset 15mm

Saddle
Mondraker Phase 29 design

Front brake
Tektro HDM275 hydraulic, 160mm IS 6 bolts rotor

Rear brake
Tektro HDM275 hydraulic, 160mm IS 6 bolts rotor

Brake lever
Tektro HDM275 hydraulic

Rim
MDK-XS1 29, 24mm external width, 32 spokes

Spokes
CN round stainless steel

Front hub
MDK DC20, 9x100mm QR axle, cup & cone ball bearings, IS 6 bolts

Rear hub
MDK DC22, 9x135mm QR axle, cup & cone ball bearings, IS 6 bolts

Front tyre
Kenda Slant Six 29x2.35 single compound, 30TPI, wire bead

Rear tyre
Kenda Slant Six 29x2.35 single compound, 30TPI, wire bead

Crank
Shimano MT101, 2x9s, S/M size: 170mm, L/XL size: 175mm

Rings
36T alloy / 22T steel

Bottom bracket
CH-52

Pedals
Wellgo LU-895DU

Chain
KMC Z99, 9s

Front  derailleur
Shimano Alivio FD-M4000, side swing, front pull

Rear derailleur
Shimano Acera RD-M3000, Shadow, SGS, 9s

Lever
Shimano Altus SL-M2010, 2x9s

Sprocket
SunRace CSMS90, 11-34T, 9s

Hanger
Mondraker M072

Others
/

Weight without pedals
14.7 kg


MEASUREMENTS


MEASUREMENTS / GEOMETRY

  Frame size S M L XL
A Seat Tube Lenght 400mm 440mm 480mm 520mm
B Top Tube Lenght 575mm 600mm 620mm 640mm
C Bottom Bracket Drop -65mm -65mm -65mm -65mm
D Bottom Bracket Height 300mm 300mm 300mm 300mm
E Chainstay Lenght 445mm 445mm 445mm 445mm
F Seat Tube Angle, Actual 72° 72° 72° 72°
G Seat Tube Angle, Effective 73.5° 73.5° 73.5° 73.5°
H Head Tube Angle 69.5° 69.5° 69.5° 69.5°
I Fork Offset 46mm 46mm 46mm 46mm
J Wheelbase 1087mm 1112mm 1133mm 1154mm
K Head Tube Lenght 100mm 100mm 110mm 125mm
L Reach 392mm 417mm 434mm 450mm
M Stack 616mm 616mm 625mm 639mm
