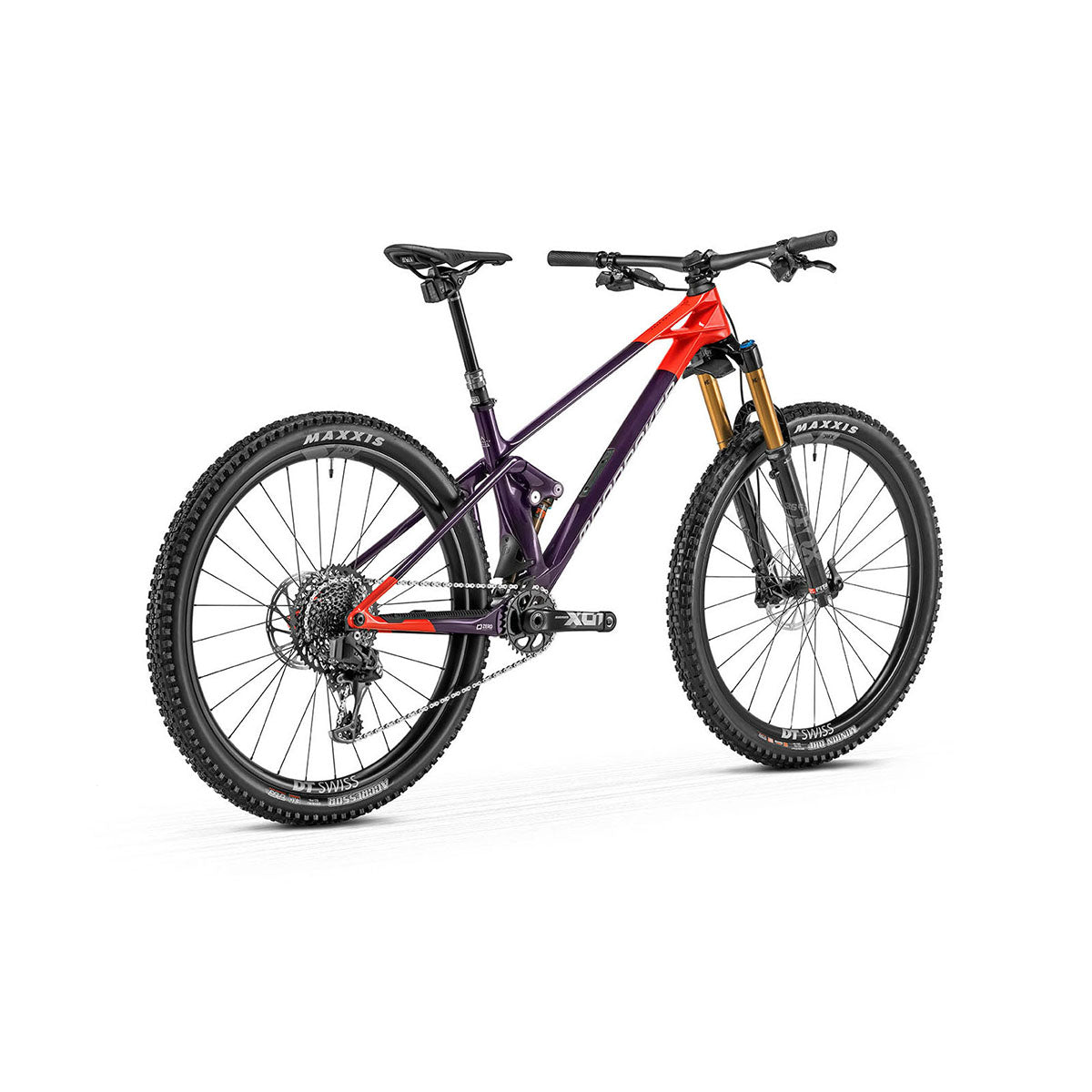

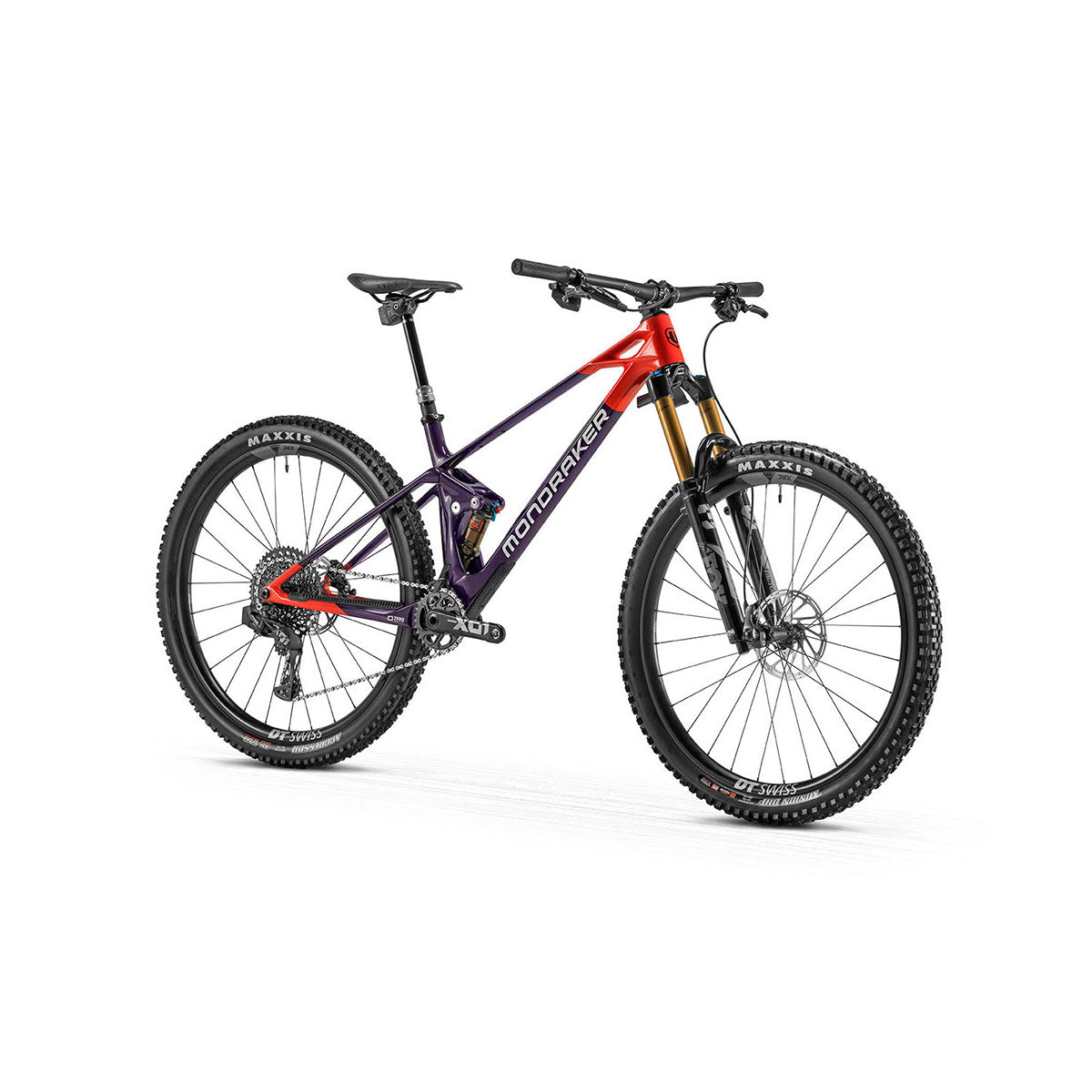

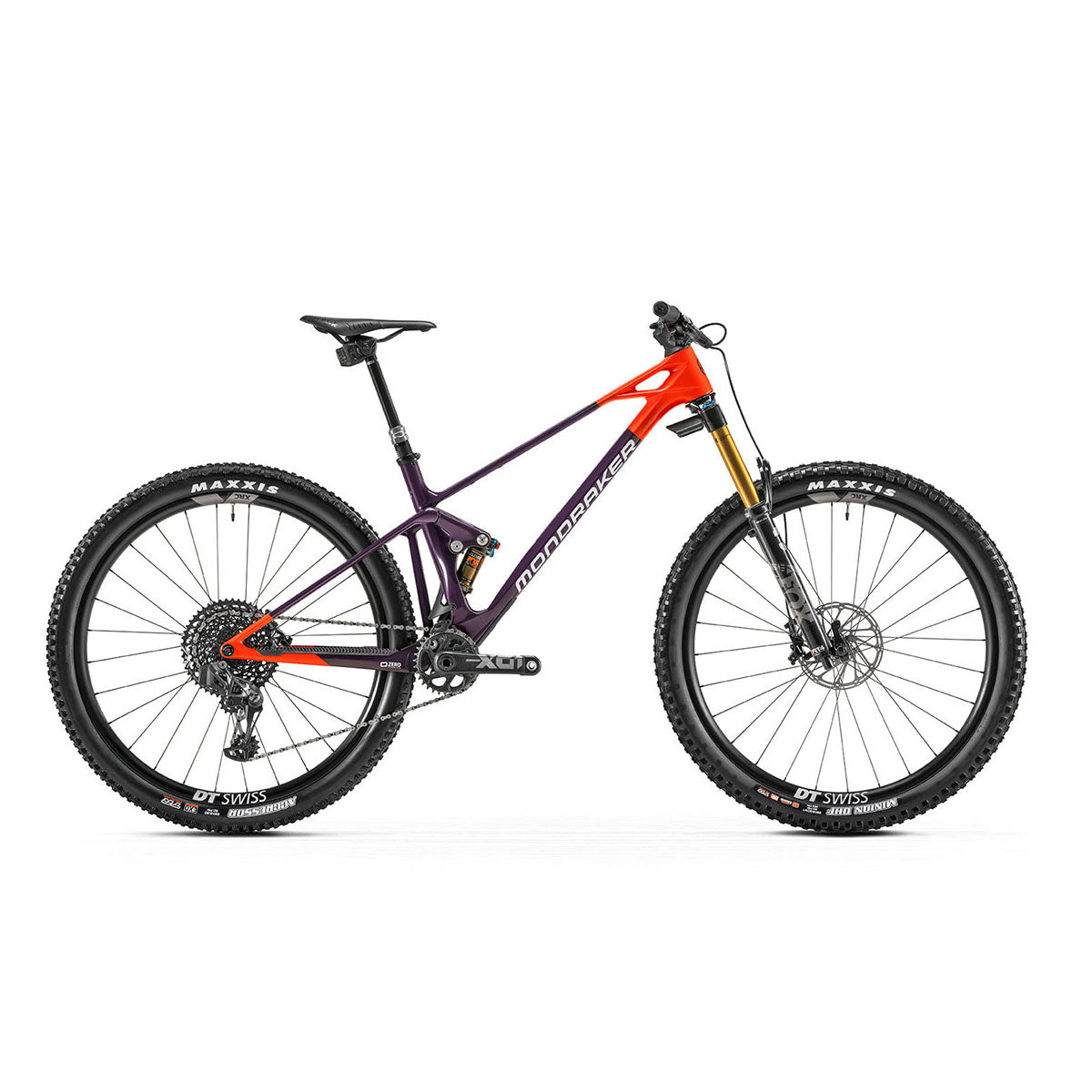

Mondraker - Raze Carbon RR SL Bike - Deep Purple-Flame Red (TRAIL)

SKU: MOND-B-Newtrail-RRSL-Purple22-L
$13,699.00
Shipping calculated at checkout.

Size
Color: Deep Purple-Flame Red

Pre-orders only.

Contact us at info@zeitbike.com or (805) 850-3200


NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.

DESCRIPTION

Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Colors: Deep Purple / Flame Red

Raze is more than a conventional trail bike, which combines traits of XC and Enduro into one model. Raze Carbon model comes with MIND telemetry system for proper suspension setup. MIND also collects and transmits ride data along with suspension setup data to myMondraker app.

The compact and lighter stealth full carbon frame and HHG internal cable routing help with resistance and mobility for better speed and performance. Mondraker’s proprietary Stealth carbon construction uses specific positioning and direction of carbon fibers to optimize benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.

High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.

Raze Carbon RR SL uses an enhanced zero suspension that helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME

Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.

SIZES

S: 380mm / M: 420mm / L: 450mm / XL: 500mm

REAR SHOCK

Fox Float DPS Factory Kashima evol LV, 205x57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

SHOCK SETTINGS

Light compression, light rebound, air volume spacer 0.6

FORK

Fox 36 29 Float GRIP EVOL Performance, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

HEADSET

Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

STEM

Onoff Krypton FG 30mm, CNC, 31.8mm barbore

HANDLEBAR

Onoff Kripton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

GRIPS

Onoff Diamond, 1lock-on, 135mm

SEATPOST

RockShox Reverb Stealth AXS, diameter 31.6mm, S size: 390x125mm, M size: 440x150mm, L/XL size: 440x170mm

SADDLE

Fizik Antares R7

FRONT BRAKE

Sram G2 RSC, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

REAR BRAKE

Sram G2 RSC, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

BRAKE LEVER

Sram G2 RSC, SwingLink, tool-free reach adjust

RIMS

DT Swiss XCM1200 Carbon Spline 29, 30mm internal width, hookless, tubeless ready, 28 spokes

SPOKES

DT Competition, straightpull

FRONT HUB

DT 240, Boost 15x110mm, IS 6 bolts

REAR HUB

DT 240, Boost 12x148mm, 36T Ratchet EXP system, IS 6 bolts, XD freehub

FRONT TIRE

Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

REAR TIRE

Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

CRANKSET

Sram X01 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm

RINGS

32T, CNC-machined alloy, X-SYNC 2

BOTTOM BRACKET

Sram DUB BSA, sealed bearings, 73mm



PEDALS

-

CHAIN

Sram GX Eagle, 12s, Powerlock

FRONT DERAILLEUR

-

REAR DERAILLEUR

Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

SHIFT LEVERS

Sram GX Eagle AXS

CASSETTE

Sram XG-1295, 10-52T, 12s

MOTOR

-

BATTERY

-

DISPLAY

-

DERAILLEUR HANGER

Sram UDH

OTHERS

-

WEIGHT

12.2 kg






GEOMETRY

MEASUREMENTS / GEOMETRY(Click on image to expand)

Mondraker Prime + 2021 Bike Geometry

Size

S

M

L

XL

A

Seattube Length

375 mm

415 mm

445 mm

500 mm

B

Top tube Length

595 mm

620 mm

645 mm

670 mm

C

Bottom Bracket Drop

-30 mm

-30 mm

-30 mm

-30 mm

D

Bottom Bracket Height

343 mm

343 mm

343 mm

343 mm

E

Chainstay Length

435 mm

435 mm

435 mm

435 mm

F

Seat Tube Angle

71°

71°

71°

71°

G

Effective Seat Tube Angle

76.5°

76.5°

76.5°

76.5°

H

Headtube Angle

65.5°

65.5°

65.5°

65.5°

I

Fork Offset

44 mm

44 mm

44 mm

44 mm

J

Wheelbase

1193 mm

1217 mm

1243 mm

1269 mm

K

Headtube Length

90 mm

100 mm

115 mm

130 mm

L

Reach

455 mm

475 mm

495 mm

515 mm

M

Stack

608 mm

617 mm

631 mm

645 mm

RESOURCES

Bike Size Guide (Click on image to zoom in)

Raze RR SL Setup (Click to open in new window). Or download using the viewer below
