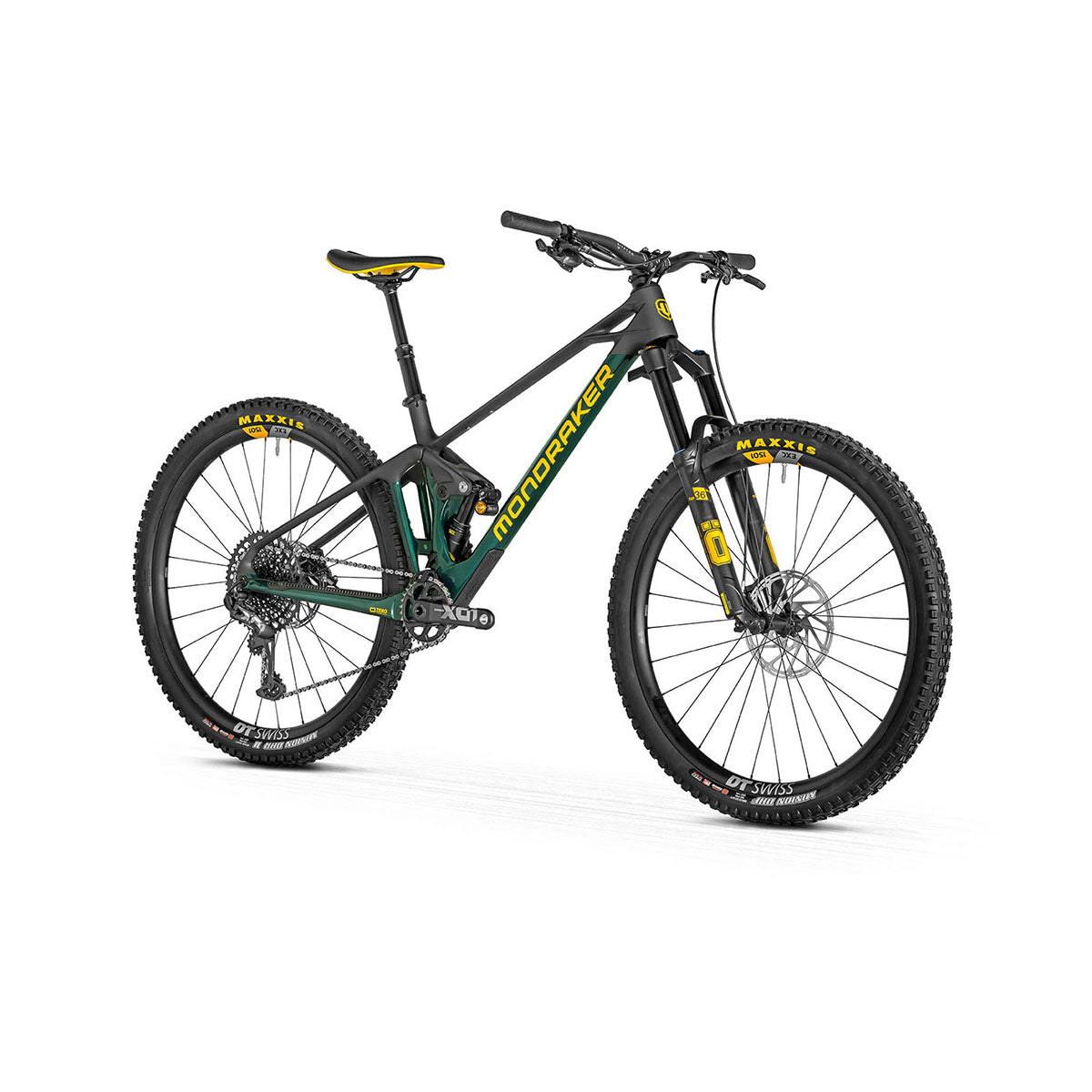

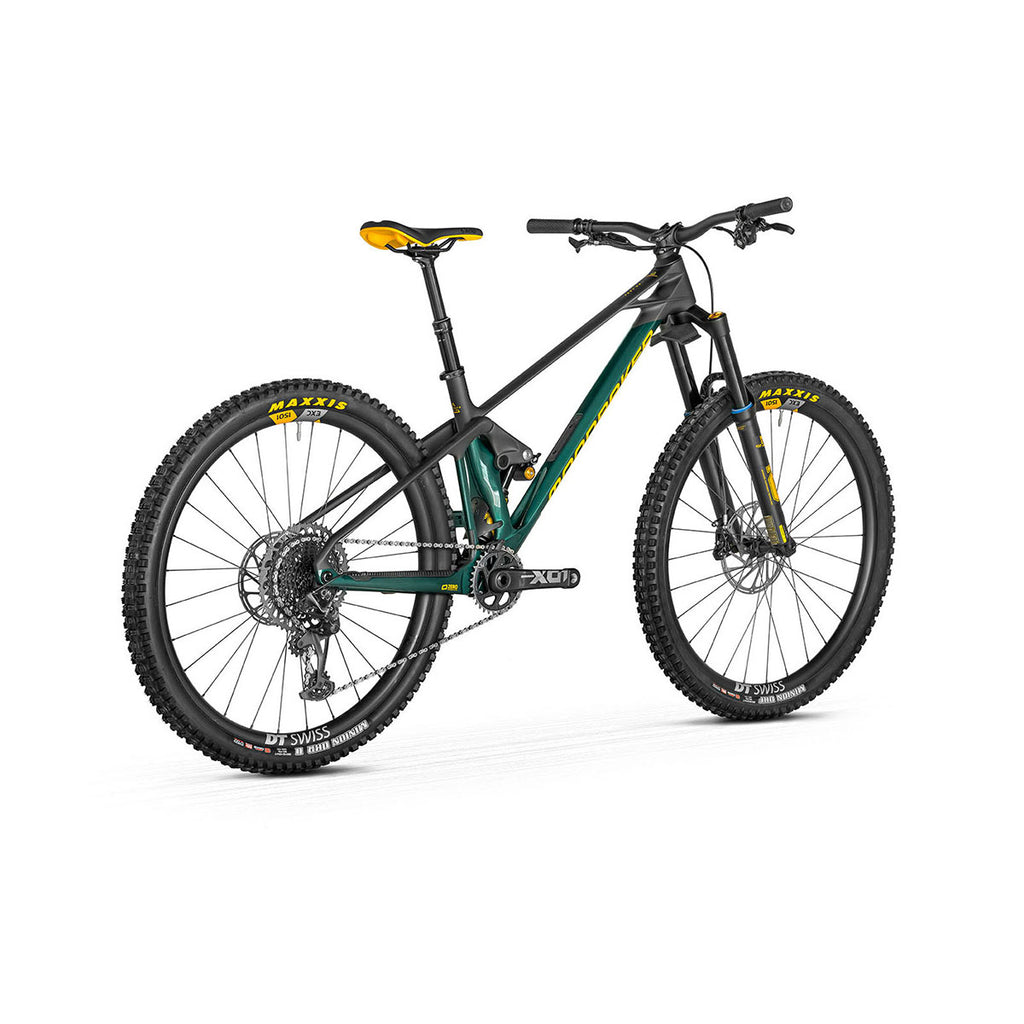

Mondraker - FOXY CARBON XR Bike - Green-Carbon-Ohlins Yellow (ENDURO | 2022)

MOND-B-Foxy-CarbXR-Green22-L

  • Sale
  • Regular price $10,999.00


Pre-Orders available at (805) 850-3200 or info@zeitbike.com


NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.

DESCRIPTION

Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Colors: Green / Carbon / Ohlins Yellow

Experience the Foxy Carbon XR difference in enduro, trail, uphill, and downhill! This top-end mountain bike boasts enhanced performance and ultra-modern geometry.

Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.

The proprietary stealth carbon airframe helps with resistance and mobility for better speed and performance. Stealth Air design delivers aero-style profile, maximum stiffness, lightest weight, and superior compliance ratio, extremely important for mtb riders. With the increased stiffness and improved pedaling efficiency, Foxy Carbon R becomes the bike of choice for technical climbs. Stealth air construction optimizes benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.

HHG Internal Cable Routing helps with a minimalistic, clean design. Foxy Carbon R is loaded with features such as shock mudguards, boost rear axle, sealed bearings, custom frame protectors, BSA bottom bracket, and dedicated 1X drivetrain for better traction and momentum.

Foxy Carbon XR 29 sports high-performance rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME

Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry,aluminium CSC upper link with carbon bridge, Boost 12x148mm rear axle, tapered head tube, 73mmBSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealedbearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry Kit

SIZES

S: 380mm / M: 420mm / L: 450mm / XL: 500mm

REAR SHOCK

Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

SHOCK SETTINGS

C20 compression, R35 rebound

FORK

Öhlins RXF 36 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

HEADSET

Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

STEM

Onoff Krypton FG 30mm, CNC, 31.8mm barbore

HANDLEBAR

Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

GRIPS

Onoff Diamond, 1lock-on, 135mm

SEATPOST

Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm

SADDLE

SDG BEL-AIR 3.0, LPU foam, steel rails

FRONT BRAKE

Sram G2 RSC, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

REAR BRAKE

Sram G2 RSC, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

BRAKE LEVER

Sram G2 RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

RIMS

DT Swiss EXC1501 Carbon Spline 29, 30mm internal width, hookless, tubeless ready, 28 spokes

SPOKES

DT Competition, straightpull

FRONT HUB

DT 240, Boost 15x110mm, IS 6 bolts

REAR HUB

DT 240, Boost 12x148mm, 36T Ratchet EXP system, IS 6 bolts, XD freehub

FRONT TIRE

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

REAR TIRE

Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

CRANKSET

Sram X01 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm

RINGS

32T, CNC-machined alloy, X-SYNC 2

BOTTOM BRACKET

Sram DUB BSA, sealed bearings, 73mm

PEDALS

-

CHAIN

Sram GX Eagle, 12s, Powerlock

FRONT DERAILLEUR

-

REAR DERAILLEUR

Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

SHIFT LEVERS

Sram Trigger X01 Eagle, 12s, X-Actuation 1:1

CASSETTE

Sram XG-1275, 10-52T, 12s

MOTOR

-

BATTERY

-

DISPLAY

-

DERAILLEUR HANGER

Sram UDH

OTHERS

*Optional Geometry kit: steering cups: +/- 1°

WEIGHT

12.9 Kg



GEOMETRY

MEASUREMENTS / GEOMETRY

Size

S

M

L

XL

A

Seat Tube Length

375 mm

415 mm

445 mm

500 mm

B

Top Tube Length

600 mm

620 mm

650 mm

670 mm

C

Bottom Bracket Drop

-20 mm

-20 mm

-20 mm

-20 mm

D

Bottom Bracket Height

354 mm

354 mm

354 mm

354 mm

E

Chainstay Length

435 mm

435 mm

435 mm

435 mm

F

Seat Tube Angle, Actual

70.2°

70.2°

70.2°

70.2°

G

Seat Tube Angle, Effective

75.5°

75.5°

75.5°

75.5°

H

Head Tube Angle

64.5°

64.5°

64.5°

64.5°

I

Fork Offset

44 mm

44 mm

44 mm

44 mm

J

Wheelbase

1208 mm

1231 mm

1257 mm

2283 mm

K

Head Tube Length

90 mm

100 mm

115 mm

130 mm

L

Reach

445 mm

465 mm

485 mm

505 mm

M

Stack

617 mm

627 mm

641 mm

656 mm



RESOURCES

Bike Size Guide (Click on image to zoom in)

Foxy Carbon XR 2022 Setup (Click to open in new window). Or download using the viewer below
