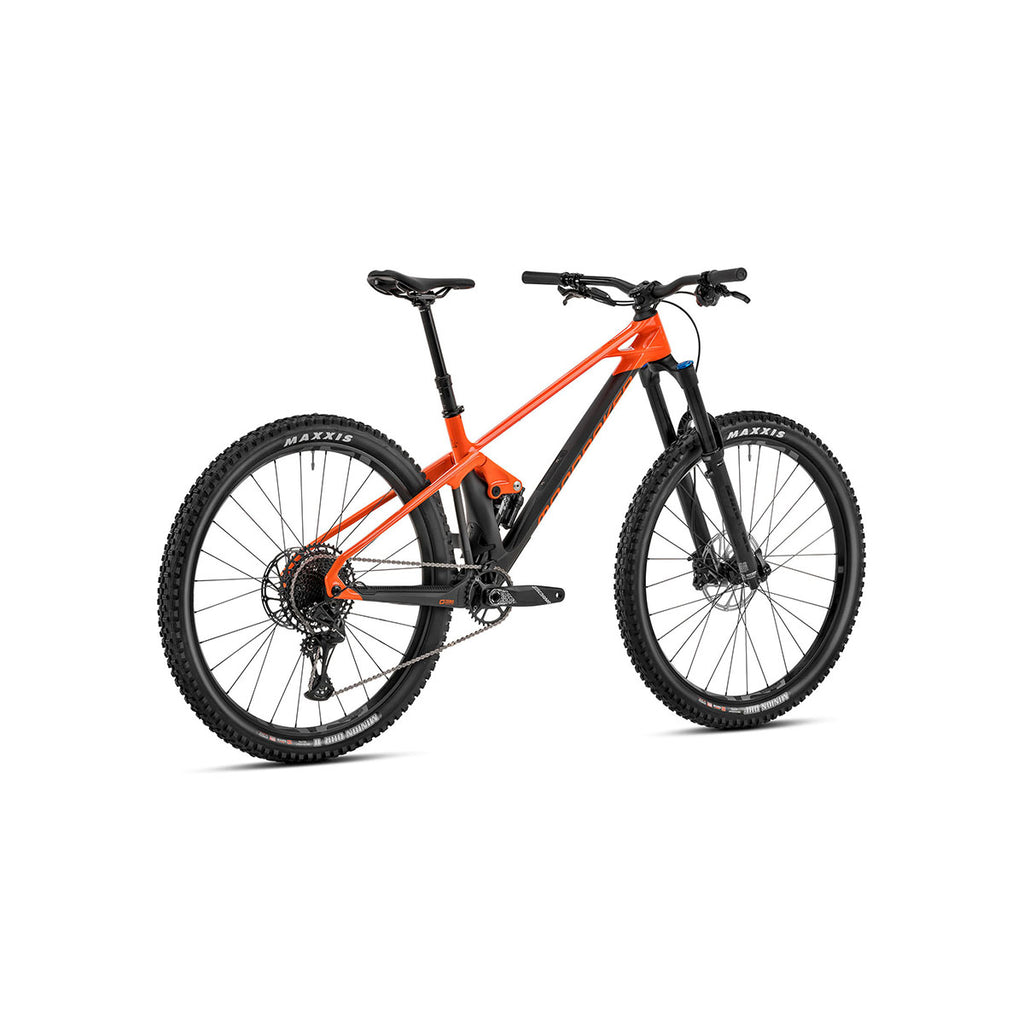

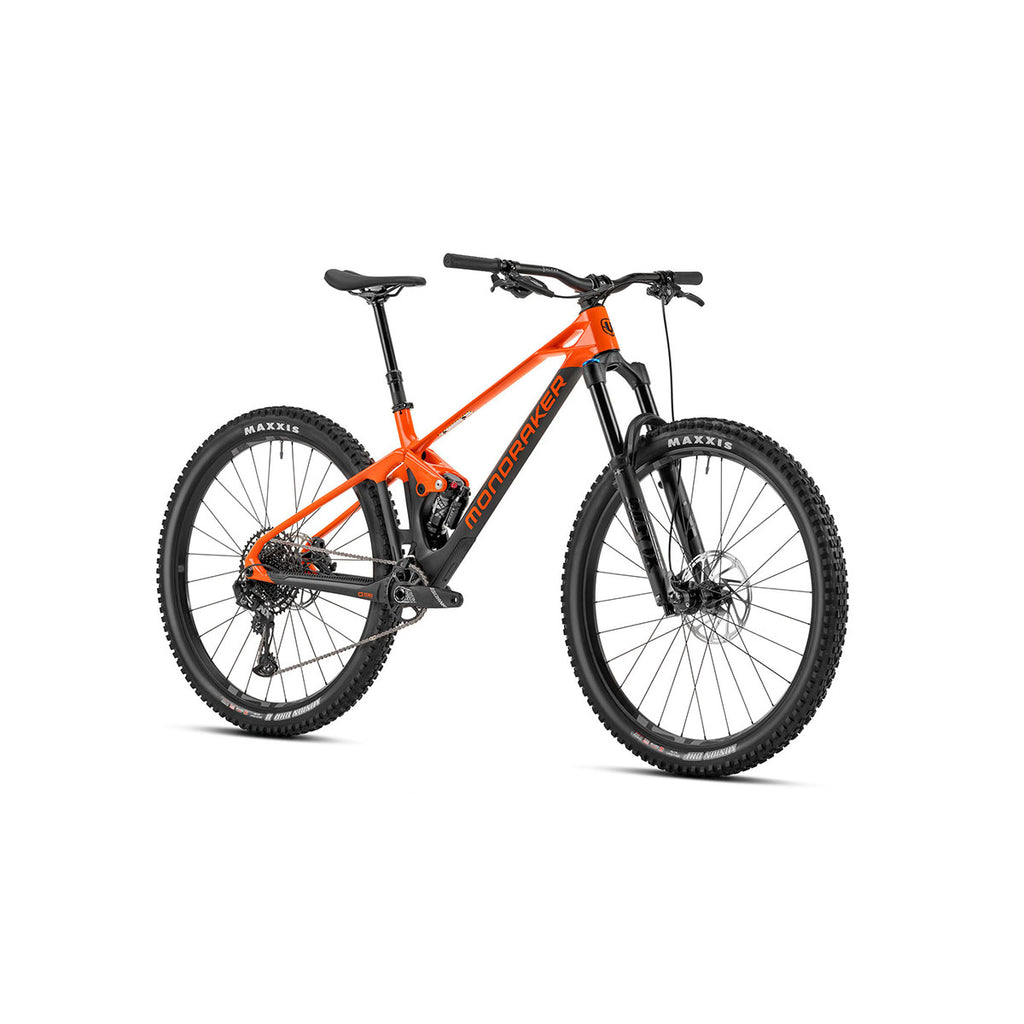

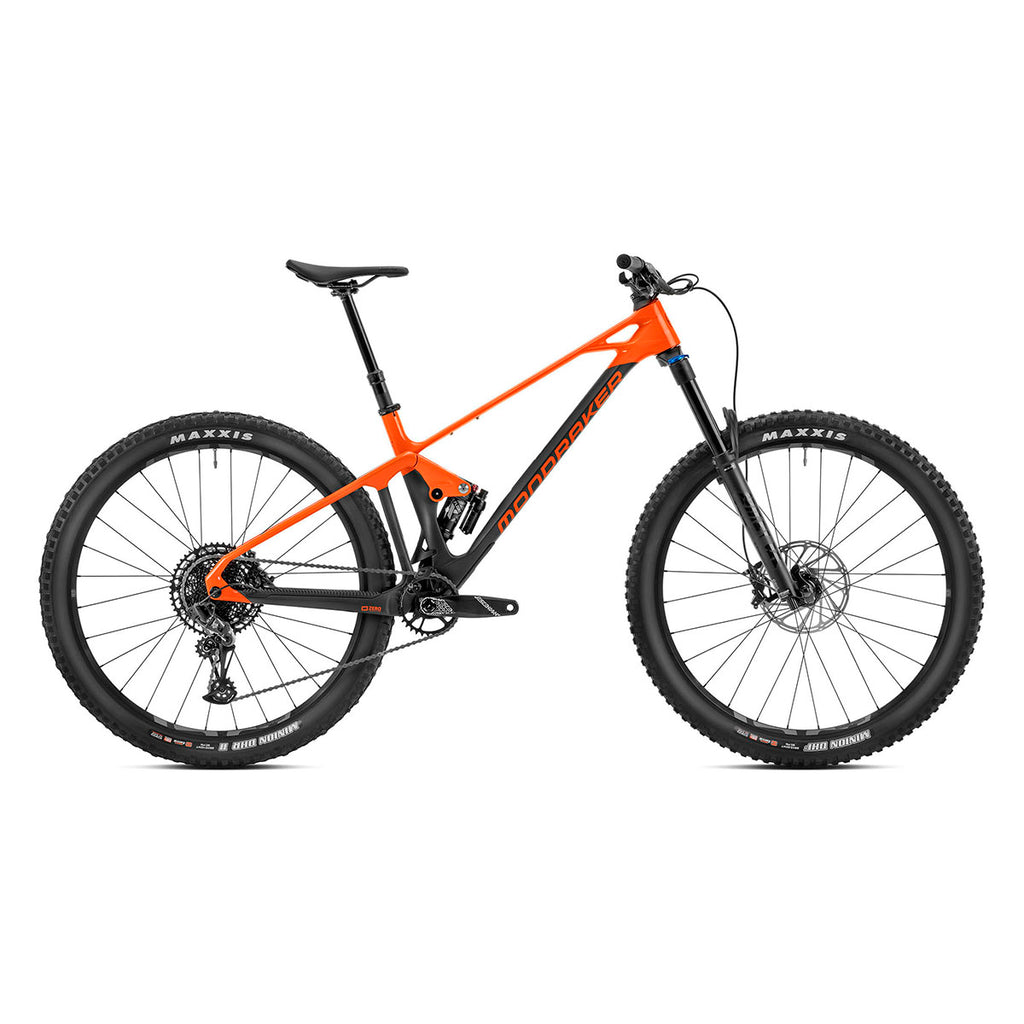

Mondraker - FOXY CARBON R Bike - Carbon/Orange (ENDURO/AM)

SKU: MOND-B-Foxy-CarbR-Carbon23-M
$7,999.00
Shipping calculated at checkout.

Size
Color: Carbon-Orange

NOTE:
For inquiries, please call us at 805-850-3200.

DESCRIPTION

Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Colors: Matte Carbon / Gloss Orange

Experience the Foxy Carbon R difference in enduro, trail, uphill, and downhill! This top-end mountain bike boasts enhanced performance and ultra-modern geometry. Foxy Carbon R has a sweet spot in terms of pricing while offering the same frame features as XR and RR Carbon models.

Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.

The proprietary stealth carbon airframe helps with resistance and mobility for better speed and performance. Stealth Air design delivers aero-style profile, maximum stiffness, lightest weight, and superior compliance ratio, extremely important for mtb riders. With the increased stiffness and improved pedaling efficiency, Foxy Carbon R becomes the bike of choice for technical climbs. Stealth air construction optimizes benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.

HHG Internal Cable Routing helps with a minimalistic, clean design. Foxy Carbon R is loaded with features such as shock mudguards, boost rear axle, sealed bearings, custom frame protectors, BSA bottom bracket, and dedicated 1X drivetrain for better traction and momentum.

Foxy Carbon R 29 sports high-performance rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME

Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, aluminium CSC upper link with carbon bridge, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry Kit. Optional MIND System (EU only)

SIZES

S: 380mm / M: 420mm / L: 450mm / XL: 500mm

REAR SHOCK

Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

SHOCK SETTINGS

Light compression, extralight rebound, air volume spacer 0.6

FORK

Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload

HEADSET

Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

STEM

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

HANDLEBAR

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

GRIPS

ONOFF Desert, 1lock-on, 135mm

SEATPOST

ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

SADDLE

SDG BEL-AIR 3.0, LPU foam, steel rails

FRONT BRAKE

Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

REAR BRAKE

Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

BRAKE LEVER

Sram G2 R, tool-free reach adjust

RIMS

e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

SPOKES

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

FRONT HUB

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

REAR HUB

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub

FRONT TIRE

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

REAR TIRE

Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

CRANKSET

Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm

RINGS

32T, steel, X-Sync 2

BOTTOM BRACKET

Sram DUB BSA, sealed bearings, 73mm

PEDALS

-

CHAIN

Sram NX Eagle, 12s, Powerlock

FRONT DERAILLEUR

-

REAR DERAILLEUR

Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

SHIFT LEVERS

Sram Trigger NX Eagle, 12s, X-Actuation 1:1

CASSETTE

Sram XG-1230, 11-50T, 12s

MOTOR

-

BATTERY

-

DISPLAY

-

DERAILLEUR HANGER

Sram UDH

OTHERS

*Optional Geometry kit: steering cups: +/- 1°

WEIGHT

14.9 Kg



GEOMETRY

MEASUREMENTS / GEOMETRY

Size

S

M

L

XL

A

Seat Tube Length

375 mm

415 mm

445 mm

500 mm

B

Top Tube Length

600 mm

620 mm

650 mm

670 mm

C

Bottom Bracket Drop

-30 mm

-30 mm

-30 mm

-30 mm

D

Bottom Bracket Height

345 mm

345 mm

345 mm

345 mm

E

Chainstay Length

445 mm

445 mm

445 mm

445 mm

F

Seat Tube Angle, Actual

70°

70°

70°

70°

G

Seat Tube Angle, Effective

75.5°

75.5°

75.5°

75.5°

H

Head Tube Angle

64.5°

64.5°

64.5°

64.5°

I

Fork Offset

44 mm

44 mm

44 mm

44 mm

J

Wheelbase

1210 mm

1233 mm

1260 mm

1286 mm

K

Head Tube Length

90 mm

100 mm

115 mm

130 mm

L

Reach

445 mm

465 mm

485 mm

505 mm

M

Stack

617 mm

627 mm

641 mm

656 mm



RESOURCES

Spare Parts
Suspension Setup

SIZE GUIDE

Bike Size Guide (Click on image to zoom in)
