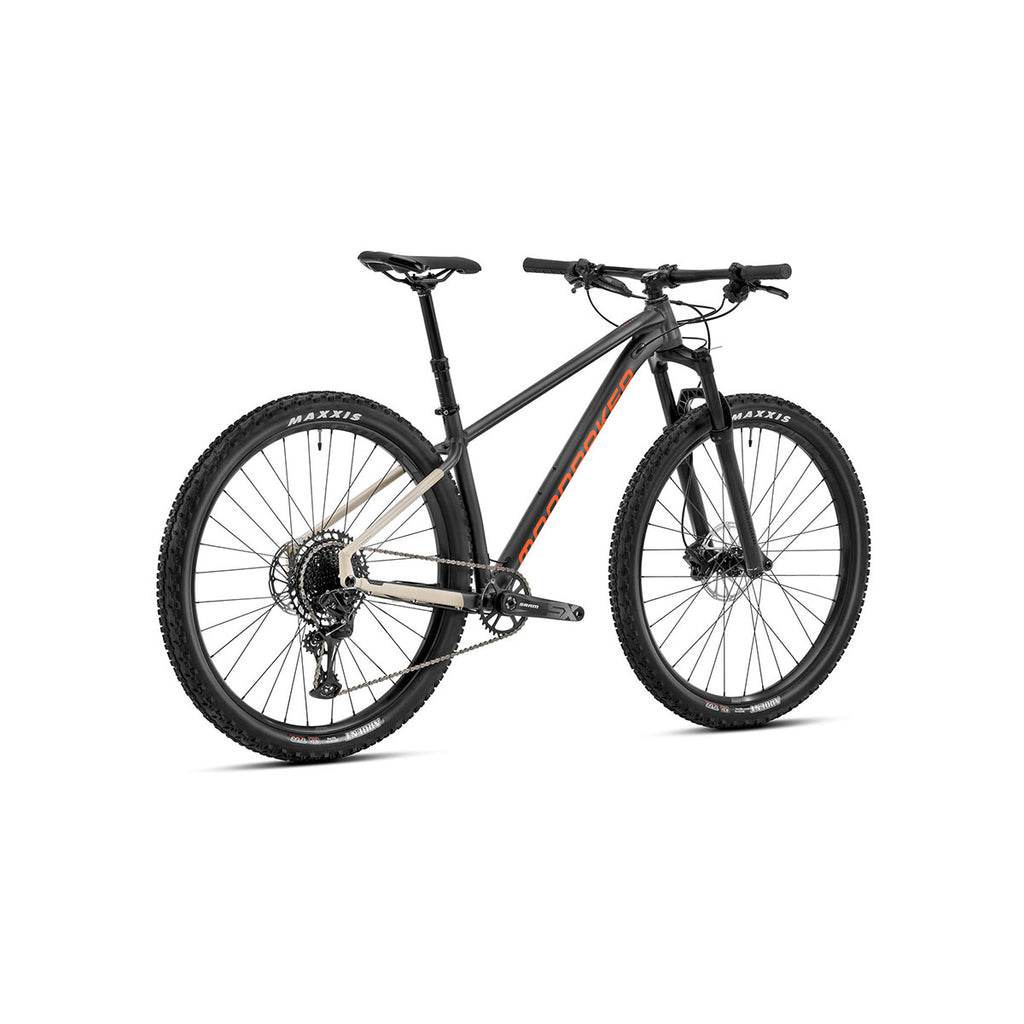

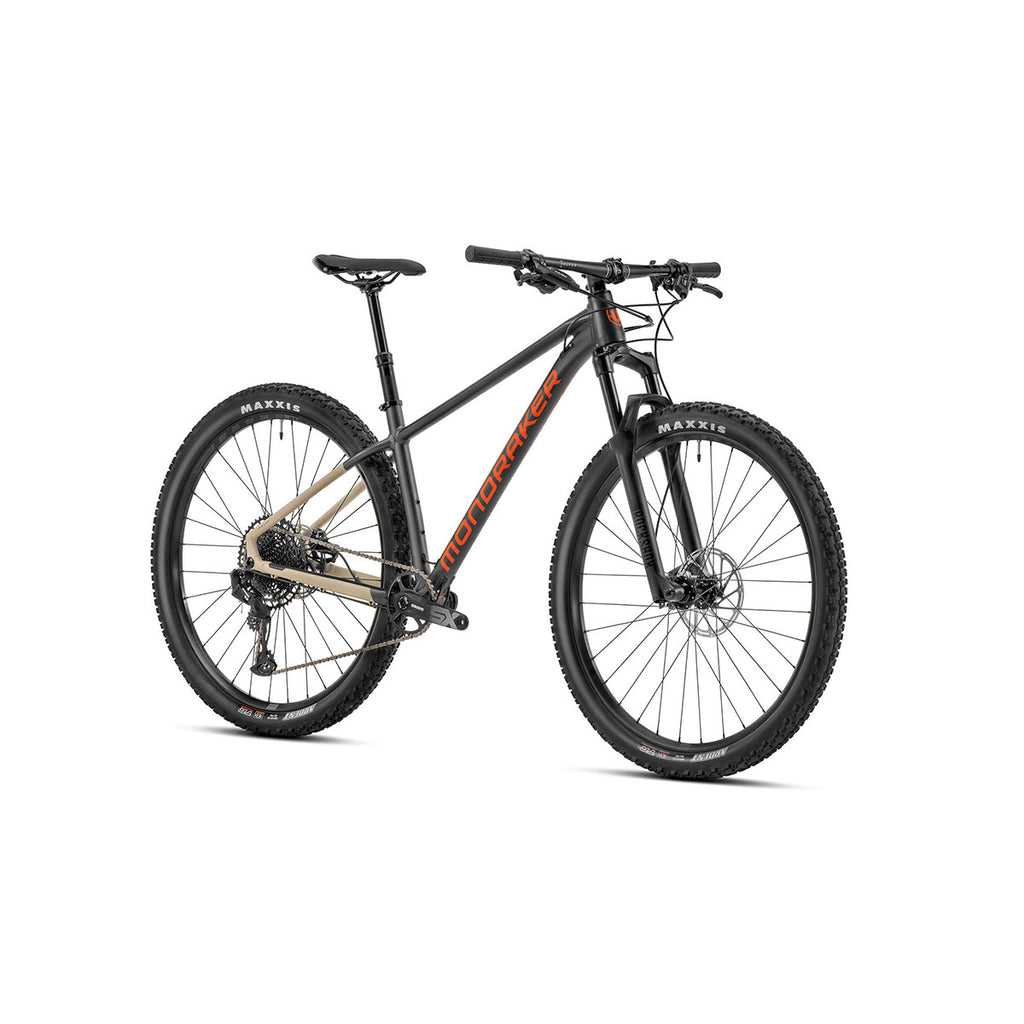

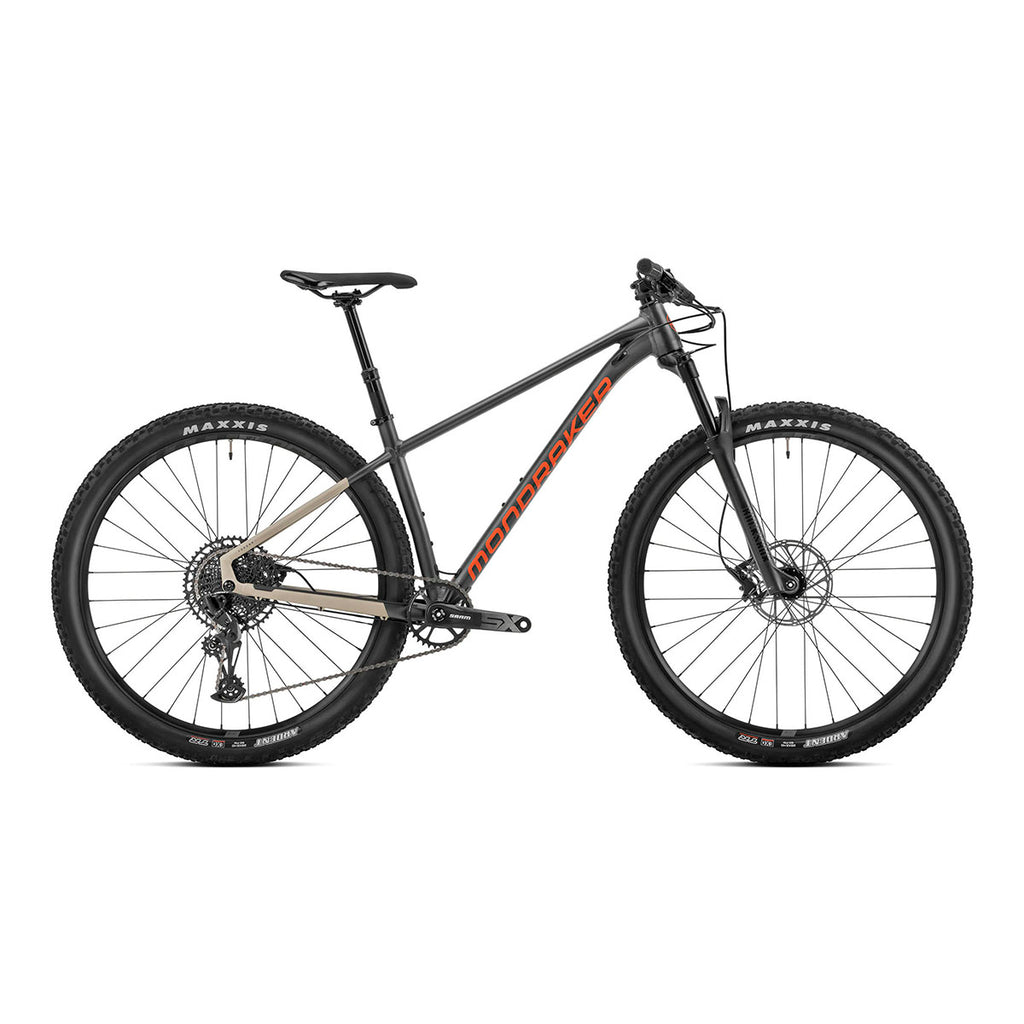

Mondraker - CHRONO DC Bike - Graphite/Gray/Orange (XC Pro | 2023)

MOND-B-Chro-DC-Graphite23-S

  • Sale
  • $2,599.00
  • Regular price $2,699.00
Shipping calculated at checkout.


Pre-Orders available at (805) 850-3200 or info@zeitbike.com


NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.

DESCRIPTION

Sizes: S: 395mm / M: 430mm / L: 470mm / XL: 520mm
Colors: Matte Graphite / Desert Grey / Orange

Chrono DC has been launched exclusively for fun hardtails!

Durable stealth alloy frame and HHG internal routing help with resistance and mobility for better speed and performance. XStealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.

XC Racers will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.

HHG Internal Cable Routing helps with a minimalistic, clean design. Chrono DC bikes are race-ready with Xtralite alloy butted frame, boost rear axle and BSA bottom bracket for enhanced traction and momentum. Chrono DC has a high-performance suspension system that helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails.

Chrono DC Pro Bike sports high-performance rear derailleurs and wide 29” tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME

Chrono 29 Stealth Alloy, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle

SIZES

S: 395mm / M: 430mm / L: 470mm / XL: 520mm

REAR SHOCK

-

SHOCK SETTINGS

-

FORK

RockShox Judy Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, 9x100mm axle, 30mm steel stanchions, 46mm offset. Settings: Poplock 2 pos remote compression (open/lock), rebound, air preload

FORK REMOTE RockShox PopLoc

HEADSET

ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

STEM

ONOFF Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm

HANDLEBAR

ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore

GRIPS

ONOFF Twin, 1lock-on, 135mm

SEATPOST

ONOFF Pija dropper internal, diameter 31.6mm, S/M size: 405x95-125mm, L/XL size 458x120-150mm

SADDLE

Mondraker XC Series, steel rail

FRONT BRAKE

Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

REAR BRAKE

Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

BRAKE LEVER

Sram Level, tooled reach adjust, lever pivot bushings

RIMS

MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes

SPOKES

CN round stainless steel

FRONT HUB

Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts

REAR HUB

Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts

FRONT TIRE

Maxxis Ardent 29x2.40, 60TPI, folding bead

REAR TIRE

Maxxis Ardent 29x2.40, 60TPI, folding bead

CRANKSET

Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm

RINGS

34T, steel, X-Sync 2

BOTTOM BRACKET

Sram DUB BSA, sealed bearings, 73mm

PEDALS

-

CHAIN

Sram SX Eagle, 12s, Powerlock

FRONT DERAILLEUR

-

REAR DERAILLEUR

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

SHIFT LEVERS

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

CASSETTE

Sram PG-1210, 11-50T, 12s

MOTOR

-

BATTERY

-

DISPLAY

-

DERAILLEUR HANGER

Mondraker M068

OTHERS

-

WEIGHT

13.8kg





GEOMETRY

MEASUREMENTS / GEOMETRY (Click on image to expand)

Mondraker Chrono DC R Geometry 2023

Size

S

M

L

XL

A

Seat Tube Length

390 mm

420 mm

470 mm

520 mm

B

Top Tube Length

590 mm

610 mm

630 mm

650 mm

C

Bottom Bracket Drop

65 mm

65 mm

65 mm

65 mm

D

Bottom Bracket Height

300 mm

300 mm

300 mm

300 mm

E

Chainstay Length

430 mm

430 mm

430 mm

430 mm

F

Seat Tube Angle, Actual

72.5°

72.5°

72.5°

72.5°

G

Seat Tube Angle, Effective

74.5°

74.5°

74.5°

74.5°

H

Head Tube Angle

68.5°

68.5°

68.5°

68.5°

I

Fork Offset

44mm

44mm

44mm

44mm

J

Wheelbase

1118 mm

1133 mm

1160 mm

1175 mm

K

Head Tube Length

100 mm

100 mm

110 mm

125 mm

L

Reach

425 mm

440 mm

460 mm

475 mm

M

Stack

624 mm

624 mm

642 mm

642 mm
