DESCRIPTION

Sizes: S: 400mm / M: 400mm / L: 400mm / XL: 400mm

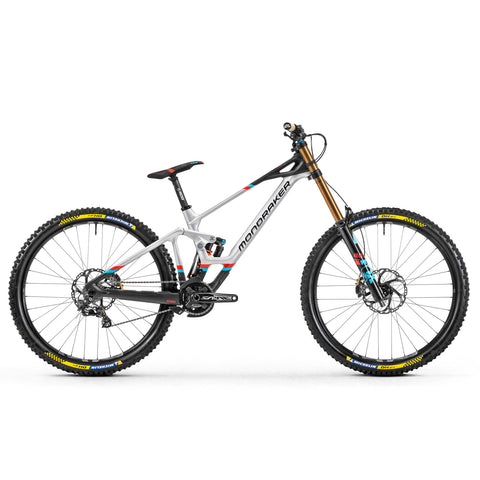

Colors: Matte Carbon UD / Gloss Racing Silver

Summum is Mondraker’s flagship bike, that boasts a world championship-winning design for ultimate downhill rides! Summum Carbon RR 29 uses HHG Internal Cable Routing for a minimalistic, clean design. Also available with MX wheel option, with a 29" front wheel and 27.5" rear wheel.

Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

Downhill riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.

The compact and lighter stealth carbon frame and HHG internal cable routing help with resistance and mobility for better speed and performance. Mondraker’s proprietary Stealth carbon construction uses specific positioning and direction of carbon fibers to optimize benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.

Summum Carbon R 29 sports high-performance front and rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes. Summum is loaded with additional features like dual raw enduro bearings, super-boost rear axle, and hydroformed tubing for traction and control.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME	Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual raw Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included
SIZES	S: 400mm / M: 400mm / L: 400mm / XL: 400mm
REAR SHOCK	Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
SHOCK SETTINGS	ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs
FORK	Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload
HEADSET	Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45°x45° ACB sealed bearings, geometry kit cups, external diameter 56mm
STEM	Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy,2x6mm spacer
HANDLEBAR	Renthal Fatbar series 7 alloy, rise: 30mm, width: 800mm, 7° backsweep, 5° upsweep, 31.8mm barbore
GRIPS	Renthal, double lock-on, kevlar compound, 130mm
SEATPOST	SDG Micro I-Beam SP-951 Alloy, diameter 31.6mm, length 300mm, micro-adjustment
SADDLE	SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
FRONT BRAKE	Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler
REAR BRAKE	Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler
BRAKE LEVER	Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust
RIMS	e*thirteen LG1 Race Carbon, IW30 29” Hookless, World Cup carbon fiber, 30mm internal width, tubeless ready, 32 spokes
SPOKES	e*thirteen custom Hive triple-butted black alloy, alloy nipples, nipple washers
FRONT HUB	e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
REAR HUB	e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts
FRONT TIRE	Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
REAR TIRE	Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing,wire bead
CRANKSET	Shimano Saint M825 Hollowtech II, reinforced steel axle, 165mm
RINGS	34T, aluminium, BCD 104
BOTTOM BRACKET	Shimano 83mm
PEDALS	-
CHAIN	Shimano HG95, 10s
FRONT DERAILLEUR	E.13 LG1+ Race Carbon chain guide, IFD DMB (Direct mount Bashguard) Gen 2 Stealth Idler, Aluminum hardware, adjustable/replaceable lower armature, polycarbonate, ISCG 05, adjustable upper slider
REAR DERAILLEUR	Shimano Saint RD-M820-SS, 10s, Shadow+, short cage
SHIFT LEVERS	Shimano Saint SL-M820 10s, low friction multi bearing, instant release, multi release, 2-way release
CASSETTE	Shimano CS-HG500-10, 11-25T, 10s
MOTOR	-
BATTERY	-
DISPLAY	-
DERAILLEUR HANGER	-
OTHERS	*Geometry kit included: +-1° / +-2° headset cups
WEIGHT	-

GEOMETRY

MEASUREMENTS / GEOMETRY (Click on image to expand)

	Size	S	M	L	XL
A	Seat Tube Length	400 mm	400 mm	400 mm	400 mm
B	Top Tube Length	575 mm	595 mm	620 mm	645 mm
C	Bottom Bracket Drop	-20mm	-20mm	-20mm	-20mm
D	Bottom Bracket Height	350 mm	350 mm	350 mm	350 mm
E	Chainstay Length	450/455/460 mm	450/455/460 mm	450/455/460 mm	450/455/460 mm
F	Seat Tube Angle, Actual	69°	69°	69°	69°
G	Seat Tube Angle, Effective	77°	77°	77°	77°
H	Head Tube Angle	63°	63.5°	63.5°	63.5°
I	Fork Offset	58 mm	58 mm	58 mm	58 mm
J	Wheelbase	1260 mm	1270 mm	1295 mm	1320 mm
K	Head Tube Length	110 mm	110 mm	112 mm	112 mm
L	Reach	430 mm	450 mm	475 mm	500 mm
M	Stack	632 mm	633 mm	632 mm	632 mm
