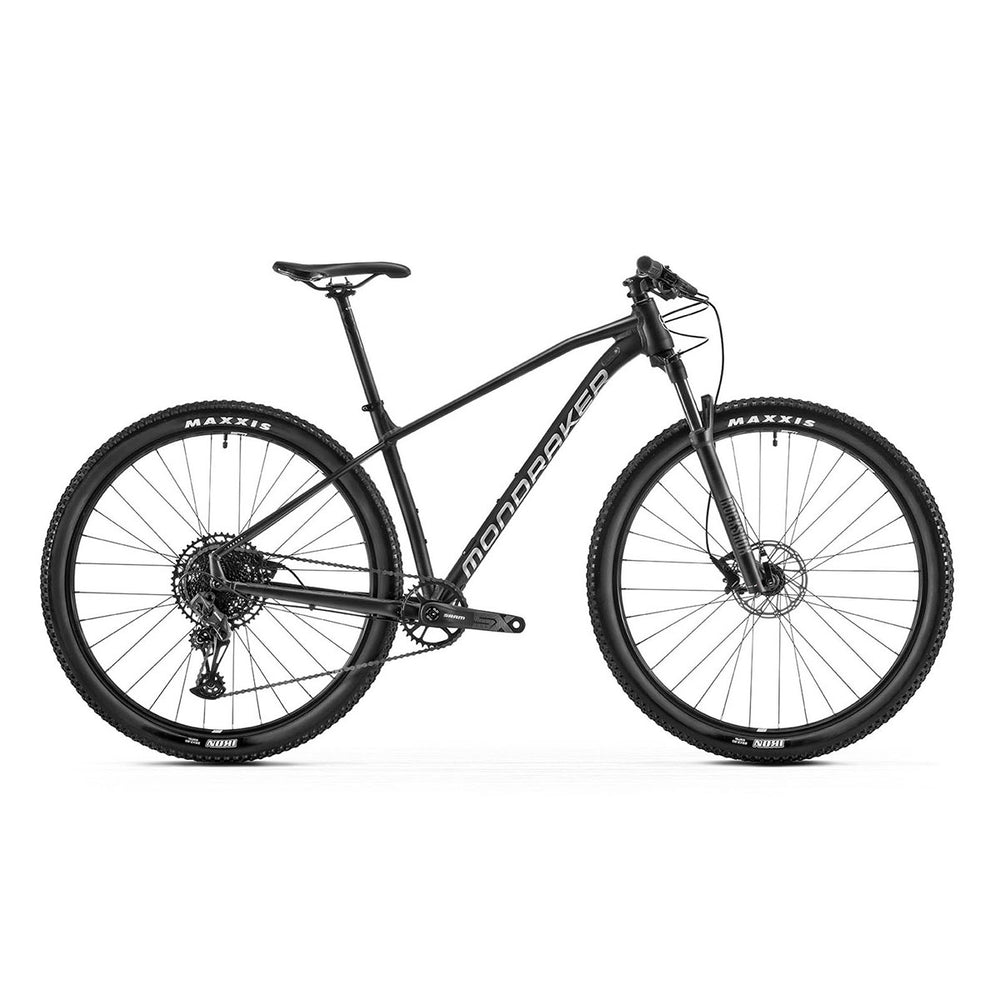

Mondraker - CHRONO Bike - Black-Silver (XC PRO)

MOND-B-Chro-Black22-M

  • Sale
  • Regular price $1,899.00
  • 6 available
ZEITBIKE means FREE SHIPPING on orders over $99 😁👍🏼




NOTE:
For inquiries, please call us at 805-850-3200.

DESCRIPTION

Sizes: S: 395mm / M: 430mm / L: 470mm / XL: 520mm
Color:: Matte Black / Racing Silver
Chrono Bike is also available in Gloss Dirty White / Black

Experience the Chrono difference in Cross-country rides and marathons! These stylish and modern XC bikes with race geometry, are also great for urban city riders.

Durable stealth alloy frame and HHG internal routing help with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.

XC Racers will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.

HHG Internal Cable Routing helps with a minimalistic, clean design. Chrono XC bikes are race-ready with Xtralite alloy butted frame, boost rear axle and BSA bottom bracket for enhanced traction and momentum. Chrono XC has a high-performance suspension system that helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails.

Chrono XC Pro Bike sports high-performance rear derailleurs and wide 29” tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME

Chrono 29 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle

SIZES

S: 395mm / M: 430mm / L: 470mm / XL: 520mm

REAR SHOCK

-

SHOCK SETTINGS

-

FORK

RockShox Judy Silver TK 29, 100mm, TurnKey, Solo Air, tapered steerer tube, 9x100mm axle, 30mm steel stanchions, 45mm offset. Settings: Poplock 2 pos remote compression (open/lock), rebound, air preload

FORK REMOTE RockShox PopLoc

HEADSET

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°

STEM

Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7°, length: sizes S/M: 60mm, size L: 80mm, size XL: 90mm

HANDLEBAR

Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9° backsweep, 0° upsweep, 31.8mm barbore

GRIPS

Onoff Diamond, 1lock-on, 135mm

SEATPOST

Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm

SADDLE

Mondraker XC Series, steel rail

FRONT BRAKE

Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

REAR BRAKE

Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

BRAKE LEVER

Sram Level, tooled reach adjust, lever pivot bushings

RIMS

MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes

SPOKES

CN round stainless steel

FRONT HUB

Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts

REAR HUB

Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts, MS freehub

FRONT TIRE

Maxxis Ikon 29x2.20, 60TPI, wire bead

REAR TIRE

Maxxis Ikon 29x2.20, 60TPI, wire bead

CRANKSET

Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm

RINGS

34T, steel, X-Sync 2

BOTTOM BRACKET

Sram DUB BSA, sealed bearings, 73mm

PEDALS

-

CHAIN

Sram SX Eagle, 12s, Powerlock

FRONT DERAILLEUR

-

REAR DERAILLEUR

Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

SHIFT LEVERS

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

CASSETTE

Sram PG-1210, 11-50T, 12s

MOTOR

-

BATTERY

-

DISPLAY

-

DERAILLEUR HANGER

Mondraker M068

OTHERS

-

WEIGHT

-



GEOMETRY

MEASUREMENTS / GEOMETRY (Click on image to expand)

Mondraker Chrono Geometry 2022

Size

S

M

L

XL

A

Seat Tube Length

395 mm

430 mm

470 mm

520 mm

B

Top Tube Length

590 mm

610 mm

630 mm

650 mm

C

Bottom Bracket Drop

-65 mm

-65 mm

-65 mm

-65 mm

D

Bottom Bracket Height

305 mm

305 mm

305 mm

305 mm

E

Chainstay Length

435 mm

435 mm

435 mm

435 mm

F

Seat Tube Angle, Actual

72.5°

72.5°

72.5°

72.5°

G

Seat Tube Angle, Effective

73.5°

73.5°

73.5°

73.5°

H

Head Tube Angle

70°

70°

70°

70°

I

Fork Offset

44/46 mm

44/46 mm

44/46 mm

44/46 mm

J

Wheelbase

1087 mm

1107 mm

1127 mm

1148 mm

K

Head Tube Length

100 mm

100 mm

110 mm

125 mm

L

Reach

406 mm

426 mm

444 mm

460 mm

M

Stack

618 mm

618 mm

628 mm

642 mm

RESOURCES

Bike Size Guide (Click on image to zoom in)

Specs for all 2022 Bikes (Click to open in new window). Or download using the viewer below
