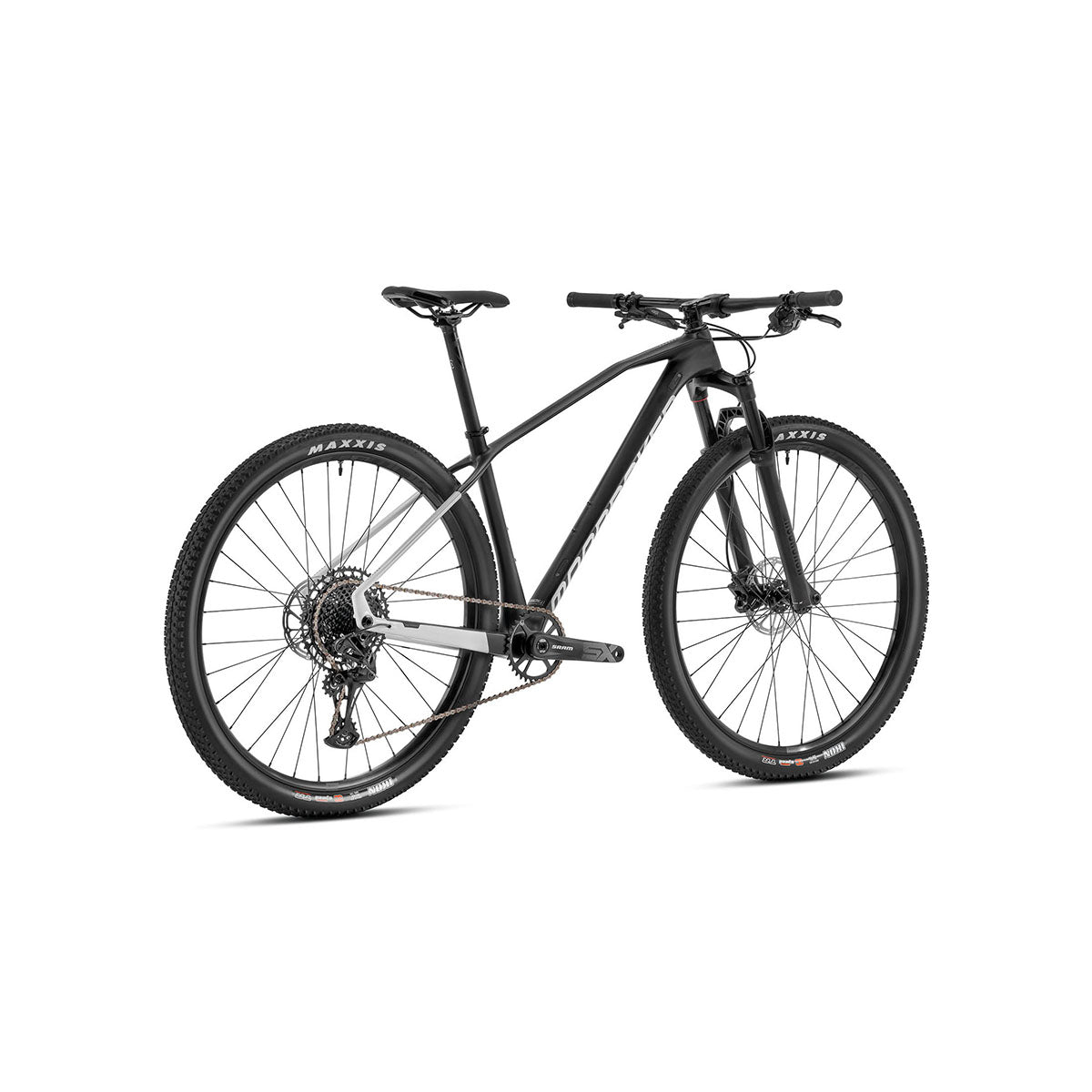

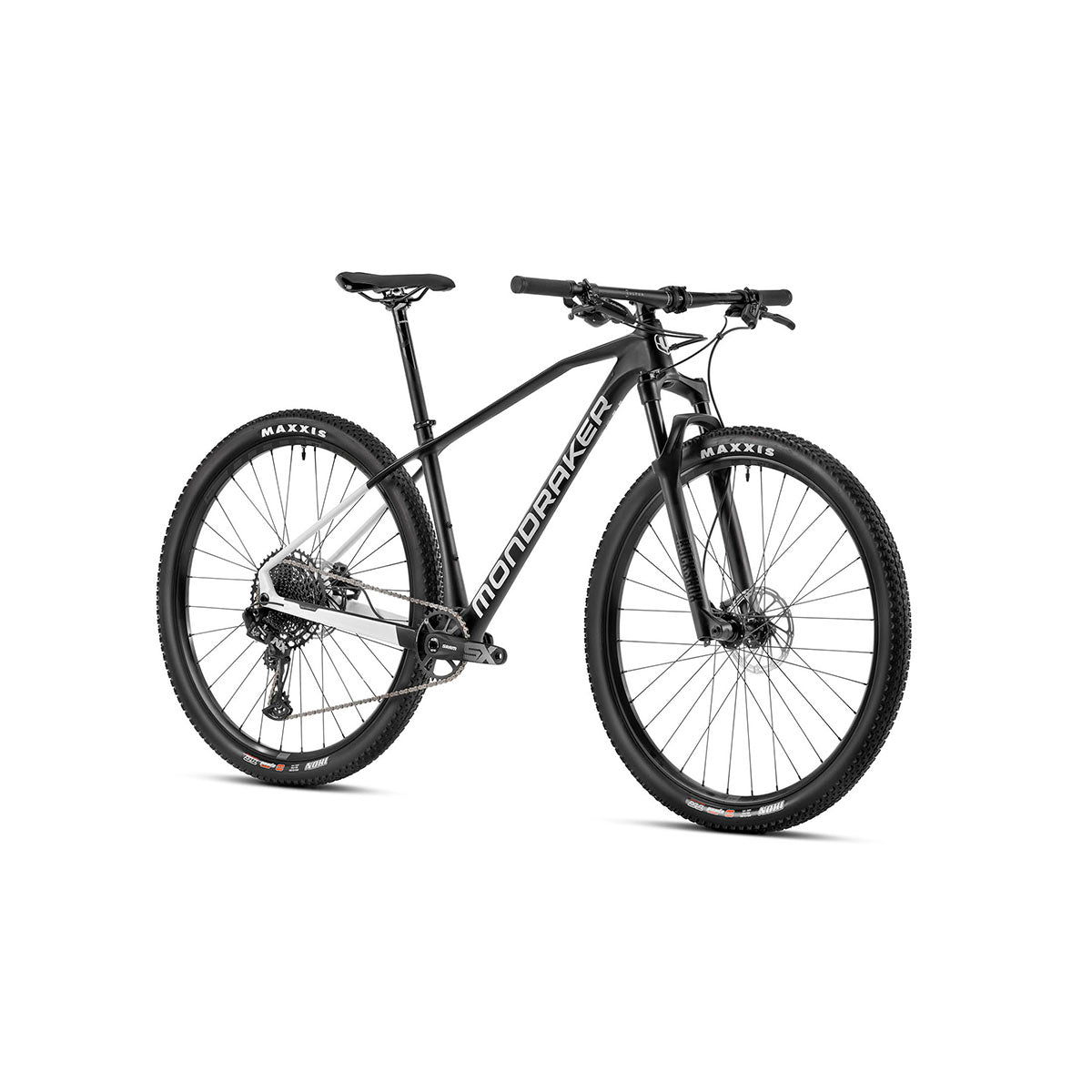

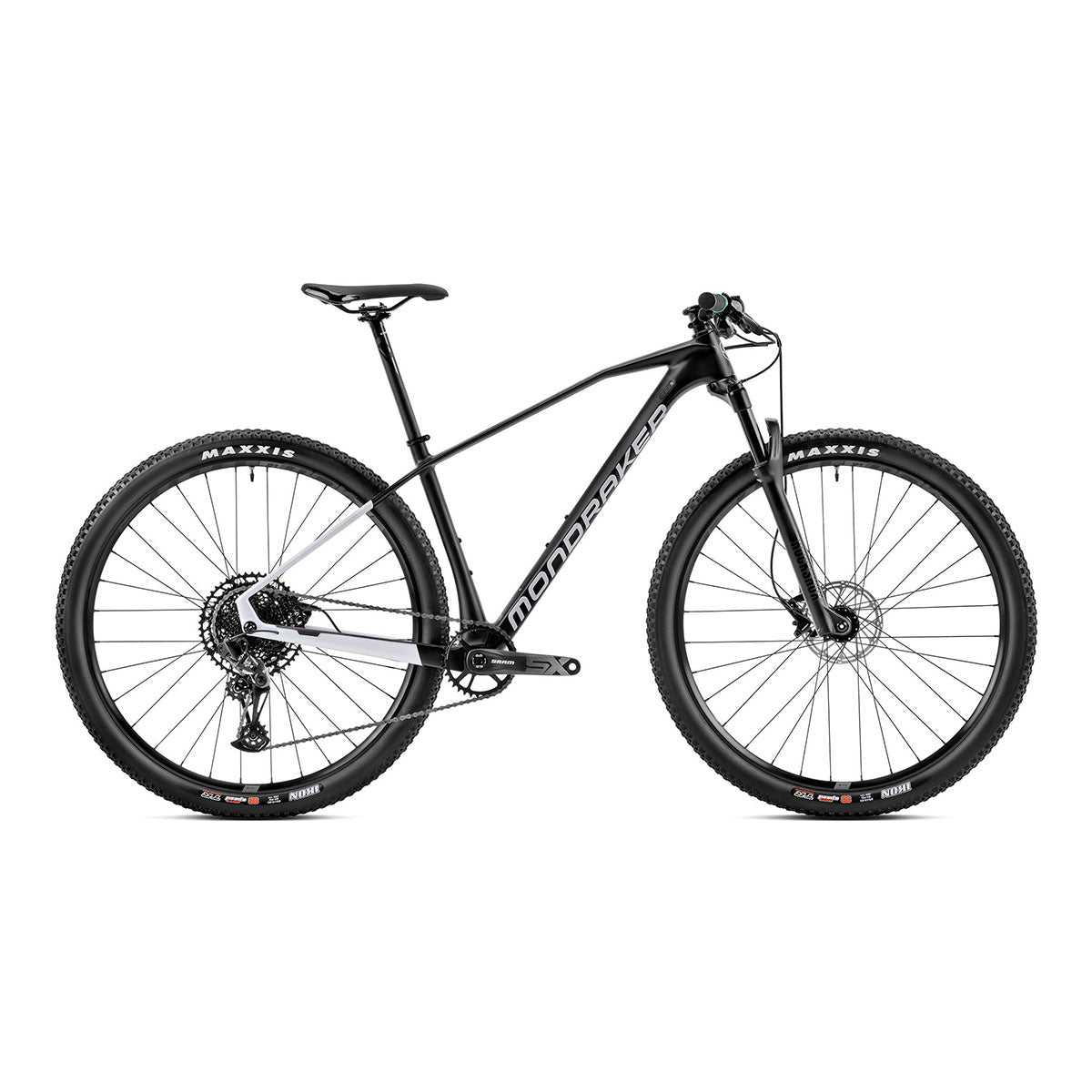

Mondraker - CHRONO CARBON Bike - Carbon/White (XC Pro)

MOND-B-Chro-Carb-Carbon23-S

  • Sale
  • Regular price $3,399.00
ZEITBIKE means FREE SHIPPING on orders over $99 😁👍🏼




Pre-Orders available at (805) 850-3200 or info@zeitbike.com


NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.

DESCRIPTION

Sizes: S: 395mm / M: 430mm / L: 470mm / XL: 520mm
Colors: Matte Carbon / Gloss Dirty White

Experience the Chrono Carbon difference in Cross-country rides and marathons! These stylish and modern XC bikes with race geometry, are also great for urban city riders.

Extending the successful features from Mondraker’s Podium Carbon series, Chrono Carbon features an extremely lightweight design of top-end Podium Carbon in a new Stealth Carbon frame.

XC Racers will love the safety and confidence offered by Mondraker’s proprietary forward geometry design and Flatstays seat stays. Forward geometry helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains. Flatstays seat stays cancel out all riding vibrations to improve rider comfort.

The compact and lighter stealth full carbon frame and HHG internal cable routing help with resistance and mobility for better speed and performance. Mondraker’s proprietary Stealth carbon construction uses specific positioning and direction of carbon fibers to optimize benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.

HHG Internal Cable Routing helps with a minimalistic, clean design. Chrono Carbon XC bikes are race-ready with a full carbon frame, boost rear axle and BSA bottom bracket for enhanced traction and momentum. Chrono Carbon XC has a high-performance suspension system that helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails.

Chrono Carbon XC Pro Bike sports high-performance rear derailleurs and wide 29er, tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME

Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, Comfort Flat chainstays (Flatstays) design

SIZES

S: 395mm / M: 430mm / L: 470mm / XL: 520mm

REAR SHOCK

-

SHOCK SETTINGS

-

FORK

RockShox Judy Gold RL 29, 100mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminum stanchions, offset 51mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload

FORK REMOTE RockShox OneLoc

HEADSET

Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°

STEM

MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5°, length: size S: 60mm, size M: 70mm, size L: 80mm, size XL: 90mm

HANDLEBAR

Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9° backsweep, 0° upsweep, 31.8mm barbore

GRIPS

Onoff Twin, 1lock-on, 135mm

SEATPOST

Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm

SADDLE

Mondraker XC Series, steel rail

FRONT BRAKE

Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

REAR BRAKE

Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

BRAKE LEVER

Sram Level, tooled reach adjust, lever pivot bushings

RIMS

MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes

SPOKES

CN round stainless steel

FRONT HUB

Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts

REAR HUB

Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts

FRONT TIRE

Maxxis Ikon 29x2.20, 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead

REAR TIRE

Maxxis Ikon 29x2.20, 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead

CRANKSET

Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm

RINGS

34T, steel, X-Sync 2

BOTTOM BRACKET

Sram DUB BSA, sealed bearings, 73mm

PEDALS

-

CHAIN

Sram SX Eagle, 12s, Powerlock

FRONT DERAILLEUR

-

REAR DERAILLEUR

Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

SHIFT LEVERS

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

CASSETTE

Sram XG-1230, 11-50T, 12s

MOTOR

-

BATTERY

-

DISPLAY

-

DERAILLEUR HANGER

Mondraker M068

OTHERS

-

WEIGHT

11.3kg



GEOMETRY

MEASUREMENTS / GEOMETRY (Click on image to expand)

Mondraker Chrono Carbon 2022 Geometry

Size

S

M

L

XL

A

Seat Tube Length

395 mm

430 mm

470 mm

520 mm

B

Top Tube Length

590 mm

610 mm

630 mm

650 mm

C

Bottom Bracket Drop

-65 mm

-65 mm

-65 mm

-65 mm

D

Bottom Bracket Height

305 mm

305 mm

305 mm

305 mm

E

Chainstay Length

430 mm

430 mm

430 mm

430 mm

F

Seat Tube Angle, Actual

72°

72°

72°

72°

G

Seat Tube Angle, Effective

73.5°

73.5°

73.5°

73.5°

H

Head Tube Angle

70°

70°

70°

70°

I

Fork Offset

44mm/51mm

44mm/51mm

44mm/51mm

44mm/51mm

J

Wheelbase

1086 mm

1106 mm

1127 mm

1148 mm

K

Head Tube Length

85 mm

90 mm

100 mm

115 mm

L

Reach

411 mm

430 mm

447 mm

463 mm

M

Stack

605 mm

610 mm

619 mm

632 mm
