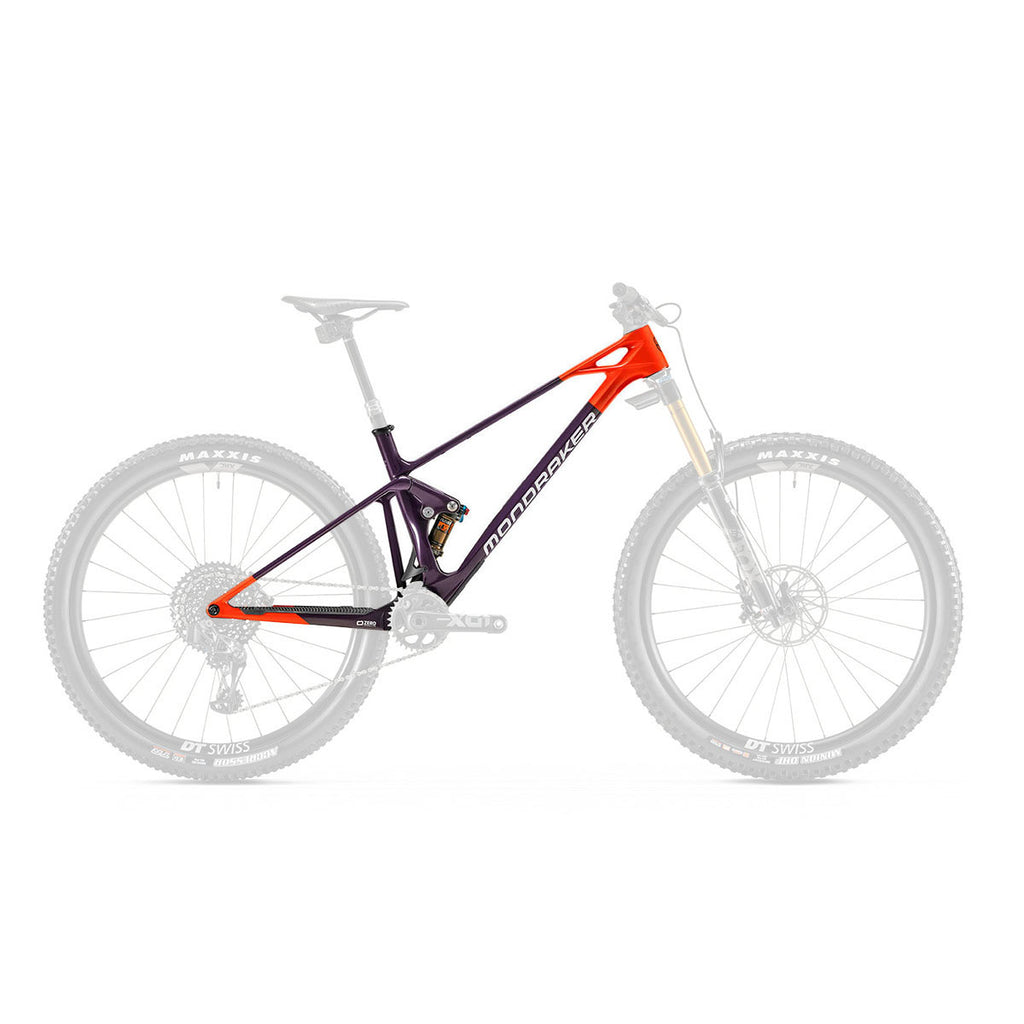

Mondraker - Raze Carbon RR SL Frame Kit - Deep Purple-Flame Red (Trail)

MOND-F-Newtrail-RRSL-Purple22-L

  • Sale
  • Regular price $4,899.00
ZEITBIKE means FREE SHIPPING on orders over $99 😁👍🏼




Pre-Orders available at (805) 850-3200 or info@zeitbike.com


NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.

DESCRIPTION

Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Colors: Deep Purple / Flame Red

ZERO SUSPENSION:
Mondraker’s unique
zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

FORWARD GEOMETRY:
Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary
forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.

STEALTH CARBON AIR:
The proprietary
stealth carbon airframe helps with resistance and mobility for better speed and performance. Stealth Air design delivers aero-style profile, maximum stiffness, lightest weight, and superior compliance ratio, extremely important for mtb riders. Stealth air construction optimizes benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME

Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.

SIZES

S: 380mm / M: 420mm / L: 450mm / XL: 500mm

REAR SHOCK

Fox Float DPS Factory Kashima evol LV, 205x57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

HEADSET

Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing






GEOMETRY

MEASUREMENTS / GEOMETRY(Click on image to expand)

Mondraker Prime + 2021 Bike Geometry

Size

S

M

L

XL

A

Seattube Length

375 mm

415 mm

445 mm

500 mm

B

Top tube Length

595 mm

620 mm

645 mm

670 mm

C

Bottom Bracket Drop

-30 mm

-30 mm

-30 mm

-30 mm

D

Bottom Bracket Height

343 mm

343 mm

343 mm

343 mm

E

Chainstay Length

435 mm

435 mm

435 mm

435 mm

F

Seat Tube Angle

71°

71°

71°

71°

G

Effective Seat Tube Angle

76.5°

76.5°

76.5°

76.5°

H

Headtube Angle

65.5°

65.5°

65.5°

65.5°

I

Fork Offset

44 mm

44 mm

44 mm

44 mm

J

Wheelbase

1193 mm

1217 mm

1243 mm

1269 mm

K

Headtube Length

90 mm

100 mm

115 mm

130 mm

L

Reach

455 mm

475 mm

495 mm

515 mm

M

Stack

608 mm

617 mm

631 mm

645 mm

RESOURCES

Bike Size Guide (Click on image to zoom in)

Raze RR SL Setup (Click to open in new window). Or download using the viewer below
