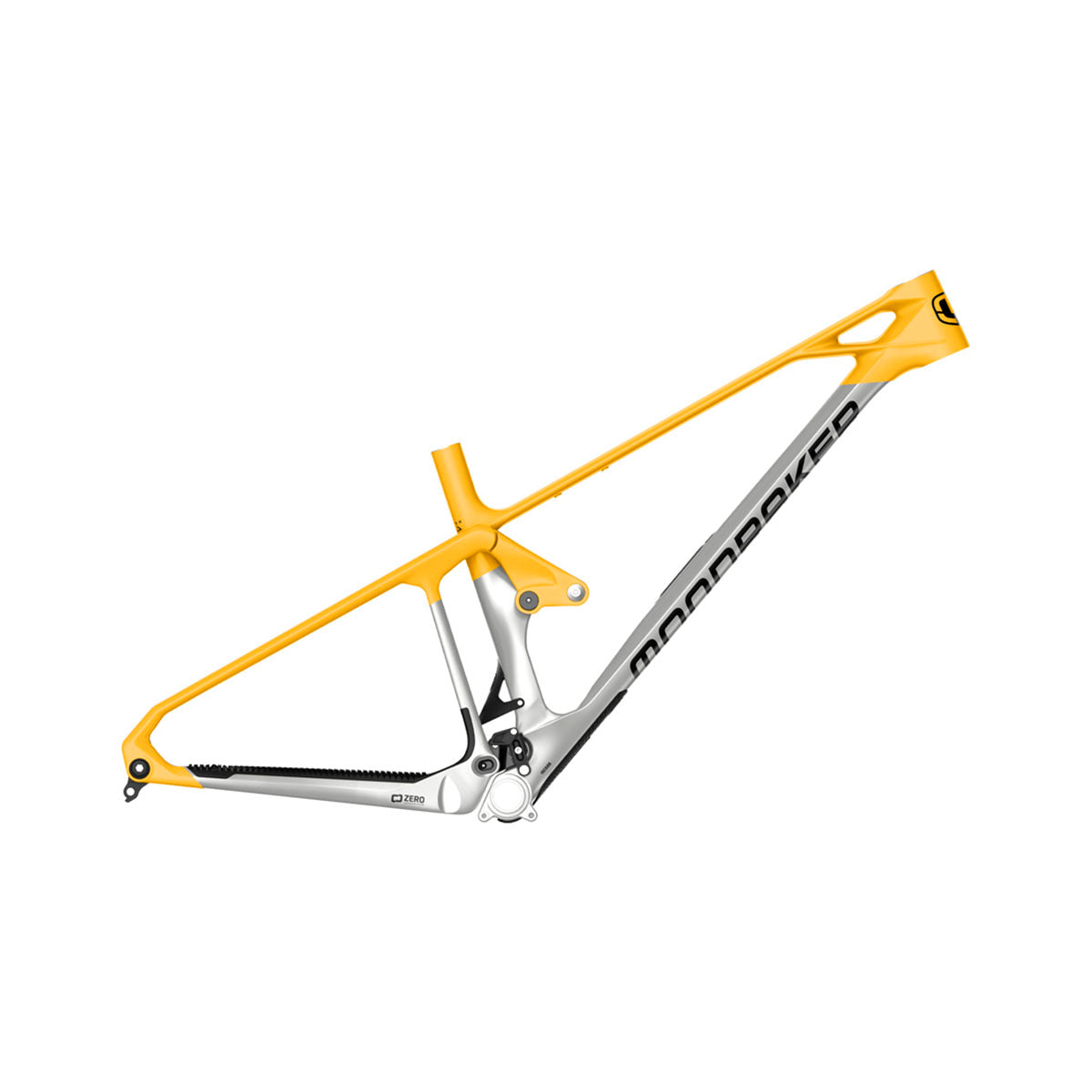

Mondraker - FOXY CARBON XR Frame Kit - Silver/Yellow (ENDURO/AM)

MOND-F-Foxy-CarbXR-Silver23-S

  • Sale
  • Regular price $5,599.00
ZEITBIKE means FREE SHIPPING on orders over $99 😁👍🏼




Pre-Orders available at (805) 850-3200 or info@zeitbike.com


Frame Kit for Mondraker Foxy Carbon XR Bike 2023

NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.


DESCRIPTION

Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Colors: Gloss Racing Silver / Yellow

Zero Suspension: Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This XCO optimized suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

Forward Geometry: Extreme XC racers will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.

Stealth Carbon Air: The proprietary stealth carbon airframe helps with resistance and mobility for better speed and performance. Stealth Air design delivers aero-style profile, maximum stiffness, lightest weight, and superior compliance ratio, extremely important for mtb riders.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME

Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry,aluminium CSC upper link with carbon bridge, Boost 12x148mm rear axle, tapered head tube, 73mmBSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealedbearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry Kit

SIZES

S: 380mm / M: 420mm / L: 450mm / XL: 500mm

REAR SHOCK

Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

HEADSET

Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

GEOMETRY

MEASUREMENTS / GEOMETRY

Size

S

M

L

XL

A

Seat Tube Length

375 mm

415 mm

445 mm

500 mm

B

Top Tube Length

600 mm

620 mm

650 mm

670 mm

C

Bottom Bracket Drop

-20 mm

-20 mm

-20 mm

-20 mm

D

Bottom Bracket Height

354 mm

354 mm

354 mm

354 mm

E

Chainstay Length

435 mm

435 mm

435 mm

435 mm

F

Seat Tube Angle, Actual

70.2°

70.2°

70.2°

70.2°

G

Seat Tube Angle, Effective

75.5°

75.5°

75.5°

75.5°

H

Head Tube Angle

64.5°

64.5°

64.5°

64.5°

I

Fork Offset

44 mm

44 mm

44 mm

44 mm

J

Wheelbase

1208 mm

1231 mm

1257 mm

1283 mm

K

Head Tube Length

90 mm

100 mm

115 mm

130 mm

L

Reach

445 mm

465 mm

485 mm

505 mm

M

Stack

617 mm

627 mm

641 mm

655 mm

BIKE SIZE GUIDE

Bike Size Guide (Click on image to zoom in)
