Overview

FOR DIRT JUMPING & PUMP TRACKS: Due to the extremely short rear end, the bike is extremely maneuverable and enables agile handling, which street and park riders in particular appreciate. On dirt jumps, the ruler remains extremely flexible during the flight phase. This makes it easier to initiate tricks and turns. The short rear end also has a positive effect on the pump tracks, as it enables fast acceleration when pushing.

HIGH QUALITY 100% CHROMO STEEL: The Ruler Pro feels at home where dirt, street or pump track is ridden. This full-fledged dirt and street bike comes with a 100% seamless CroMo steel frame and high-quality components. The Ruler is a solid and reliable complete bike that was designed out of the box for sporting use.

HIGH END BMX FRAME: Since the middle of 2010, the Ruler frame has been handcrafted in one of the best BMX frame forges. Many high-end frames from the most well-known BMX brands come from this bike forge, and not without reason.

AGILE & DURABLE: The Ruler frame has been given a tapered head tube from 2021 season. This means that most standard dirt-jumping suspension forks can be installed. In addition, the geometry has been optimized for more travel (100 mm) and the reach has been lengthened slightly. Despite these measures, the Ruler does not lose its agility.

DEVELOPED BY RIDERS: Developed by passionate riders, Leafcycles Ruler Pro has been designed with all the essential design elements for the best performance for MTB riders.

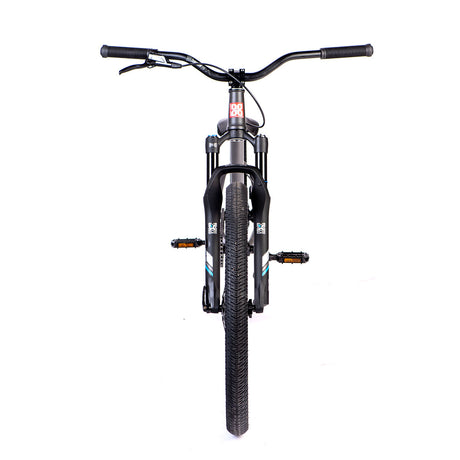

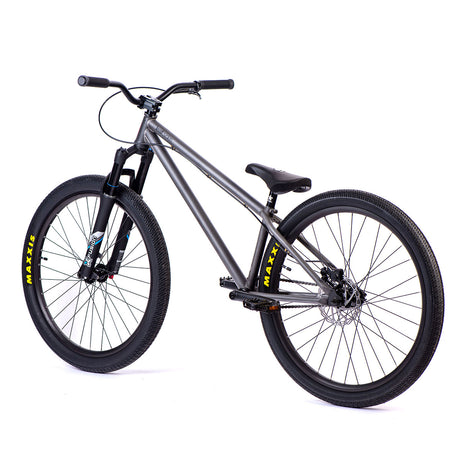

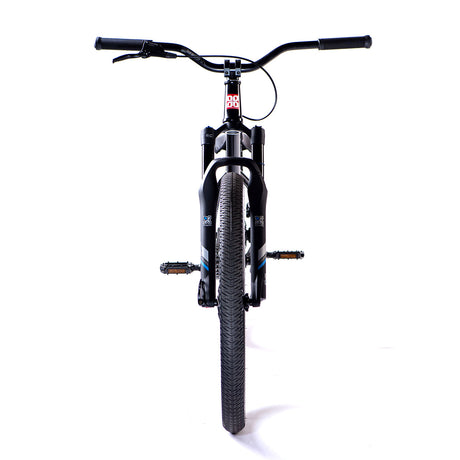

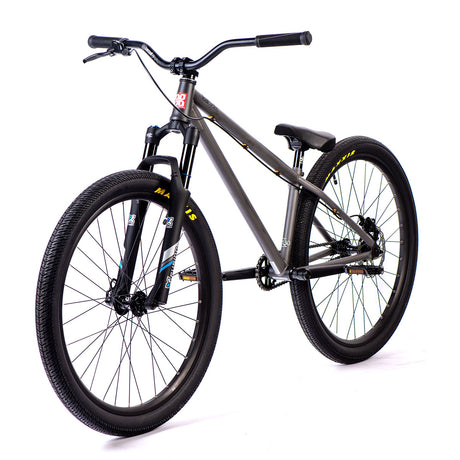

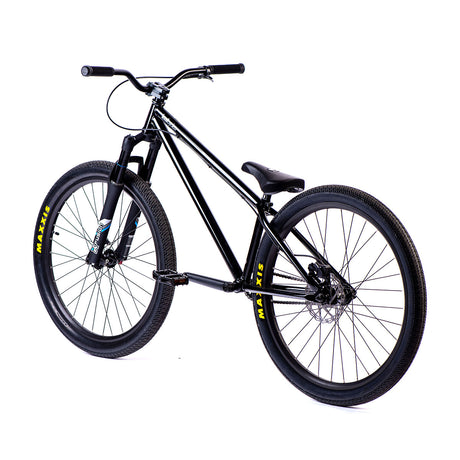

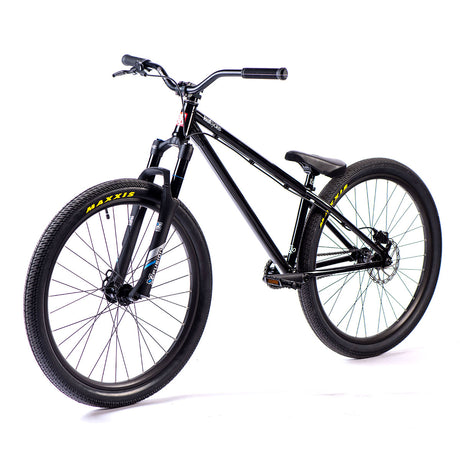

Leafcycle Ruler Spec List

Frame : Leafcycle's Ruler | 100% seamless CroMo | tapered HT
Fork : Fork: X-Fusion Slant RC 100 mm | tapered | 15mm thru axle
Headset : Leafcycles Sputnic tapered 1 1/8″ – 1 1.5″ (28.6 mm / 40 mm)
Stem : Cartel Sector Stem | forged AL-6061
Handlebar : Backyard bar Mid 68mm rise | AL-6061
Grips : DG Grip Division | Onion Grip
Rims: Kartell Santana Dirt AL-6061
Rear Brake : Tektro HD-M275 hydraulic | 160mm disc
Tires : Kenda 26×2.1 60TPI
Front Hub : Kartell Dirt Pro | Sealed bearings with rotor disc mount
Rear Hub : Kartell Dirt Pro | sealed bearings | 11T driver sealed
Spokes : Stainless steel
Chain : KMC 510H
BB Set : Spanish BB sealed bearings
Cranks : Cartel Division 175 | 19mm spindle 48T | 2-pc CroMo crank
Sprocket : Leafcycles Little Vamp 25T | AL-6061
Pedals : Odyssey Twisted PVC 9/16″ (14 mm) loose ball
Saddle & Seatpost : Kartell Stereo Seat Combo | Ø 27.2 mm
Weight : 12 kg including pedals

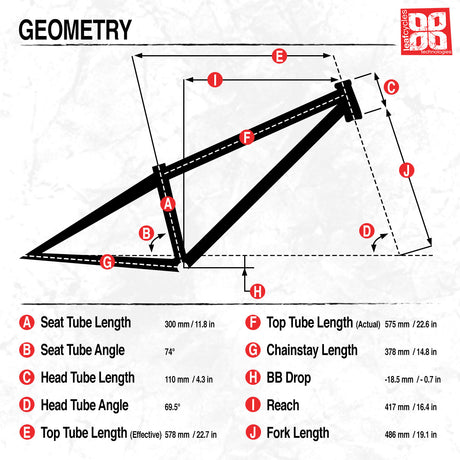

Frame Specifications

Material: 100% chromoly steel | TIG welds
Suspension fork: recommended suspension travel 100 mm
Fork: suitable for forks 1.5″ – 1 1/8″ (28.6 mm / 40 mm) tapered
Headset : integrated tapered IS42/IS52
Seatpost : integrated, ø27.2mm
Seat clamp: integrated
Installation dimensions rear hub: 135×10 mm
BB: 68mm shell width for spanish BB press-fit bearings
Disc brake mount: IS-2000 | max. 180 mm | recommended 160mm
Chainring: max. 30 teeth
Tire size: max. 26" x 2.3" (≈ 58 mm tire width)
Brake Cable Guides: Soldered
Rotor Mount: None
Weight : 2.5 kg

Features

High-quality 100% CroMo steel frame
Butted Tube Sets | Custom butted DT
TIG welds
Area of use: Dirt Jumping, Pump Track, Street & Park
Developed by riders for riders
