Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.
DESCRIPTION
Sizes: XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm
Colors: Gloss Black / Marlin Blue

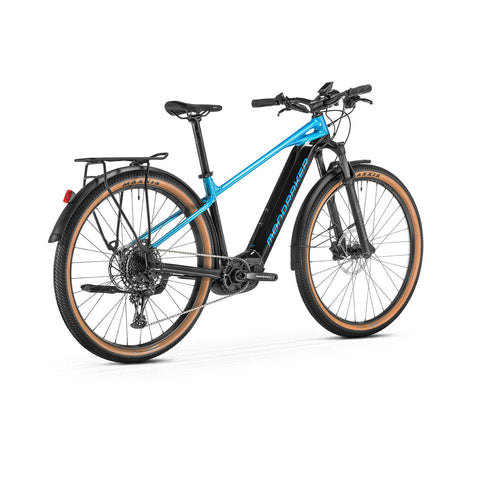

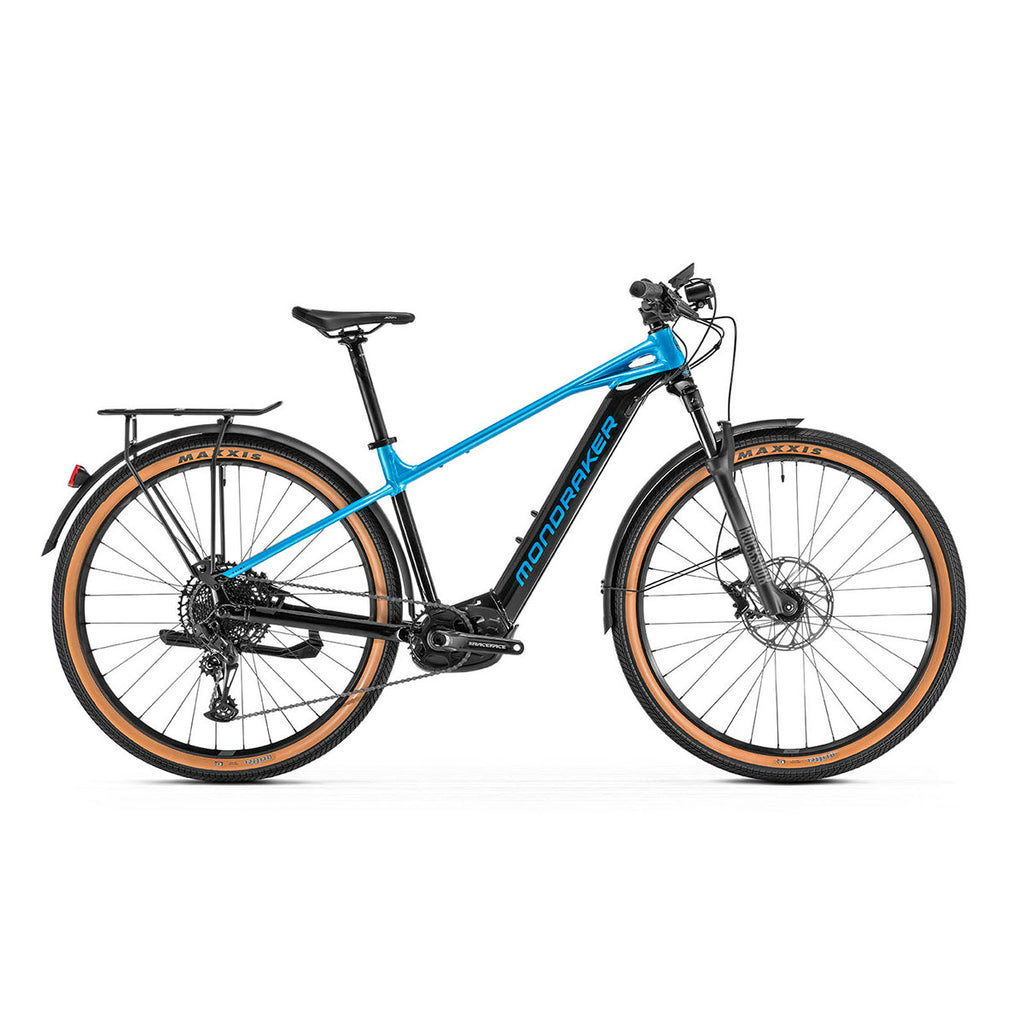

Get ready to experience the thrill with the Prime RX 29 e-MTB bike designed for enduro, trail and all-mountain riding! This top-end emountain bike is a beauty to show off.
Unleash the power of the upgraded Bosch Performance Line CX GEN4 engine, backed by an integrated 750 Wh Power Tube battery, both seamlessly concealed inside a durable frame to handle the rigors of mountain bike riding. Upgrades also include a new display unit and handlebar mounted control module. Bosch smart eBike system consisting of eBike Flow app, control unit, display, batter, and drive unit offers a customized bike experience for users.
2022 Upgrades
-
Performance Line CX is sporty and economical and offers the benefits of increased torque for eMountain biking, intuitive handling for switching between riding modes, maximum agility on rigorous trails, and riding modes for personalized ride management.
- Powertube 750 provides a reliable power source for extended driving distances.
- LED Remote acts as a fully connected control center for optimal readability, smart connectivity, smart walk assist, ergonomic handling, and sustainability on the move.
- KIOX 300 display supports fun features, easy to read, sleek design, positioning flexibility, and helpful support.
- eBike Flow App helps with personalizing your ride with enhancement features, recording activities, customization of riding modes, and other upgraded features.
Zero Suspension: Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Stealth Alloy Frame: The compact and lighter engine design and stealth alloy frame help with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
Forward Geometry: High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.
SPECS
COMPONENTS / TECHNICAL SPECIFICATION
|
FRAME |
Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal non-removable battery, tapered headtube, Boost 12x148mm rear axle, integrated dropout speed sensor |
|
SIZES |
XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm |
|
REAR SHOCK |
- |
|
SHOCK SETTINGS |
- |
|
FORK |
RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
|
HEADSET |
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°,bottom 51.9x40x8x45°x45° |
|
STEM |
Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore |
|
HANDLEBAR |
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep,31.8mm barbore |
|
GRIPS |
Onoff Diamond, 1lock-on, 135mm |
|
SEATPOST |
Ono Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm |
|
SADDLE |
Fizik Terra Aidon X5 145mm |
|
FRONT BRAKE |
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
|
REAR BRAKE |
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
|
BRAKE LEVER |
Sram G2 R, tool-free reach adjust |
|
RIMS |
MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes |
|
SPOKES |
CN round stainless steel |
|
FRONT HUB |
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts |
|
REAR HUB |
Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts |
|
FRONT TIRE |
Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall |
|
REAR TIRE |
axxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall |
|
CRANKSET |
Race Face Aeffect ebike, 165mm |
|
RINGS |
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
|
BOTTOM BRACKET |
- |
|
PEDALS |
- |
|
CHAIN |
Sram SX Eagle, 12s, Powerlock |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
|
SHIFT LEVERS |
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
|
CASSETTE |
Sram PG-1210, 11-50T, 12s |
|
MOTOR |
Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3 |
|
BATTERY |
Bosch Powertube 750Wh |
|
DISPLAY |
Bosch Kiox 300 |
|
DERAILLEUR HANGER |
Mondraker M068 |
|
OTHERS |
Front light: 50LUX output DC 6-12V, waterproof Alloy cage. Rear Light: Fender Mount, w/ Reflective, e-bike version, 6-12V. Fenders: Alloy black MDK custom fenders. Rack: Alloy MDK rear Rack, Max loading 25kg. Kickstand: Massload KSA18-40 |
|
WEIGHT |
- |
GEOMETRY
MEASUREMENTS / GEOMETRY (Click on image to expand)
|
Size |
XS |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
380 mm |
390 mm |
430 mm |
470 mm |
510 mm |
|
B |
Top Tube Length |
600 mm |
615 mm |
645 mm |
670 mm |
700 mm |
|
C |
Bottom Bracket Drop |
-60 mm |
-60 mm |
-60 mm |
-60 mm |
-60 mm |
|
D |
Bottom Bracket Height |
318 mm |
318 mm |
318 mm |
318 mm |
318 mm |
|
E |
Chainstay Length |
455 mm |
455 mm |
455 mm |
455 mm |
455 mm |
|
F |
Seat Tube Angle, Actual |
73.5° |
73.5° |
73.5° |
73.5° |
73.5° |
|
G |
Seat Tube Angle, Effective |
73.5° |
73.5° |
73.5° |
73.5° |
73.5° |
|
H |
Head Tube Angle |
69° |
69° |
69° |
69° |
69° |
|
I |
Fork Offset |
51 mm |
51 mm |
51 mm |
51 mm |
51 mm |
|
J |
Wheelbase |
1138mm |
1153 mm |
1183 mm |
1210 mm |
1240 mm |
|
K |
Head Tube Length |
110 mm |
110 mm |
110 mm |
130 mm |
130 mm |
|
L |
Reach |
410 mm |
425 mm |
455 mm |
480 mm |
505 mm |
|
M |
Stack |
640 mm |
640 mm |
640 mm |
658 mm |
658 mm |
RESOURCES
Bike Size Guide (Click on image to zoom in)
