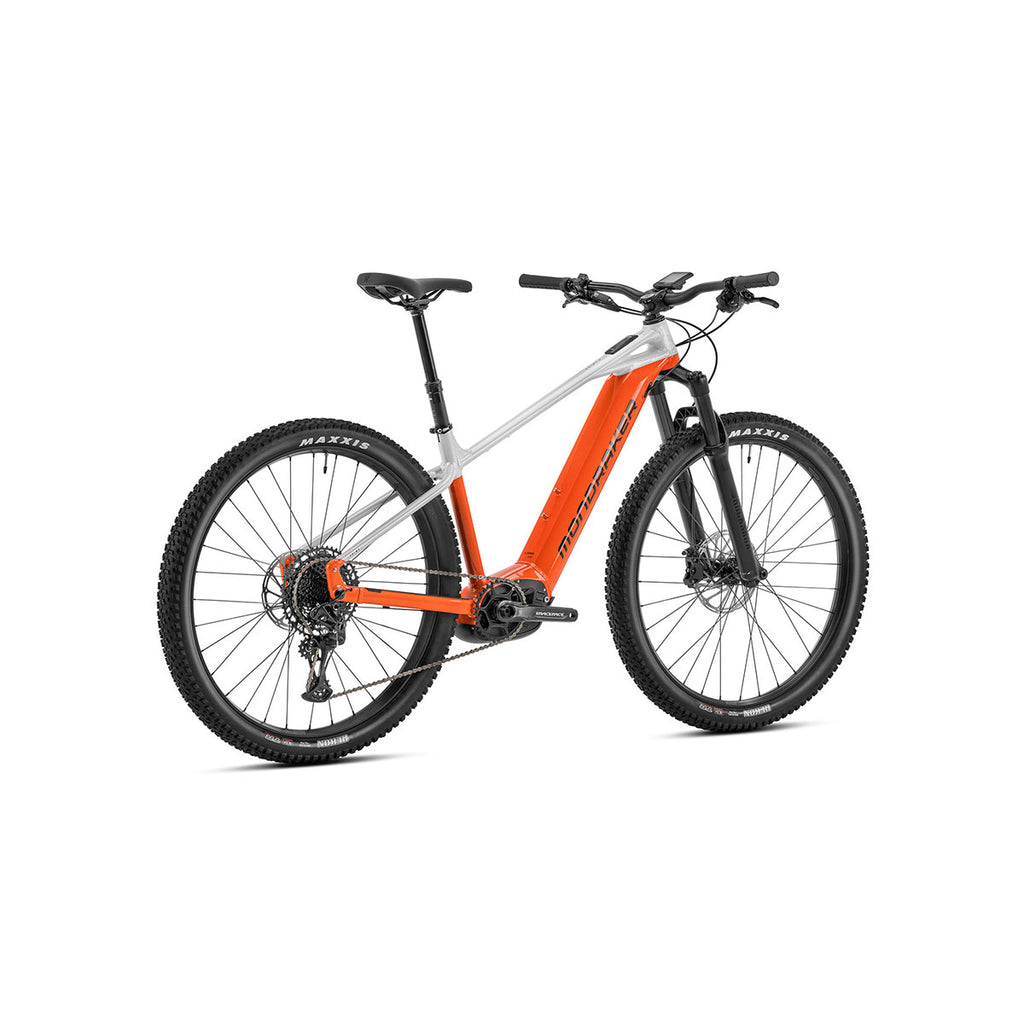

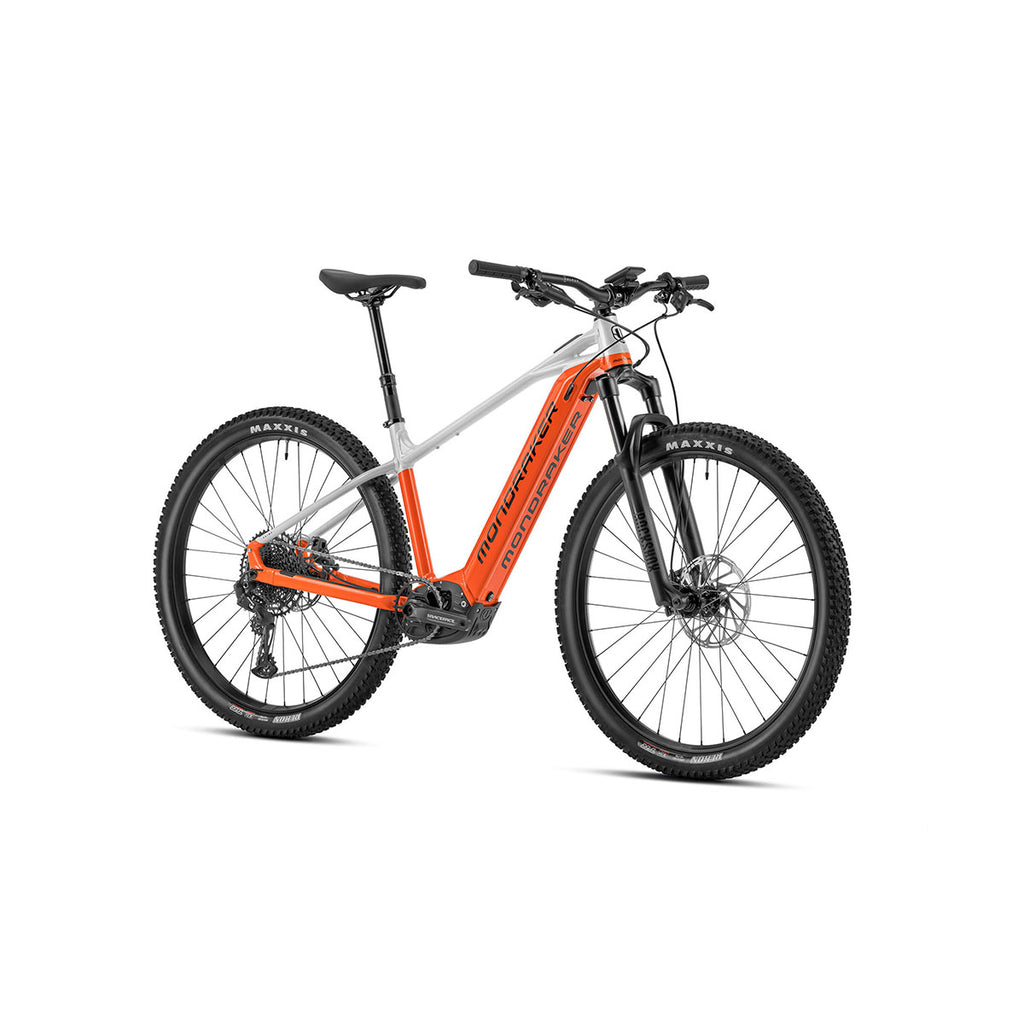

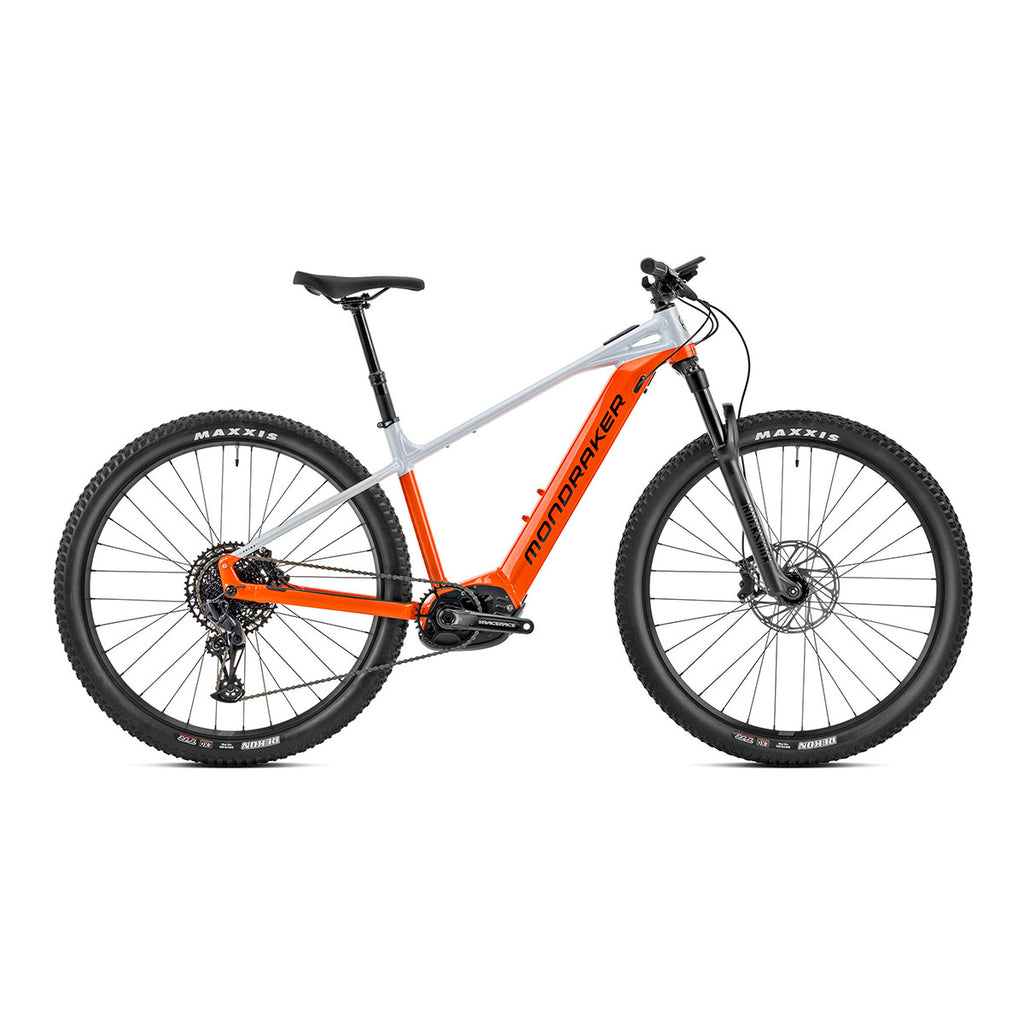

Mondraker - PRIME R Bike - Orange/White (e-MTB Trail | 2023)

MOND-B-Prime-R-Orange23-XS

  • Sale
  • Regular price $6,599.00
Shipping calculated at checkout.


Pre-Orders available at (805) 850-3200 or info@zeitbike.com


NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.

DESCRIPTION

Sizes: XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm
Colors: Gloss Orange / Dirty White

Get ready to experience the thrill with the Prime R 29 e-MTB bike designed for enduro, trail and all-mountain riding! This top-end emountain bike is a beauty to show off.

Unleash the power of the upgraded Bosch Performance Line CX engine, backed by an integrated 750 Wh Power Tube battery, both seamlessly concealed inside a durable frame to handle the rigors of mountain bike riding. Upgrades also include a new display unit and handlebar mounted control module. Bosch smart eBike system consisting of eBike Flow app, control unit, display, batter, and drive unit offers a customized bike experience for users.

    Zero Suspension: Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

    Stealth Alloy Frame: The compact and lighter engine design and stealth alloy frame help with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.

    Forward Geometry: High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.

    SPECS

    COMPONENTS / TECHNICAL SPECIFICATION

    FRAME

    Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal removable battery, tapered headtube, Boost 12x148mm rear axle, integrated dropout speed sensor

    SIZES

    XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm

    REAR SHOCK

    -

    SHOCK SETTINGS

    -

    FORK

    RockShox 35 Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

    HEADSET

    Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°,bottom 51.9x40x8x45°x45°

    STEM

    Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore

    HANDLEBAR

    Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep,31.8mm barbore

    GRIPS

    Onoff Twin, 1lock-on, 135mm

    SEATPOST

    Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

    SADDLE

    MDK ebike black

    FRONT BRAKE

    Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

    REAR BRAKE

    Sram DB8, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

    BRAKE LEVER

    Sram DB8, tool-free reach adjust

    RIMS

    MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes

    SPOKES

    CN round stainless steel

    FRONT HUB

    Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts

    REAR HUB

    Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts

    FRONT TIRE

    Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

    REAR TIRE

    Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

    CRANKSET

    Race Face Aeffect ebike, 165mm

    RINGS

    Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

    BOTTOM BRACKET

    -

    PEDALS

    -

    CHAIN

    Sram SX Eagle, 12s, Powerlock

    FRONT DERAILLEUR

    -

    REAR DERAILLEUR

    Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

    SHIFT LEVERS

    Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click

    CASSETTE

    Sram PG-1210, 11-50T, 12s

    MOTOR

    Bosch Performance Line CX Cruise (25Km/h) Smart System

    BATTERY

    Bosch Powertube 750Wh

    DISPLAY

    Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller

    DERAILLEUR HANGER

    Mondraker M068

    OTHERS

    -

    WEIGHT

    23.3kg



    GEOMETRY

    MEASUREMENTS / GEOMETRY (Click on image to expand)

    Mondraker Prime R Bike Geometry

    Size

    XS

    S

    M

    L

    XL

    A

    Seat Tube Length

    380 mm

    390 mm

    430 mm

    470 mm

    510 mm

    B

    Top Tube Length

    600 mm

    615 mm

    645 mm

    670 mm

    700 mm

    C

    Bottom Bracket Drop

    -60 mm

    -60 mm

    -60 mm

    -60 mm

    -60 mm

    D

    Bottom Bracket Height

    318 mm

    318 mm

    318 mm

    318 mm

    318 mm

    E

    Chainstay Length

    455 mm

    455 mm

    455 mm

    455 mm

    455 mm

    F

    Seat Tube Angle, Actual

    73.5°

    73.5°

    73.5°

    73.5°

    73.5°

    G

    Seat Tube Angle, Effective

    73.5°

    73.5°

    73.5°

    73.5°

    73.5°

    H

    Head Tube Angle

    69°

    69°

    69°

    69°

    69°

    I

    Fork Offset

    51 mm

    51 mm

    51 mm

    51 mm

    51 mm

    J

    Wheelbase

    1138mm

    1153 mm

    1183 mm

    1210 mm

    1240 mm

    K

    Head Tube Length

    110 mm

    110 mm

    110 mm

    130 mm

    130 mm

    L

    Reach

    410 mm

    425 mm

    455 mm

    480 mm

    505 mm

    M

    Stack

    640 mm

    640 mm

    640 mm

    658 mm

    658 mm

    RESOURCES

    Spare Parts
    Suspension Setup

    SIZE GUIDE

    Bike Size Guide (Click on image to zoom in)
