DESCRIPTION
Sizes: XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm
Colors: Gloss Black / Racing Silver
Also available in Gloss Marlin Blue / Black

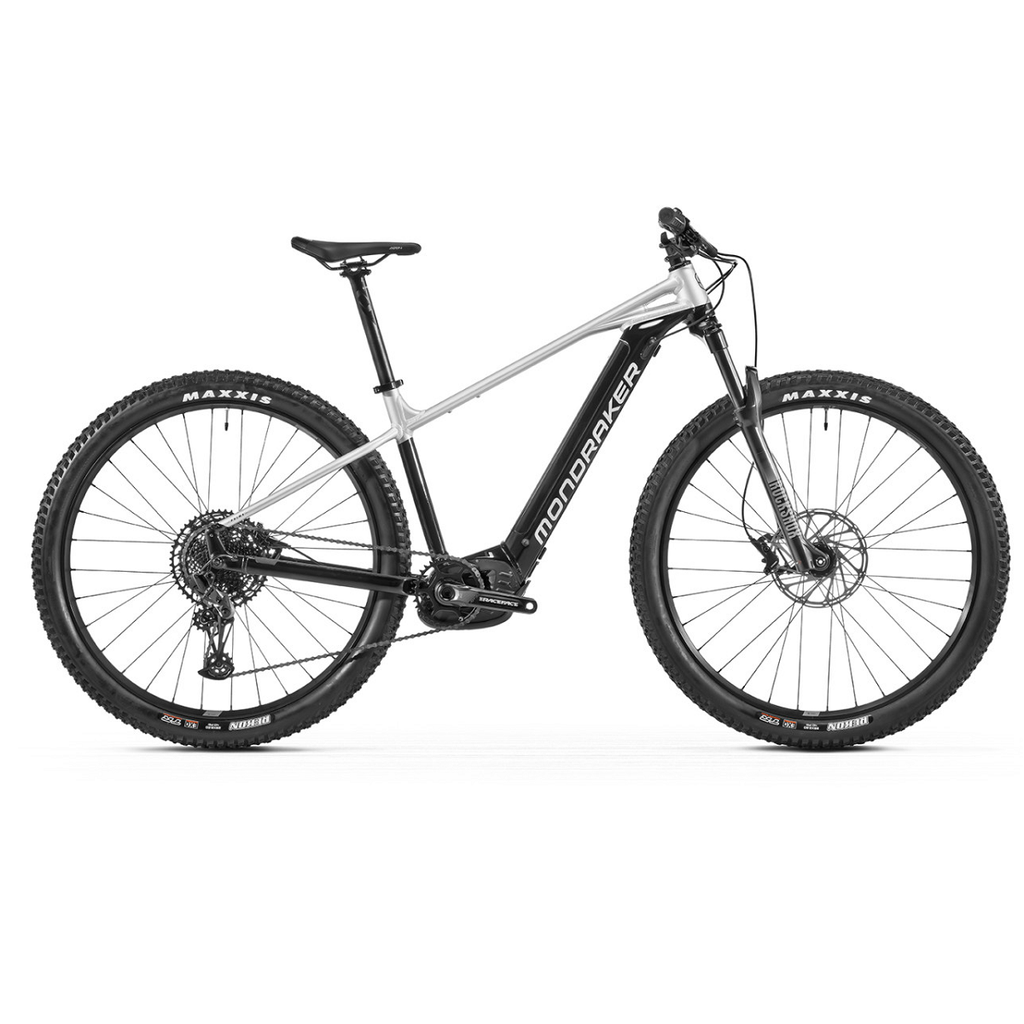

Get ready to experience the thrill with the Prime + e-MTB bike designed for enduro, trail and all-mountain riding! This top-end emountain bike is a beauty to show off.
Unleash the power of the Bosch Performance Line CX engine, backed by an integrated 625 Wh Bosch PowerTube battery, both seamlessly concealed inside an Xtralite full butted alloy frame to handle the rigors of mountain bike riding.
The compact and lighter engine design and stealth alloy frame help with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.
Prime Plus uses an enhanced full suspension that helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. Prime + Ebike sports high-performance rear derailleurs, integrated dropout speed sensor, boost rear axle, and 27.5” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.
Riding stats are just a few clicks away on the Purion onboard computer, easily accessible on the handlebar, without getting distracted from the track. Mountain bikers can easily switch between Turbo, eMTB, Tour, and Eco riding modes, making the Prime + e-MTB bike the perfect choice for off-road adventures.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
| Model: | PRIME + |
|
FRAME |
Prime 6061 Xtralite Full Butted Alloy, Forward Geometry, internal removable battery, tapered headtube, Boost 12x148mm rear axle, integrated dropout speed sensor |
|
SIZES |
XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm |
|
REAR SHOCK |
- |
|
SHOCK SETTINGS |
- |
|
FORK |
RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
|
HEADSET |
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°,bottom 51.9x40x8x45°x45° |
|
STEM |
Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore |
|
HANDLEBAR |
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep,31.8mm barbore |
|
GRIPS |
Onoff Diamond, 1lock-on, 135mm |
|
SEATPOST |
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm |
|
SADDLE |
Fizik Terra Aidon X5 145mm |
|
FRONT BRAKE |
Sram Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad |
|
REAR BRAKE |
Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
|
BRAKE LEVER |
Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings |
|
RIMS |
MDK-HP1 27´5+, 35mm internal width, tubeless ready, 32 spokes |
|
SPOKES |
CN round stainless steel |
|
FRONT HUB |
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts |
|
REAR HUB |
Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts |
|
FRONT TIRE |
Maxxis Rekon+ 27´5x2.8, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
|
REAR TIRE |
Maxxis Rekon+ 27´5x2.8, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
|
CRANKSET |
Race Face Aeffect ebike, 165mm |
|
RINGS |
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
|
BOTTOM BRACKET |
- |
|
PEDALS |
- |
|
CHAIN |
Sram SX Eagle, 12s, Powerlock |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
|
SHIFT LEVERS |
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
|
CASSETTE |
Sram PG-1210, 11-50T, 12s |
|
MOTOR |
Bosch Performance Line CX Cruise (25Km/h) GEN4 |
|
BATTERY |
Bosch Powertube 625Wh |
|
DISPLAY |
Bosch Purion |
|
DERAILLEUR HANGER |
Mondraker M068 |
|
OTHERS |
- |
|
WEIGHT |
- |
GEOMETRY
MEASUREMENTS / GEOMETRY(Click on image to expand)
|
Size |
XS |
S |
M |
L |
XL |
|
|
A |
Seattube Length |
380 mm |
390 mm |
430 mm |
470 mm |
510 mm |
|
B |
Top tube Length |
600 mm |
615 mm |
645 mm |
670 mm |
700 mm |
|
C |
Bottom Bracket Drop |
-60 mm |
-60 mm |
-60 mm |
-60 mm |
-60 mm |
|
D |
Bottom Bracket Height |
305 mm |
305 mm |
305 mm |
305 mm |
305 mm |
|
E |
Chainstay Length |
455 mm |
455 mm |
455 mm |
455 mm |
455 mm |
|
F |
Seat Tube Angle |
73.5° |
73.5° |
73.5° |
73.5° |
73.5° |
|
G |
Effective Seat Tube Angle |
73.5° |
73.5° |
73.5° |
73.5° |
73.5° |
|
H |
Headtube Angle |
69° |
69° |
69° |
69° |
69° |
|
I |
Fork Offset |
51 mm |
51 mm |
51 mm |
51 mm |
51 mm |
|
J |
Wheelbase |
1138mm |
1153 mm |
1183 mm |
1210 mm |
1240 mm |
|
K |
Headtube Length |
110 mm |
110 mm |
110 mm |
130 mm |
130 mm |
|
L |
Reach |
410 mm |
425 mm |
455 mm |
480 mm |
505 mm |
|
M |
Stack |
640 mm |
640 mm |
640 mm |
658 mm |
658 mm |
RESOURCES
Bike Size Guide (Click on image to zoom in)
Specs for all 2022 Bikes (Click to open in new window). Or download using the viewer below
