DESCRIPTION
Size: One size 260 mm

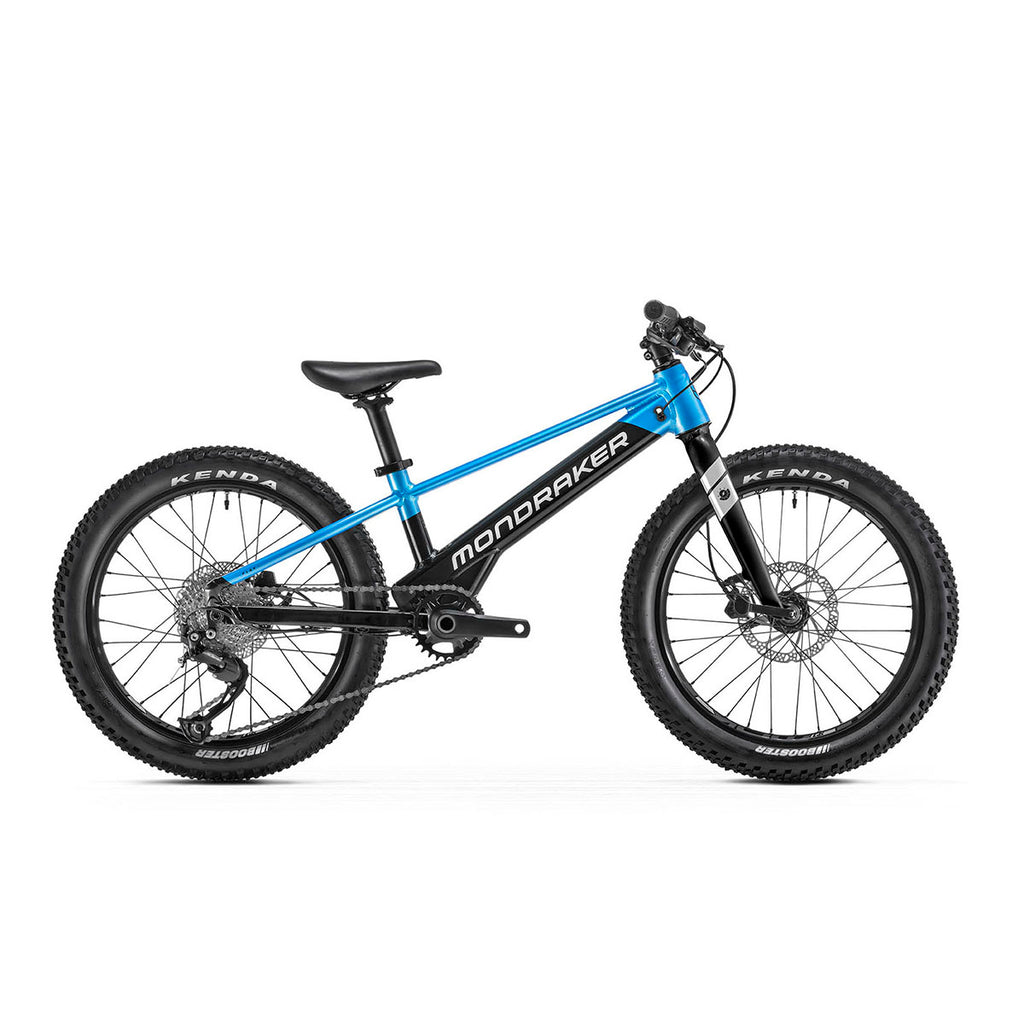

Colors: Gloss Black / Marlin Blue
Young bikers can now experience the thrills of mountain biking with PLAY 20! This kids’ sports E-bike is packed with mountain bike features tailored towards children who want to get started on trail-shredding rides.
Unleash the power of the Mahle-Ebikemotion X-35 motor, backed by an integrated Mahle-Ebikemotion Internal 250Wh battery, both seamlessly concealed inside a durable stealth alloy frame to handle the rigors of mountain bike riding.
Mondraker’s high-performance suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. Young racers will love the safety and confidence offered by Mondraker’s modern geometry that helps with improved handling, overall control, uphill precision, and stability in tough terrains.
The durable stealth alloy frame helps with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
Play 20 sports high-performance rear derailleurs, threaded bottom bracket, and 20” tires, for ultimate precision and grip through uneven and rough trails. Young riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.
Play 20 is loaded with a dedicated 1X drivetrain compatible design for better traction and momentum. This kid bike is designed to suit young riders, with a junior handlebar, grips, and saddle. Riding stats are just a few clicks away on the Mahle-Ebikemotion display, easily accessible on the handlebar, without getting distracted from the track.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
Play 20 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery,Tapered head tube, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible |
|
SIZES |
One size: 260mm |
|
REAR SHOCK |
- |
|
SHOCK SETTINGS |
- |
|
FORK |
MDK 20 Kid, Rigid alloy Stealth stanchions, Post Mount disc brake mount |
|
HEADSET |
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°,bottom 51.9x40x8x45°x45° |
|
STEM |
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
|
HANDLEBAR |
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 580mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
|
GRIPS |
Kids |
|
SEATPOST |
MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 250mm |
|
SADDLE |
SDG Fly JR |
|
FRONT BRAKE |
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
|
REAR BRAKE |
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
|
BRAKE LEVER |
Sram Level, tooled reach adjust, lever pivot bushings |
|
RIMS |
MDK-XP1 20 TLR, 25mm internal width, tubeless ready, 32 spokes |
|
SPOKES |
CN round stainless steel |
|
FRONT HUB |
Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts |
|
REAR HUB |
Mahle-Ebikemotion X-35 |
|
FRONT TIRE |
Kenda Booster 20x2.4 single compound 30TPI, wire bead |
|
REAR TIRE |
Kenda Booster 20x2.4 single compound 30TPI, wire bead |
|
CRANKSET |
Prowheel, Direct mount chain ring, 114mm |
|
RINGS |
28T, steel |
|
BOTTOM BRACKET |
Samox BSA, 73mm |
|
PEDALS |
- |
|
CHAIN |
Sram PC951 9s, Powerlock |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Microshift M26S, 9s, short cage |
|
SHIFT LEVERS |
Microshift Mezzo TS39-9, 9s |
|
CASSETTE |
Microshift Mezzo 11-34T, 9s |
|
MOTOR |
Mahle-Ebikemotion X-35 |
|
BATTERY |
Mahle-Ebikemotion Internal 250Wh |
|
DISPLAY |
Mahle-Ebikemotion |
|
DERAILLEUR HANGER |
Mondraker M073 |
|
OTHERS |
- |
|
WEIGHT |
- |
GEOMETRY
MEASUREMENTS / GEOMETRY
(Click on image to expand)
|
Size |
20 |
|
|
A |
Seat Tube Length |
260 mm |
|
B |
Top Tube Length |
475 mm |
|
C |
Bottom Bracket Drop |
-15 mm |
|
D |
Bottom Bracket Height |
240 mm |
|
E |
Chainstay Length |
355 mm |
|
F |
Seat Tube Angle, Actual |
72º |
|
G |
Seat Tube Angle, Effective |
72º |
|
H |
Head Tube Angle |
68º |
|
I |
Fork Offset |
45 mm |
|
J |
Wheelbase |
903 mm |
|
K |
Head Tube Length |
100 mm |
|
L |
Reach |
340 mm |
|
M |
Stack |
387 mm |
