DESCRIPTION
Size: One size 350 mm
Colors: Gloss Deep Purple / Black / Light Blue

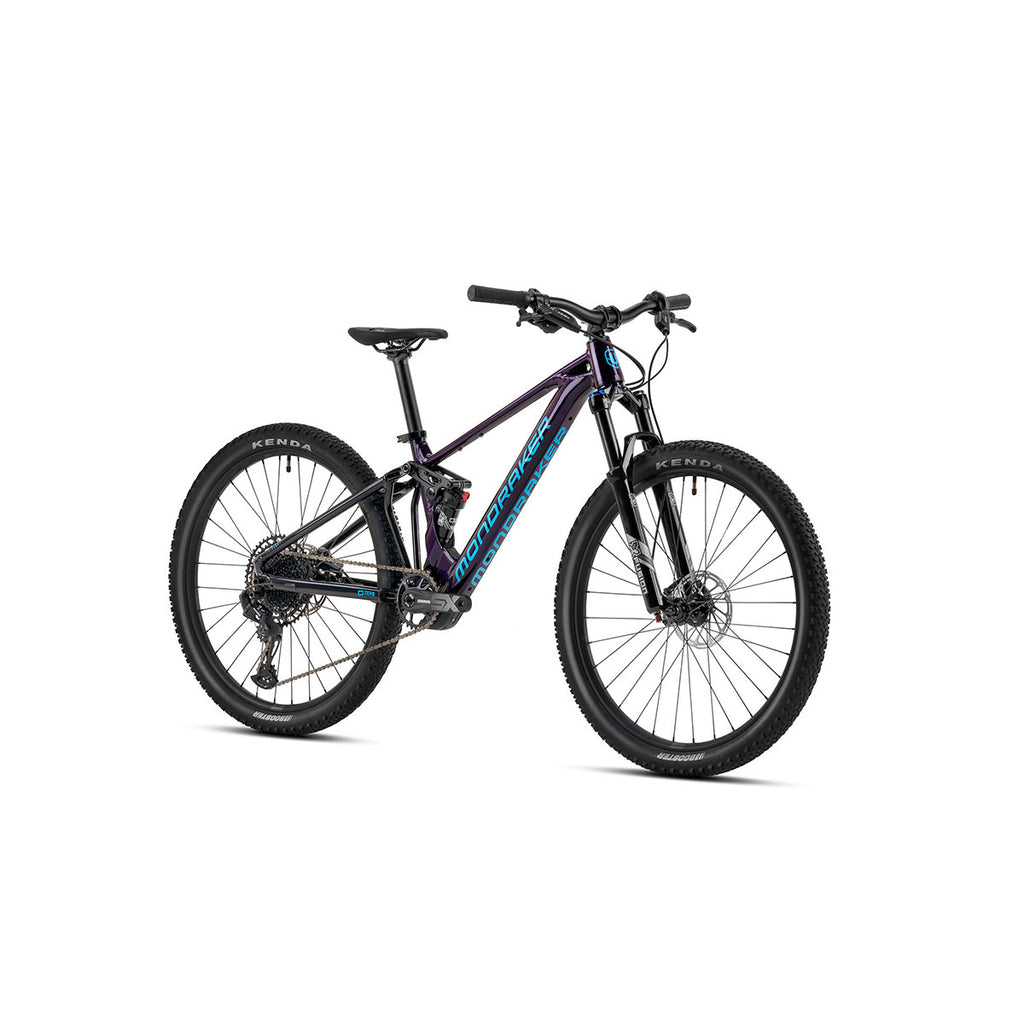

Young bikers can now experience the thrills of mountain biking with F-PLAY 26! This kids’ sports E-bike is packed with mountain bike features tailored towards children who want to get started on trail-shredding rides.
Unleash the power of the Mahle-Ebikemotion X-35 motor, backed by an integrated Mahle-Ebikemotion Internal 250Wh battery, both seamlessly concealed inside a durable stealth alloy frame to handle the rigors of mountain bike riding.
Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Young racers will love the safety and confidence offered by Mondraker’s modern geometry that helps with improved handling, overall control, uphill precision, and stability in tough terrains.
The durable stealth alloy frame helps with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
F-Play 26 sports high-performance rear derailleurs, hydroformed tubing, and 26” tires, for ultimate precision and grip through uneven and rough trails. Young riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes. One-piece bolt-on upper link offers better lateral and torsional stiffness to reduce lateral stress on the shock action.
F-Play 26 is loaded with a dedicated 1X drivetrain compatible design for better traction and momentum. This kid bike is designed to suit young riders, with a junior handlebar, grips, and saddle. Riding stats are just a few clicks away on the Mahle-Ebikemotion display, easily accessible on the handlebar, without getting distracted from the track.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
F-Play 26 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible |
|
SIZES |
One size: 350mm |
|
REAR SHOCK |
X-Fusion 02PRO R, 210x55mm. Settings: low-speed rebound, air preload. 45x8mm top andbottom bushings |
|
SHOCK SETTINGS |
A-Tune light compression |
|
FORK |
X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 9x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload |
|
HEADSET |
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
|
STEM |
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
|
HANDLEBAR |
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
|
GRIPS |
Onoff Twin, 1lock-on |
|
SEATPOST |
MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 350mm |
|
SADDLE |
SDG Fly JR |
|
FRONT BRAKE |
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
|
REAR BRAKE |
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
|
BRAKE LEVER |
Sram Level, tooled reach adjust, lever pivot bushings |
|
RIMS |
MDK-XP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes |
|
SPOKES |
CN round stainless steel |
|
FRONT HUB |
Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts |
|
REAR HUB |
Mahle-Ebikemotion X-35 |
|
FRONT TIRE |
Kenda Booster 26x2.4 single compound 30TPI, wire bead |
|
REAR TIRE |
Kenda Booster 26x2.4 single compound 30TPI, wire bead |
|
CRANKSET |
Sram SX Eagle, DUB axle, Direct mount chain ring, 155mm |
|
RINGS |
30T, steel, X-Sync |
|
BOTTOM BRACKET |
Sram DUB BSA, sealed bearings, 73mm |
|
PEDALS |
- |
|
CHAIN |
Sram SX Eagle, 12s, Powerlock |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
|
SHIFT LEVERS |
Sram Trigger SX Eagle, 12s, X-Actuation 1:1 |
|
CASSETTE |
Sram XG-1230, 11-50T, 12s |
|
MOTOR |
Mahle-Ebikemotion X-35 |
|
BATTERY |
Mahle-Ebikemotion Internal 250Wh |
|
DISPLAY |
Mahle-Ebikemotion |
|
DERAILLEUR HANGER |
Mondraker M073 |
|
OTHERS |
- |
|
WEIGHT |
- |
GEOMETRY
MEASUREMENTS / GEOMETRY (Click on image to expand)
|
Size |
26 |
|
|
A |
Seat Tube Length |
350 mm |
|
B |
Top Tube Length |
550 mm |
|
C |
Bottom Bracket Drop |
-10 mm |
|
D |
Bottom Bracket Height |
320 mm |
|
E |
Chainstay Length |
420 mm |
|
F |
Seat Tube Angle, Actual |
71º |
|
G |
Seat Tube Angle, Effective |
76º |
|
H |
Head Tube Angle |
67º |
|
I |
Fork Offset |
39 mm |
|
J |
Wheelbase |
1104 mm |
|
K |
Head Tube Length |
90 mm |
|
L |
Reach |
415 mm |
|
M |
Stack |
545 mm |
RESOURCES
SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
