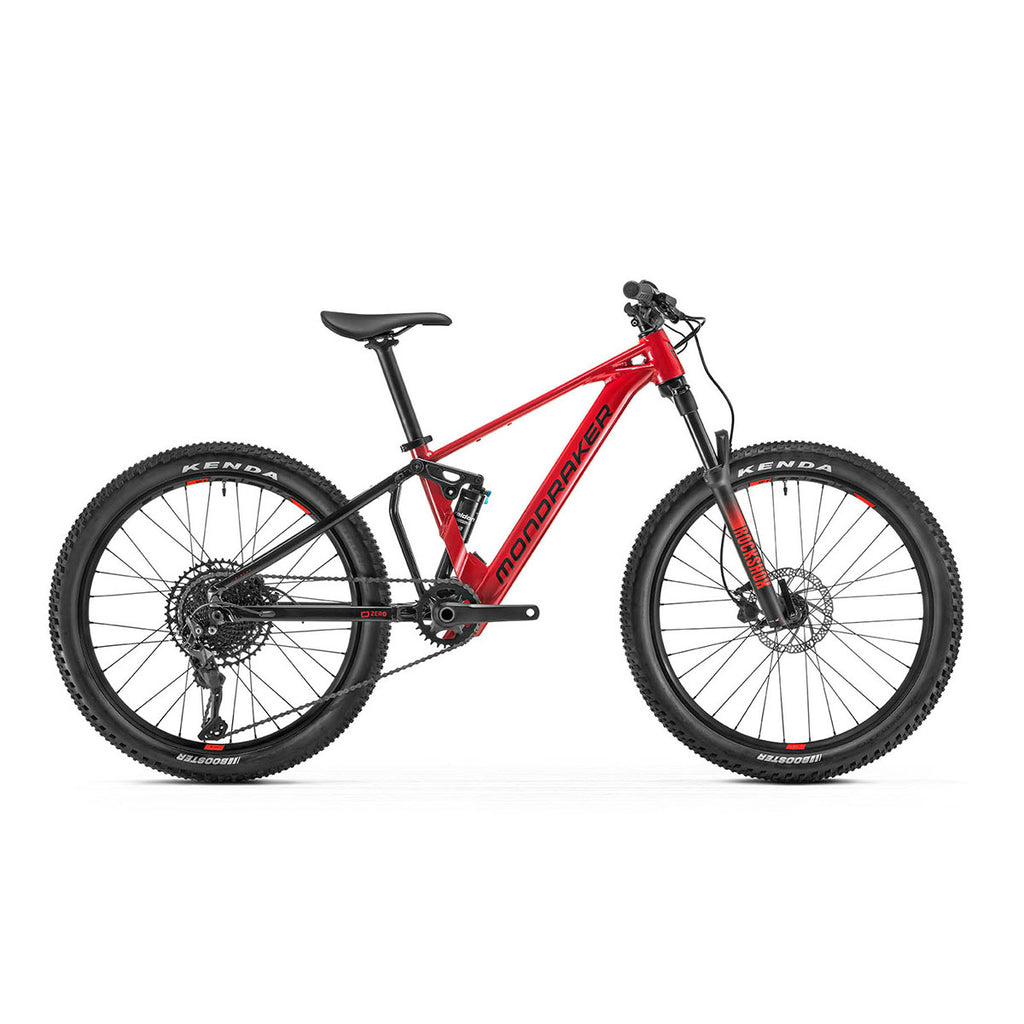

Mondraker - F-PLAY 24 Bike - Cherry Red-Black (e-KIDS | 2022)

MOND-B-Fplay-24-Red22-XS

  • Sale
  • Regular price $3,999.00


PLEASE CALL US AT 805-850-3200 TO PLACE YOUR ORDER


NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.

DESCRIPTION

Size: One size 300 mm
Colors: Gloss Cherry Red / Black

Young bikers can now experience the thrills of mountain biking with F-PLAY 24! This kids’ sports E-bike is packed with mountain bike features tailored towards children who want to get started on trail-shredding rides.

Unleash the power of the Mahle-Ebikemotion X-35 motor, backed by an integrated Mahle-Ebikemotion Internal 250Wh battery, both seamlessly concealed inside a durable stealth alloy frame to handle the rigors of mountain bike riding.

Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

Young racers will love the safety and confidence offered by Mondraker’s modern geometry that helps with improved handling, overall control, uphill precision, and stability in tough terrains.

The durable stealth alloy frame helps with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.

F-Play 24 sports high-performance rear derailleurs, hydroformed tubing, and 24” tires, for ultimate precision and grip through uneven and rough trails. Young riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes. One-piece bolt-on upper link offers better lateral and torsional stiffness to reduce lateral stress on the shock action.

F-Play 24 is loaded with a dedicated 1X drivetrain compatible design for better traction and momentum. This kid bike is designed to suit young riders, with a junior handlebar, grips, and saddle. Riding stats are just a few clicks away on the Mahle-Ebikemotion display, easily accessible on the handlebar, without getting distracted from the track.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME

F-Play 24 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible

SIZES

One size: 300mm

REAR SHOCK

X-Fusion 02PRO R, 210x47.5mm. Settings: low-speed rebound, air preload. 45x8mm top and bottom bushings

SHOCK SETTINGS

-

FORK

RockShox Judy Silver TK 26, 100mm, TurnKey, Solo Air, tapered steerer tube, 9x100mm axle, 30mm steel stanchions, 40mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

HEADSET

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°,bottom 51.9x40x8x45°x45°

STEM

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

HANDLEBAR

MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore

GRIPS

Onoff Twin, 1lock-on, 135mm

SEATPOST

MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 300mm

SADDLE

SDG Fly JR

FRONT BRAKE

Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

REAR BRAKE

Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

BRAKE LEVER

Sram Level, tooled reach adjust, lever pivot bushings

RIMS

MDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes

SPOKES

CN round stainless steel

FRONT HUB

Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts

REAR HUB

Mahle-Ebikemotion X-35

FRONT TIRE

Kenda Booster 24x2.4 single compound 30TPI, wire bead

REAR TIRE

Kenda Booster 24x2.4 single compound 30TPI, wire bead

CRANKSET

Prowheel, Direct mount chain ring, 150mm

RINGS

30T, steel

BOTTOM BRACKET

Samox BSA, 73mm

PEDALS

-

CHAIN

Sram PC1031 10s, Powerlock

FRONT DERAILLEUR

-

REAR DERAILLEUR

Sram GX, 10s, short cage, X-actuation 1:1

SHIFT LEVERS

Sram trigger GX 10s, X-actuation 1:1

CASSETTE

Sram PG 1020 11-36T, 10s

MOTOR

Mahle-Ebikemotion X-35

BATTERY

Mahle-Ebikemotion Internal 250Wh

DISPLAY

Mahle-Ebikemotion

DERAILLEUR HANGER

Mondraker M073

OTHERS

-

WEIGHT

-



GEOMETRY

MEASUREMENTS / GEOMETRY (Click on image to expand)

Mondraker F Play 24 Kids Bike 2021

Size

24

A

Seat Tube Length

320 mm

B

Top Tube Length

525 mm

C

Bottom Bracket Drop

-10 mm

D

Bottom Bracket Height

295 mm

E

Chainstay Length

420 mm

F

Seat Tube Angle, Actual

71º

G

Seat Tube Angle, Effective

76º

H

Head Tube Angle

67º

I

Fork Offset

39 mm

J

Wheelbase

1050 mm

K

Head Tube Length

90 mm

L

Reach

375 mm

M

Stack

513 mm

RESOURCES

Bike Size Guide (Click on image to zoom in)

Specs for all 2022 Bikes (Click to open in new window). Or download using the viewer below
