DESCRIPTION
Sizes: S: 440mm / M: 460mm / L: 500mm / XL: 530mm
Colors: Frost Green / Cherry Red / Carbon

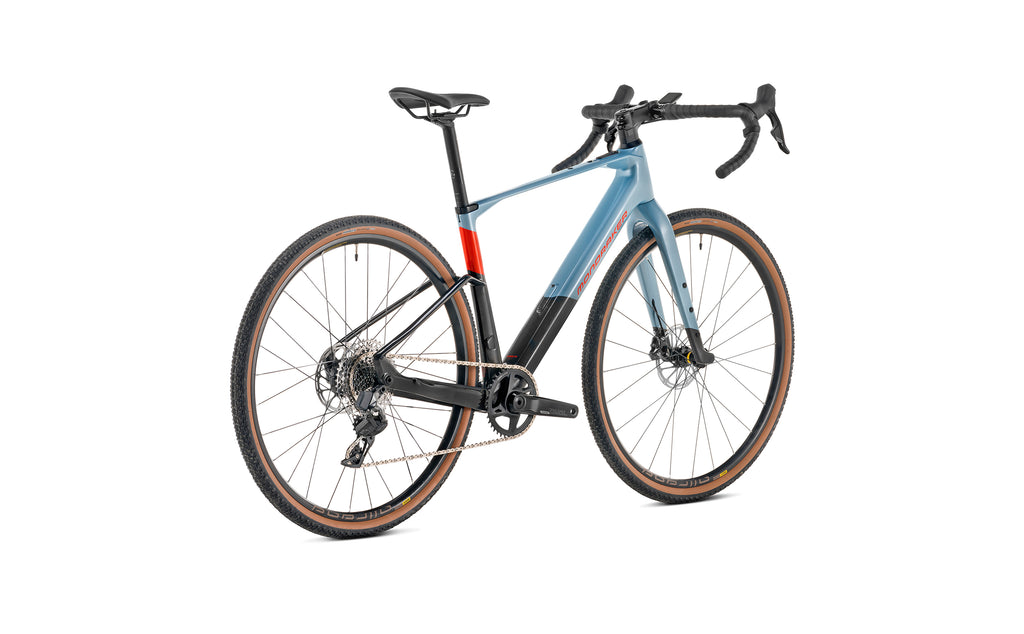

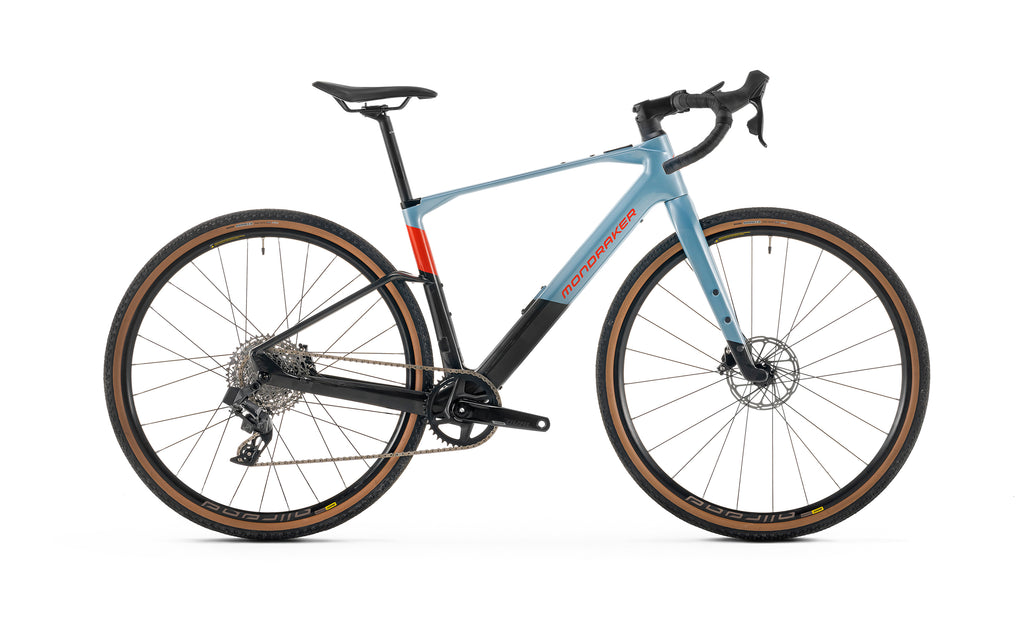

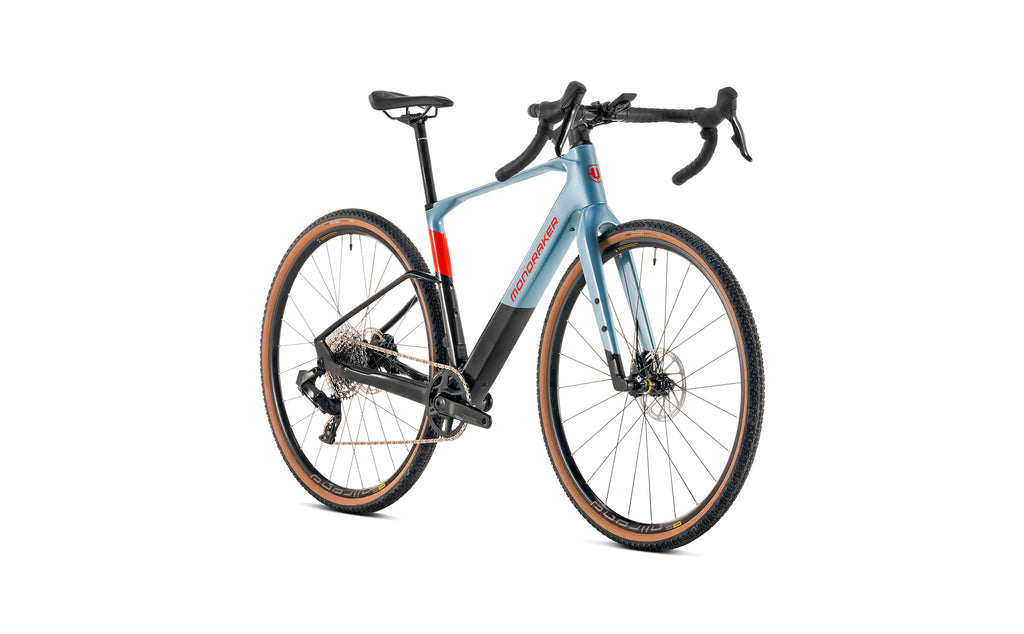

DUSTY RR comes equipped with an SRAM RIVAL ETAP 1x12 drivetrain, Mavic Allroad Disc wheels, 40mm Maxxis Rambler EXO tires and ONOFF components.
With gravel bike specific geometry and the philosophy that sets Mondraker apart from the rest, the DUSTY comes with that extra bit of fun that a motor brings to the mix so you can take your DUSTY down trails where logic tells you that you really shouldn’t.
That’s why Dusty R has the Mahle X20 system, complete with its internal 350Wh battery. It’s the lightest and most sophisticated system in its class, and the integration is so on point it’ll be difficult for you to tell it’s electric.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
Dusty Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor. |
|
SIZES |
S: 440mm / M: 460mm / L: 500mm / XL: 530mm |
|
FORK |
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork |
|
HEADSET |
OnOff gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
|
STEM |
OnOff gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S: 70mm M: 70mm, L: 80mm, XL: 90mm |
|
HANDLEBAR |
OnOff Barium gravel 18º bar flare. Width sizes S/M: 440mm, size L/XL: 460mm |
|
GRIPS |
Barium gravel dark grey |
|
SEATPOST |
OnOff Barium gravel carbon microadjust diameter 27.2mm, length 400mm |
|
SADDLE |
|
|
FRONT BRAKE |
Sram Rival Etap AXS 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
|
REAR BRAKE |
Sram Rival Etap AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
|
BRAKE LEVER |
Sram Rival, contact point adjustment, tooled reach adjust, plastic levers |
|
RIMS |
Mavic Allroad Disc, UST, 22mm internal width, hookless, 24 spokes |
|
SPOKES |
Mavic Steel double butted flat spokes |
|
FRONT HUB |
Mavic, 12x100mm, IS 6 bolts |
|
REAR HUB |
Mahle X20 Drive Unit, XDR freehub |
|
FRONT TIRE |
Maxxis Rambler 700x40, tubeless ready, dual compound EXO protection, 60 TPI, folding bead, tan wall |
|
REAR TIRE |
Maxxis Rambler 700x40, tubeless ready, dual compound EXO protection, 60 TPI, folding bead, tan wall |
|
CRANKSET |
Sram Rival 1 GLS DUB Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm. |
|
RINGS |
Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide, |
|
BOTTOM BRACKET |
Mahle pressfit, sealed bearings, w/ torque sensor |
|
PEDALS |
- |
|
CHAIN |
Sram Rival, 12s, Powerlock |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Sram Rival XPLR Etap AXS, 12s |
|
SHIFT LEVERS |
Sram Rival Etap AXS 12s |
|
CASSETTE |
Sram XG-1251 10-44T, 12s |
|
MOTOR |
Mahle X20 Drive Unit |
|
BATTERY |
Mahle X20 IX350Wh |
|
DISPLAY |
Pulsar One Wireless |
|
DERAILLEUR HANGER |
- |
|
OTHERS |
*Optional range extender: Mahle e185 , 172Wh |
|
WEIGHT |
13.1 kg |
GEOMETRY
MEASUREMENTS / GEOMETRY(Click on image to expand)
|
Size |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
440 mm |
460 mm |
500 mm |
530 mm |
|
B |
Top Tube Length |
550 mm |
570 mm |
595 mm |
620 mm |
|
C |
Bottom Bracket Drop |
70 mm |
70 mm |
70 mm |
70 mm |
|
D |
Bottom Bracket Height |
286 mm |
286 mm |
286 mm |
286 mm |
|
E |
Chainstay Length |
425 mm |
425 mm |
425 mm |
425 mm |
|
F |
Seat Tube Angle, Actual |
74º |
74º |
74º |
74º |
|
G |
Seat Tube Angle, Effective |
74º |
74º |
74º |
74º |
|
H |
Head Tube Angle |
70º |
70º |
70º |
70º |
|
I |
Fork Offset |
45 mm |
45 mm |
45 mm |
45 mm |
|
J |
Wheelbase |
1034 mm |
1056 mm |
1082 mm |
1110 mm |
|
K |
Head Tube Length |
125 mm |
150 mm |
175 mm |
210 mm |
|
L |
Reach |
393 m |
405 mm |
424 mm |
440 mm |
|
M |
Stack |
548 mm |
576 mm |
595 mm |
628 mm |
| N | Stem Length | 60 mm | 60 mm | 70 mm | 80 mm |
| O | Fork Height | 420 mm | 420 mm | 420 mm | 420 mm |
RESOURCES
SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
