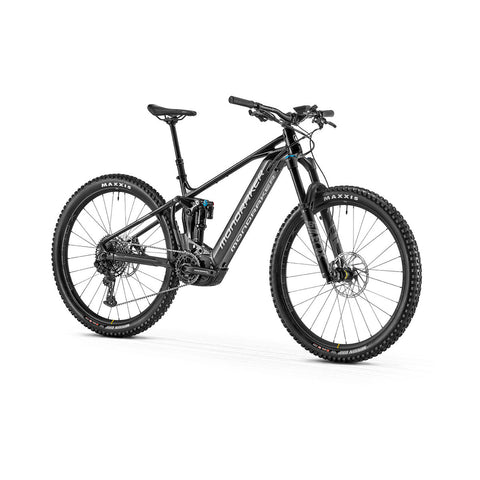

Mondraker - CRAFTY R 29 Bike - Black-Graphite (e-MTB ENDURO | 2022)

MOND-B-Craf-R29-Graphite22-L

  • Sale
  • Regular price $8,499.00


PLEASE CALL US AT 805-850-3200 TO PLACE YOUR ORDER


NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.

DESCRIPTION

Get ready to experience the thrill with the Crafty R e-MTB bike designed for enduro, trail and all-mountain riding! The top-end emountain bike with updated suspension kinematics is a beauty. eBike optimized zero suspension uses large bearings on a one-piece monoblock link for extreme bump absorption for plusher rides.

Unleash the power of the upgraded Bosch Performance Line CX GEN4 engine, backed by an integrated 750 Wh Power Tube battery, both seamlessly concealed inside a durable frame to handle the rigors of mountain bike riding. Upgrades also include a new display unit and handlebar mounted control module. Bosch smart eBike system consisting of eBike Flow app, control unit, display, batter, and drive unit offers a customized bike experience for users.

2022 Upgrades

  • Performance Line CX is sporty and economical and offers the benefits of increased torque for eMountain biking, intuitive handling for switching between riding modes, maximum agility on rigorous trails, and riding modes for personalized ride management.
  • Powertube 750 provides a reliable power source for extended driving distances.
  • LED Remote acts as a fully connected control center for optimal readability, smart connectivity, smart walk assist, ergonomic handling, and sustainability on the move.
  • KIOX 300 display supports fun features, easy to read, sleek design, positioning flexibility, and helpful support.
  • eBike Flow App helps with personalizing your ride with enhancement features, recording activities, customization of riding modes, and other upgraded features.

Zero Suspension: Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

Stealth Alloy Frame: The compact and lighter engine design and stealth alloy frame help with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.

Forward Geometry: High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.

Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm

Color Choices: Gloss Black / Graphite
Also available in Gloss Black / Cherry Red

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME

Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery with integrated alloy cover, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

SIZES

S: 380mm / M: 420mm / L: 450mm / XL: 490mm

REAR SHOCK

Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

SHOCK SETTINGS

Medium compression, medium rebound, air volume spacer 0.2

FORK

Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

HEADSET

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°

STEM

Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore

HANDLEBAR

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore

GRIPS

Onoff Diamond, 1lock-on, 135mm

SEATPOST

Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm

SADDLE

Fizik Terra Aidon X5 145mm

FRONT BRAKE

Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

REAR BRAKE

Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

BRAKE LEVER

Sram G2 R, tool-free reach adjust

RIMS

Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

SPOKES

Mavic J-bend duble butted, contactless lacing

FRONT HUB

Mavic, Boost 15x110mm, IS 6 bolts

REAR HUB

Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts

FRONT TIRE

Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

REAR TIRE

Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

CRANKSET

Race Face Aeffect ebike, 165mm

RINGS

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

BOTTOM BRACKET

-

PEDALS

-

CHAIN

Sram SX Eagle, 12s, Powerlock

FRONT DERAILLEUR

-

REAR DERAILLEUR

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

SHIFT LEVERS

Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click

CASSETTE

Sram PG-1210, 11-50T, 12s

MOTOR

Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3

BATTERY

Bosch Powertube 750Wh

DISPLAY

Bosch Kiox 300

DERAILLEUR HANGER

Mondraker M068

OTHERS

-

WEIGHT

-



GEOMETRY

MEASUREMENTS / GEOMETRY(Click on image to expand)

Mondraker Crafty R 2021 Geometry

Size

S

M

L

XL

A

Seat Tube Length

380 mm

420 mm

450 mm

490 mm

B

Top Tube Length

605 mm

625 mm

650 mm

670 mm

C

Bottom Bracket Drop

-25 mm

-25 mm

-25 mm

-25 mm

D

Bottom Bracket Height

350 mm

350 mm

350 mm

350 mm

E

Chainstay Length

455 mm

455 mm

455 mm

455 mm

F

Seat Tube Angle, Actual

73.5°

73.5°

73.5°

73.5°

G

Seat Tube Angle, Effective

76°

76°

76°

76°

H

Head Tube Angle

65.5°

65.5°

65.5°

65.5°

I

Fork Offset

44 mm

44 mm

44 mm

44 mm

J

Wheelbase

1225 mm

1245 mm

1265 mm

1285 mm

K

Head Tube Length

110 mm

110 mm

130 mm

130 mm

L

Reach

450 mm

470 mm

490 mm

510 mm

M

Stack

622 mm

622 mm

640 mm

640 mm



RESOURCES

Bike Size Guide (Click on image to zoom in)

Specs for all 2022 e-Bikes with Bosch Smart system (Click to open in new window). Or download using the viewer below

Crafty R Suspension Setup (Click to open in new window). Or download using the viewer below
