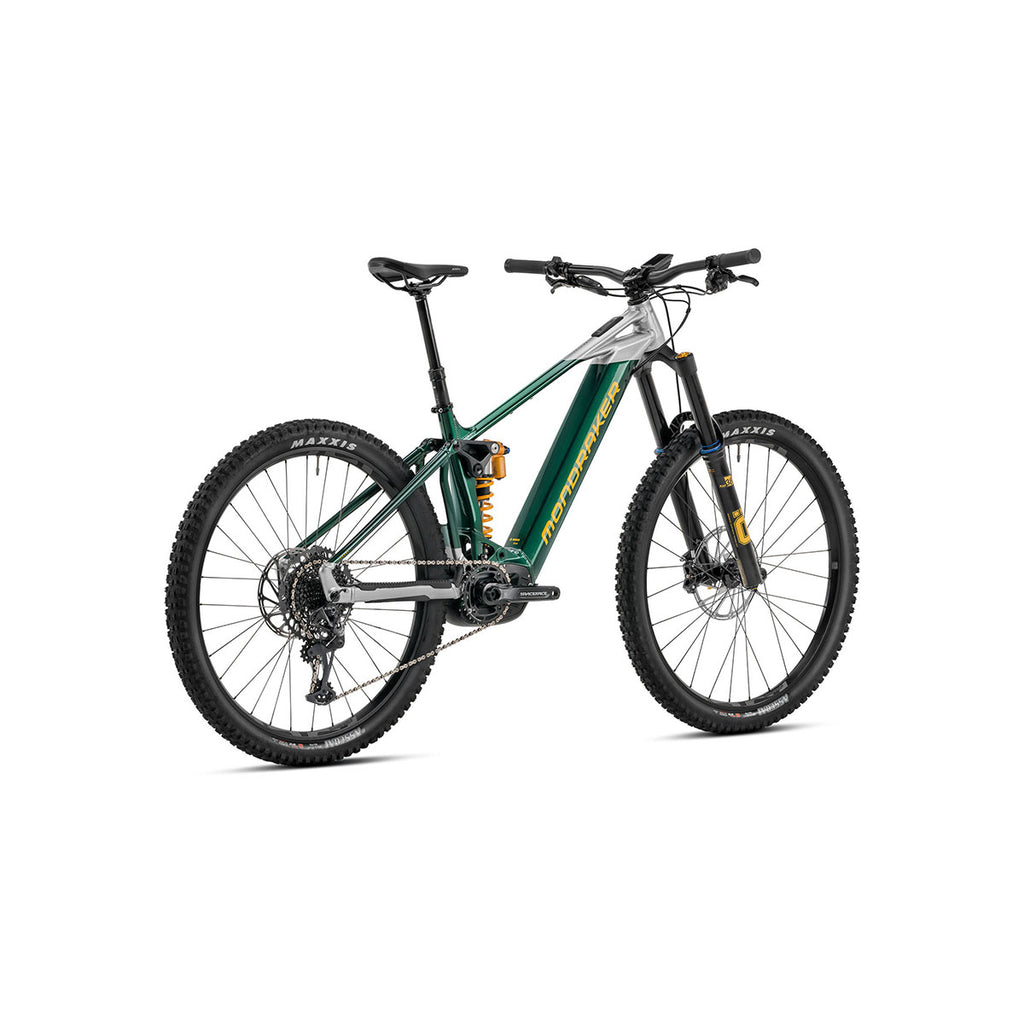

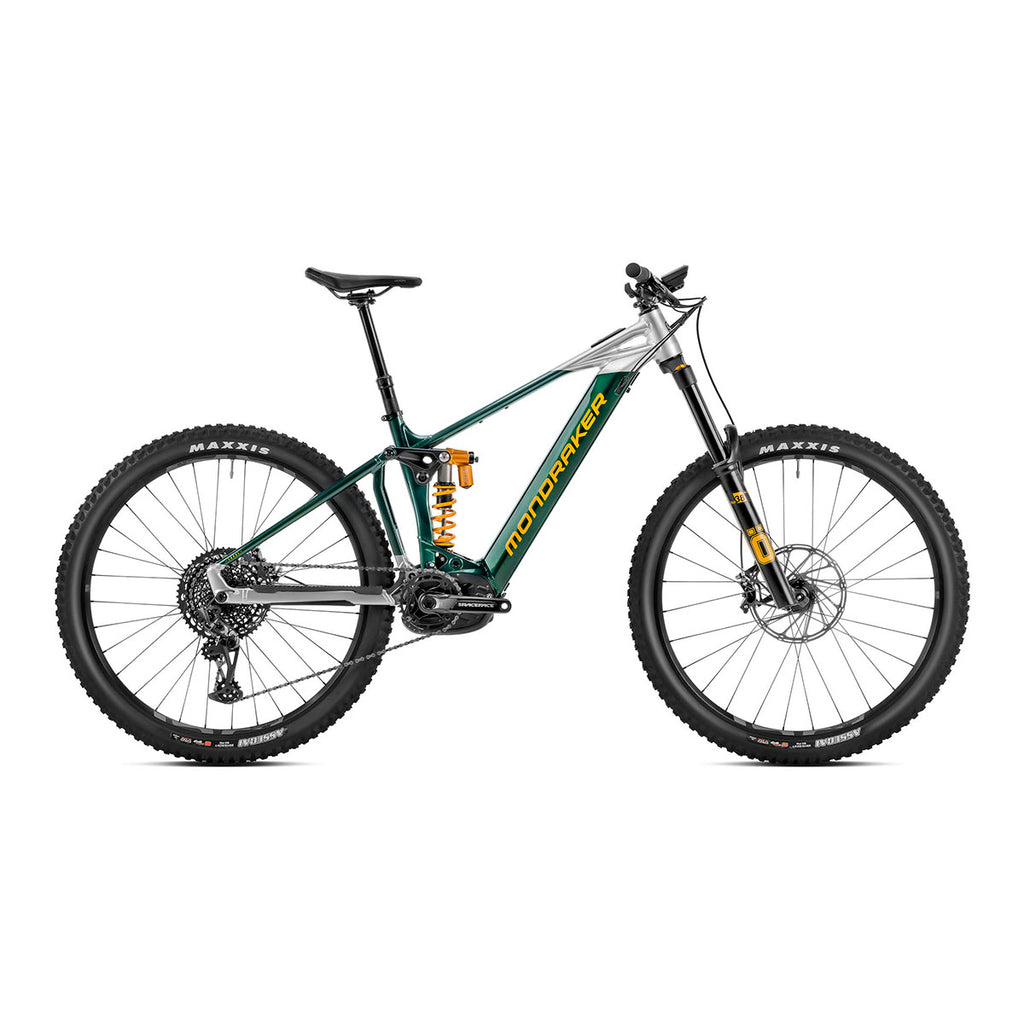

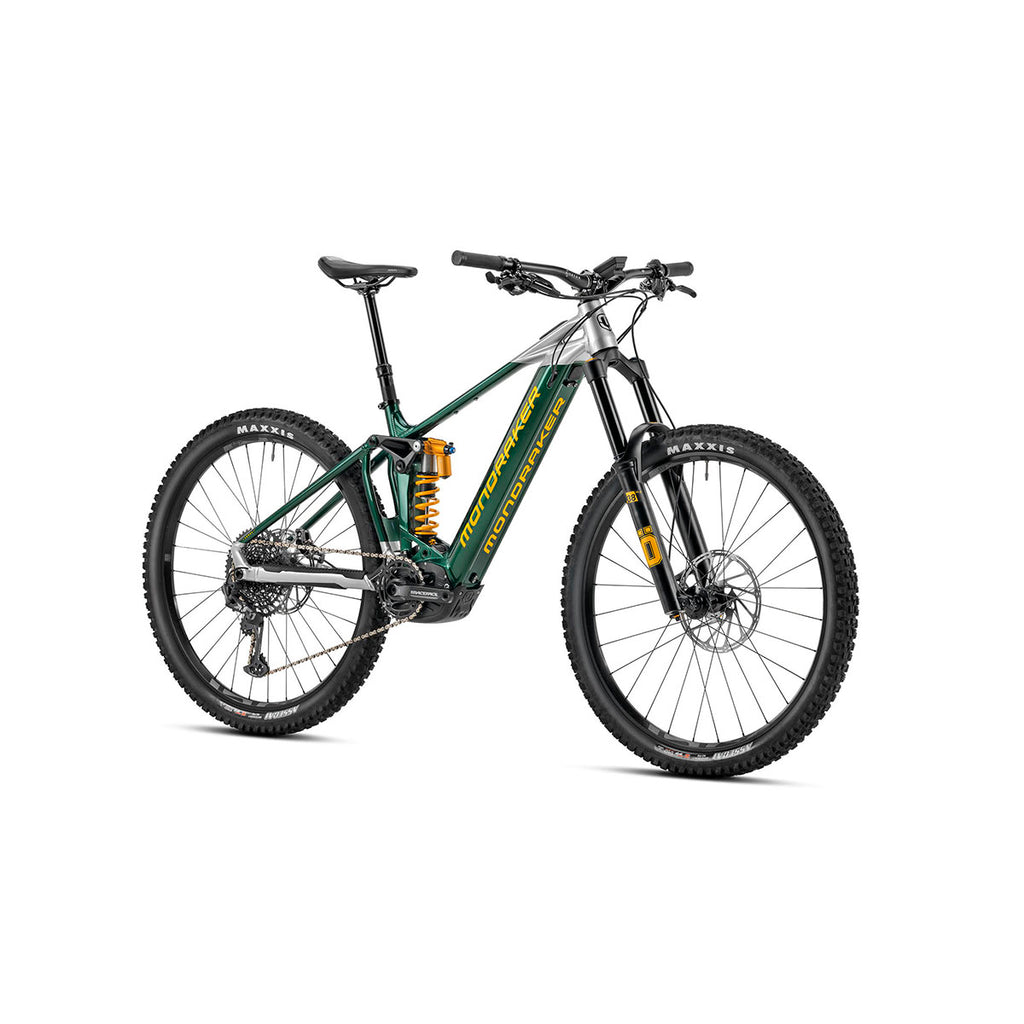

Mondraker - LEVEL XR Bike - Green/Silver/Yellow (e-MTB SUPER ENDURO/AM | 2023)

MOND-B-Level-XR-Green23-S

  • Sale
  • $11,999.00
  • Regular price $12,399.00
Shipping calculated at checkout.


Pre-Orders available at (805) 850-3200 or info@zeitbike.com


NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.

DESCRIPTION

SizesS: 380mm / M: 420mm / L: 450mm / XL: 490mm
Colors: Gloss British Racing Green / Racing Silver / Yellow

Get ready to experience the thrill with the Level XR e-MTB bike designed for super enduro, trail and all-mountain riding! The top-end emountain bike with longer travel is a beauty. eBike optimized zero suspension uses large bearings on a one-piece monoblock link for extreme bump absorption for plusher rides.

Unleash the power of the upgraded Bosch Performance Line CX GEN4 engine, backed by an integrated 750 Wh Power Tube battery, both seamlessly concealed inside a durable frame to handle the rigors of mountain bike riding. Upgrades also include a new display unit and handlebar mounted control module. Bosch smart eBike system consisting of eBike Flow app, control unit, display, batter, and drive unit offers a customized bike experience for users.

    Zero Suspension: Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

    Stealth Alloy Frame: The compact and lighter engine design and stealth alloy frame help with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.

    Forward Geometry: High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.

    SPECS

    COMPONENTS / TECHNICAL SPECIFICATIONS

    FRAME

    Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers

    SIZES

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

    REAR SHOCK

    Öhlins TTX22M 225x75mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings

    SHOCK SETTINGS

    C10 compression, R35 rebound. Spring rate: S size 251 lbs, M size 297 lbs, L size 343 lbs, XL size 411 lbs

    FORK

    Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

    HEADSET

    ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

    STEM

    ONOFF Krypton FG 30mm, CNC, 31.8mm barbore

    HANDLEBAR

    ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

    GRIPS

    ONOFF Desert, 1lock-on, 135mm

    SEATPOST

    ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

    SADDLE

    FIZIK Terra Aidon X5 145mm

    FRONT BRAKE

    Sram Code RSC, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    REAR BRAKE

    Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    BRAKE LEVER

    Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

    RIMS

    e*thirteen E*Spec Plus, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes

    SPOKES

    e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

    FRONT HUB

    e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

    REAR HUB

    e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts

    FRONT TIRE

    Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

    REAR TIRE

    Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

    CRANKSET

    Race Face Aeffect ebike, 165mm

    RINGS

    Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

    BOTTOM BRACKET

    -

    PEDALS

    -

    CHAIN

    Sram SX Eagle, 12s, Powerlock

    FRONT DERAILLEUR

    -

    REAR DERAILLEUR

    Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

    SHIFT LEVERS

    Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click

    CASSETTE

    Sram XG-1275, 10-52T, 12s

    MOTOR

    Bosch Performance Line CX Cruise (25Km/h) Smart System

    BATTERY

    Bosch Powertube 750Wh

    DISPLAY

    Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller

    DERAILLEUR HANGER

    Mondraker M068

    OTHERS

    -

    WEIGHT

    -



    DIMENSIONS

    MEASUREMENTS / GEOMETRY

    Mondraker Level R Bike 2022

    Size

    S

    M

    L

    XL

    A

    Seat Tube Length

    380 mm

    420 mm

    450 mm

    490 mm

    B

    Top Tube Length

    602 mm

    622 mm

    647 mm

    667 mm

    C

    Bottom Bracket Drop

    -15 mm

    -15 mm

    -15 mm

    -15 mm

    D

    Bottom Bracket Height

    357 mm

    357 mm

    357 mm

    357 mm

    E

    Chainstay Length

    455 mm

    455 mm

    455 mm

    455 mm

    F

    Seat Tube Angle, Actual

    73.5°

    73.5°

    73.5°

    73.5°

    G

    Seat Tube Angle, Effective

    76.5°

    76.5°

    76.5°

    76.5°

    H

    Head Tube Angle

    65°

    65°

    65°

    65°

    I

    Fork Offset

    44 mm

    44 mm

    44 mm

    44 mm

    J

    Wheelbase

    1250 mm

    1270 mm

    1290 mm

    1310 mm

    K

    Head Tube Length

    110 mm

    110 mm

    130 mm

    130 mm

    L

    Reach

    450 mm

    470 mm

    490 mm

    510 mm

    M

    Stack

    632 mm

    632 mm

    652 mm

    652 mm
