DESCRIPTION
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Colors: Matte Desert Grey / Graphite / Orange

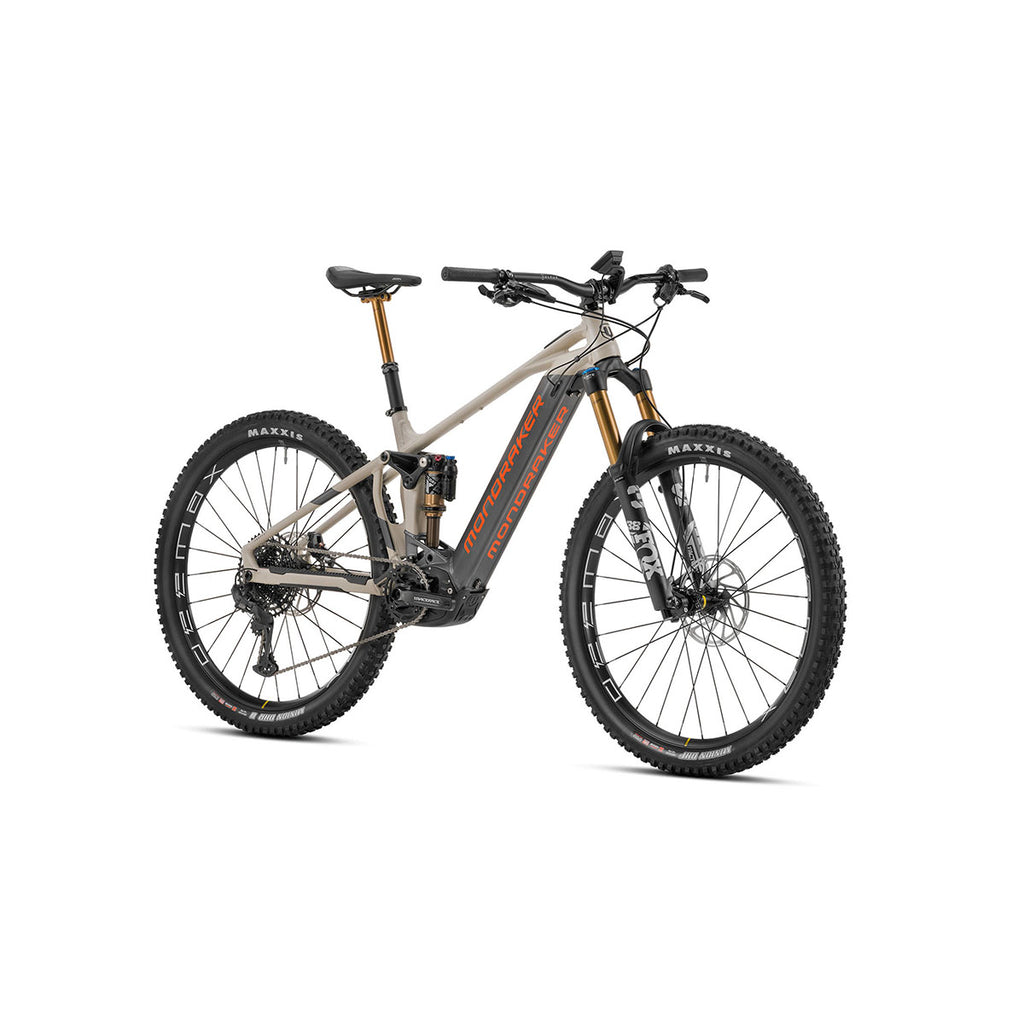

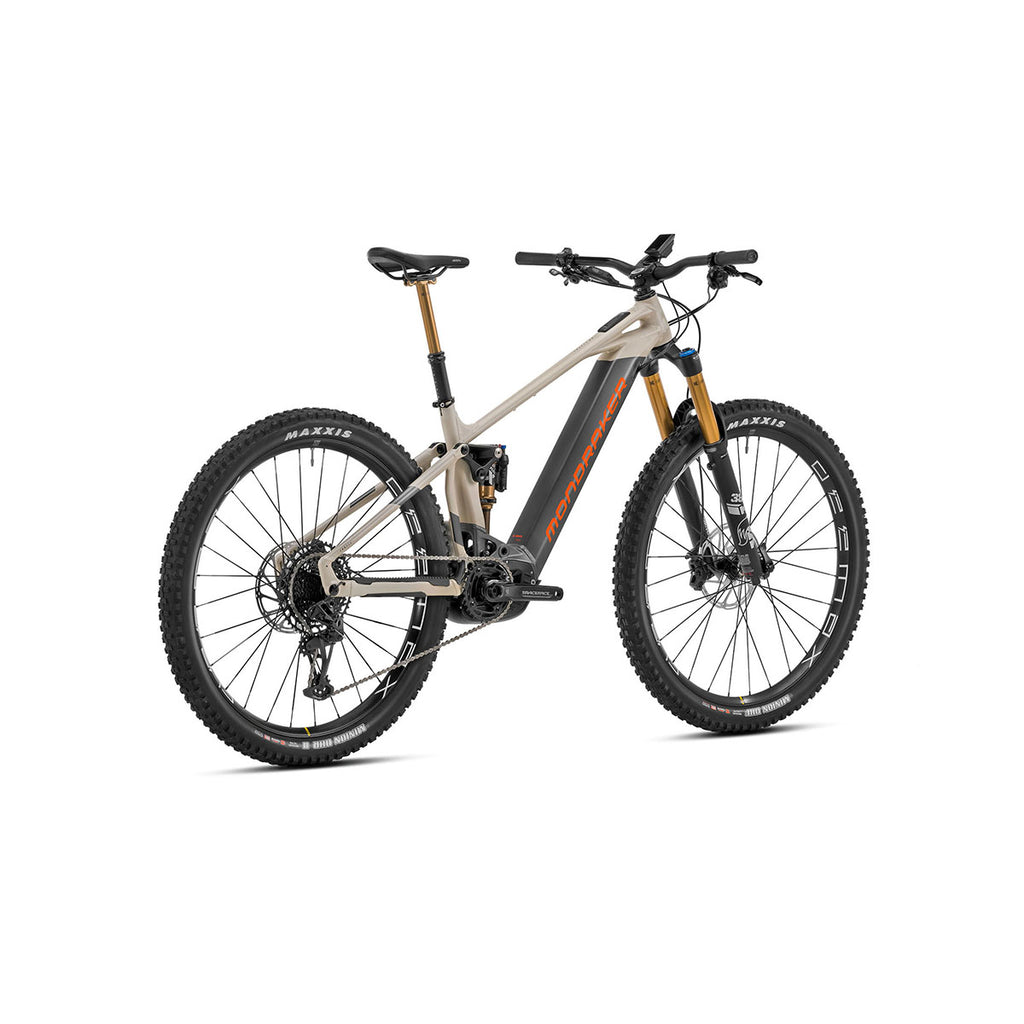

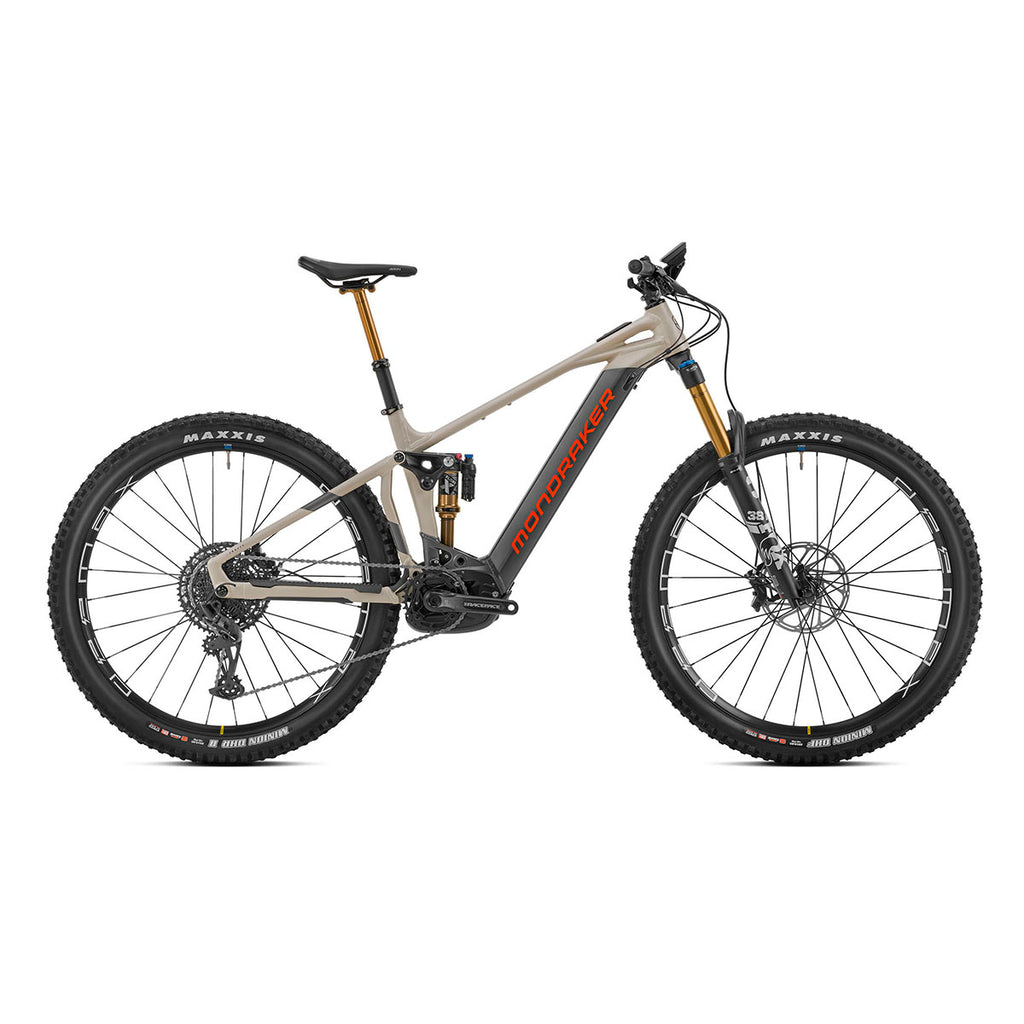

Get ready to experience the thrill with the Crafty Carbon RR e-MTB bike designed for enduro, trail and all-mountain riding! The high-end bike boasts updated suspension kinematics and amazing pedaling efficiency. eBike optimized zero suspension uses large bearings on a one-piece monoblock link for extreme bump absorption for plusher rides.
Unleash the power of the upgraded Bosch Performance Line CX engine, backed by an integrated 750 Wh Power Tube battery, both seamlessly concealed inside a durable frame to handle the rigors of mountain bike riding. Upgrades also include a new display unit and handlebar mounted control module. Bosch smart eBike system consisting of eBike Flow app, control unit, display, batter, and drive unit offers a customized bike experience for users.
Zero Suspension: Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Stealth Alloy Frame: The compact and lighter engine design and stealth alloy frame help with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
Forward Geometry: High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
|
SIZES |
S: 380mm / M: 420mm / L: 450mm / XL: 490mm |
|
REAR SHOCK |
Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
|
SHOCK SETTINGS |
Medium compression, Medium rebound, 0.2 volume spacer |
|
FORK |
Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high and low-speed compression, high and low-speed rebound, air preload |
|
HEADSET |
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
|
STEM |
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
|
HANDLEBAR |
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
|
GRIPS |
Onoff Desert, 1lock-on, 135mm |
|
SEATPOST |
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x175mm |
|
SADDLE |
Fizik Terra Aidon X5 145mm |
|
FRONT BRAKE |
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
|
REAR BRAKE |
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
|
BRAKE LEVER |
Sram Code R, tool-free reach adjust |
|
RIMS |
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes |
|
SPOKES |
Mavic straightpull double butted, contactless lacing |
|
FRONT HUB |
Mavic, Boost 15x110mm, IS 6 bolts |
|
REAR HUB |
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub |
|
FRONT TIRE |
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
|
REAR TIRE |
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
|
CRANKSET |
Race Face Aeect ebike, 165mm |
|
RINGS |
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
|
BOTTOM BRACKET |
- |
|
PEDALS |
- |
|
CHAIN |
Sram NX Eagle, 12s, Powerlock |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
|
SHIFT LEVERS |
Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
|
CASSETTE |
Sram XG-1230, 11-50T, 12s |
|
MOTOR |
Bosch Performance Line CX Cruise (25Km/h) Smart System |
|
BATTERY |
Bosch Powertube 750Wh |
|
DISPLAY |
Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller |
|
DERAILLEUR HANGER |
Mondraker M068 |
|
OTHERS |
- |
|
WEIGHT |
25.5kg |
GEOMETRY
MEASUREMENTS / GEOMETRY(Click on image to expand)
|
Size |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
380 mm |
420 mm |
450 mm |
480 mm |
|
B |
Top Tube Length |
605 mm |
625 mm |
650 mm |
670 mm |
|
C |
Bottom Bracket Drop |
-25 mm |
-25 mm |
-25 mm |
-25 mm |
|
D |
Bottom Bracket Height |
350 mm |
350 mm |
350 mm |
350 mm |
|
E |
Chainstay Length |
455 mm |
455 mm |
455 mm |
455 mm |
|
F |
Seat Tube Angle, Actual |
73.5° |
73.5° |
73.5° |
73. 5° |
|
G |
Seat Tube Angle, Effective |
76° |
76° |
76° |
76° |
|
H |
Head Tube Angle |
65.5° |
65.5° |
65.5° |
65.5° |
|
I |
Fork Offset |
44 mm |
44 mm |
44 mm |
44 mm |
|
J |
Wheelbase |
1225 mm |
1245 mm |
1265 mm |
1285 mm |
|
K |
Head Tube Length |
110 mm |
110 mm |
130 mm |
130 mm |
|
L |
Reach |
450 mm |
470 mm |
490 mm |
510 mm |
|
M |
Stack |
622 mm |
622 mm |
640 mm |
640 mm |
RESOURCES
SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
